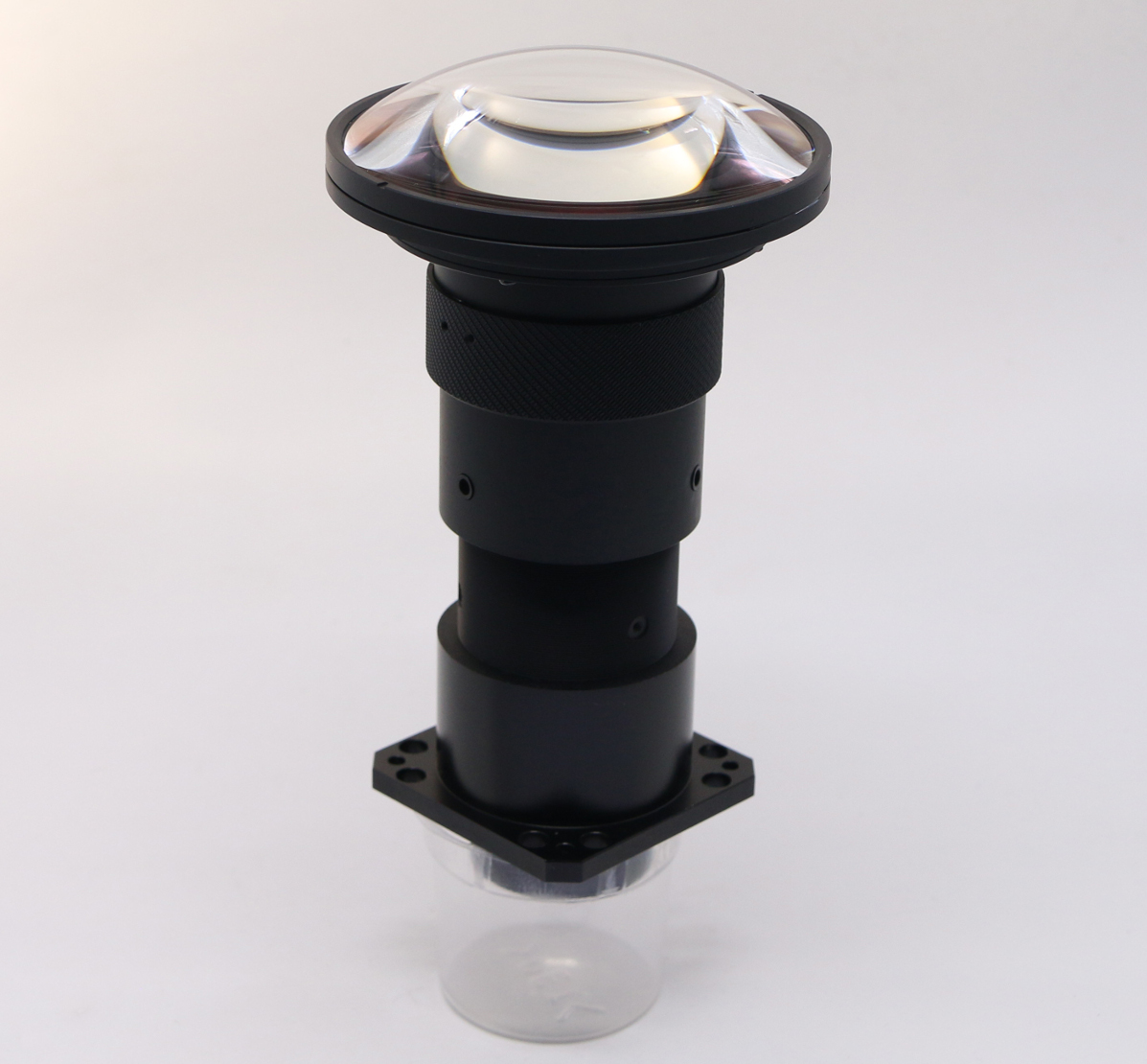

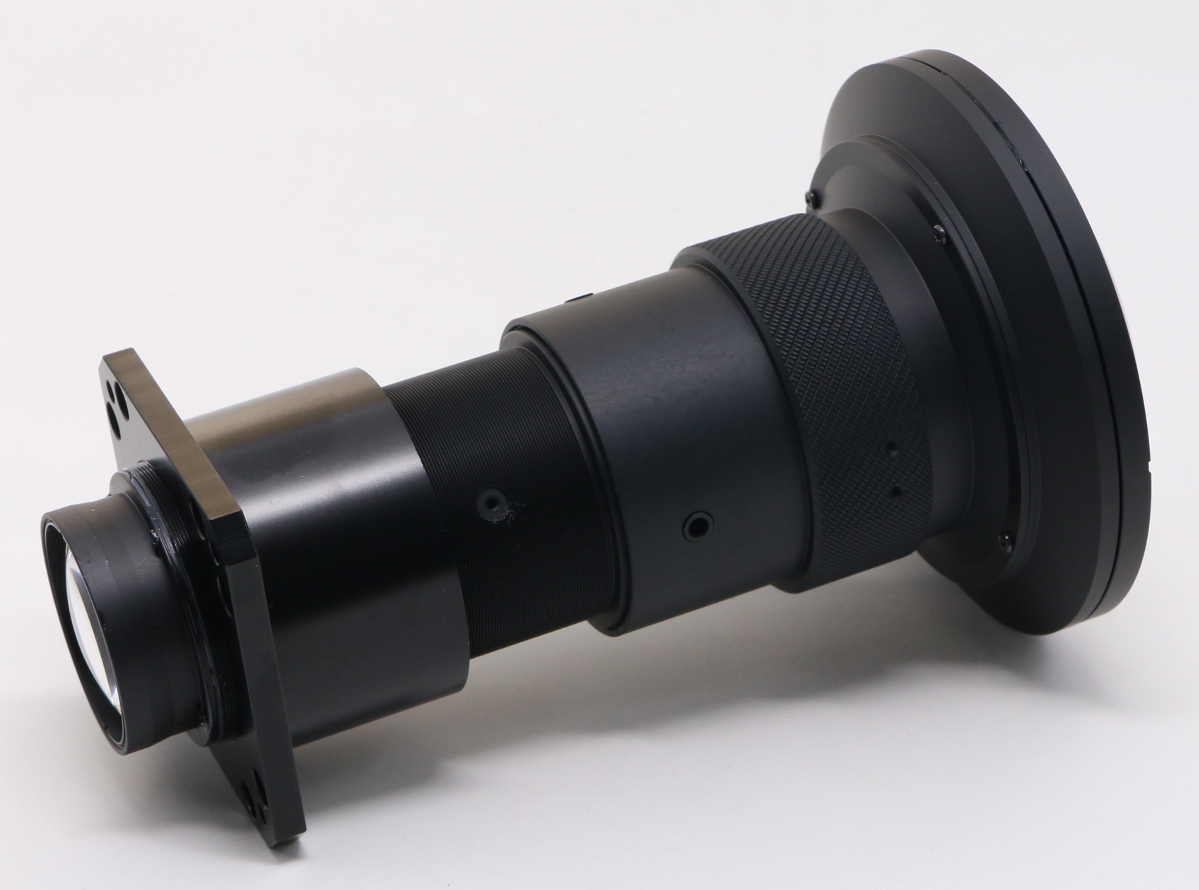

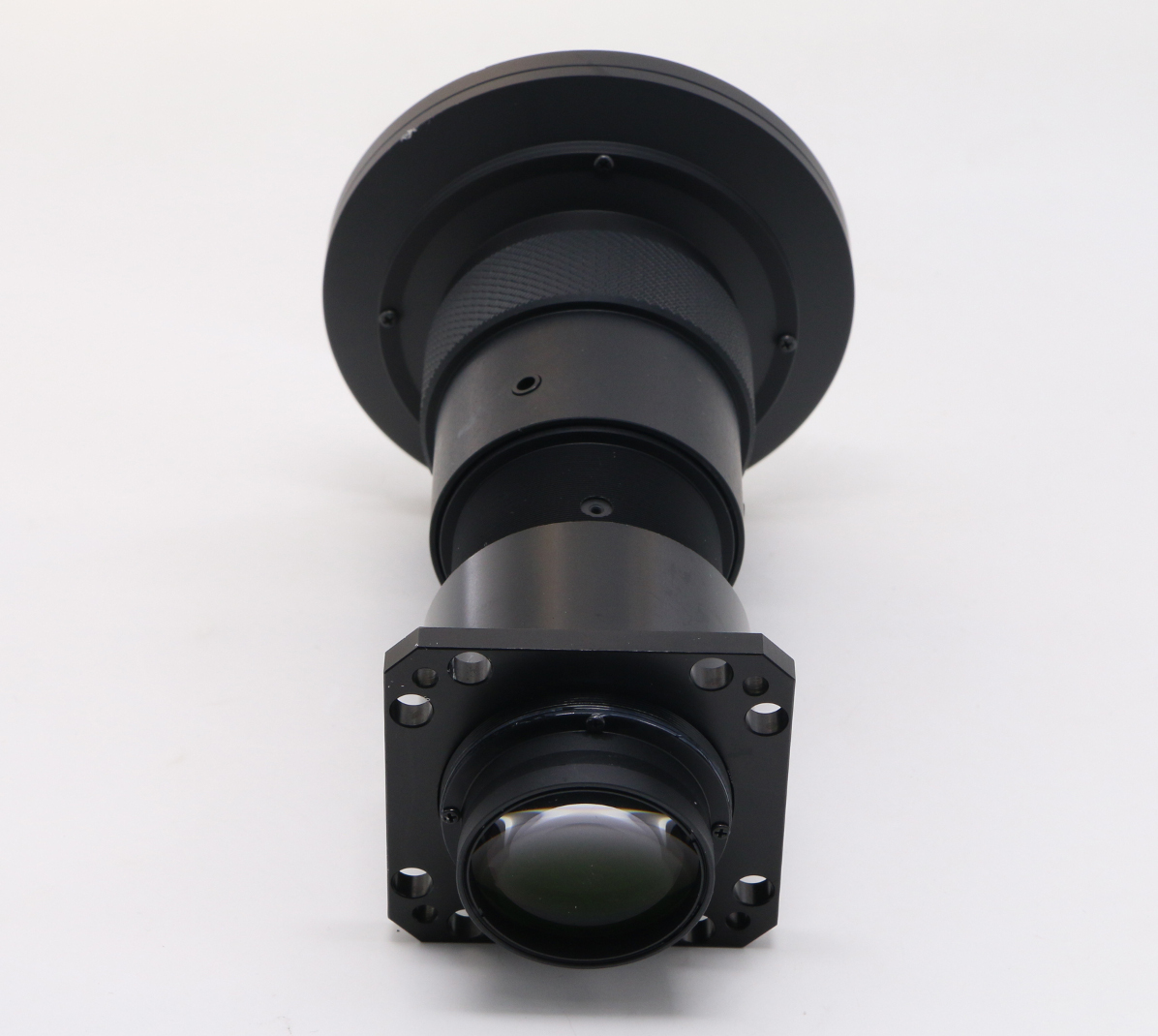

Zhen Optics Z-DLE066A

Manual Short Zoom Lens, 0.75-0.78:1
Item #0601-9011 Model #ZDLE066A
$750.00
Price

Overview

Zhen Optics Z-DLE066A

All-Glass Manual Short Zoom Lens

Throw ratio 0.75–0.78:1 (WUXGA 0.67" chip)
F/stop 2.20
Focal length 11.93–12.41 mm
Dimensions
Weight

Specifications

Resolution/Type Adapted for 0.67" WUXGA 1920x1200
Size: 14.5152 mm (H) x 9.072 mm (V)
Panel Size: 7.56 um
Telecentricity

DMD side telecentric lens
Lens Type All glass
ANSI throw ratio TR 0.75 @ 0.67 WUXGA
Screen size Performance range: 80" ~ 200"
Focus range: 60" ~ 500"
F/# 2.2
Back Focus Length 7.5 mm (air) +25 mm (BK7) + 4 mm (air) + 3 mm (corning 7056) + 0.5 mm (air) = 40 mm
Image circle ∅21.2 mm
MTF

for 66 lp/mm
Center > 70%
Corner > 55%

for 93 lp/mm
Center > 50%
Corner > 35%
Lateral Color Red–Green  4µm
Blue–Green 4µm
Flare Center: < 1.5 pixel
Corner: < 2.5 pixel
Relative Illumination > 65% (1.0 field)
TV Distorsion ±0.65%
Max Optical Length
(from 1st to last lens)		 170 mm
Dimension (mm)
(Max. Diameter * L)		 ∅90 mm (lens effective diameter only)
Dimension (mm)
(Max. Diameter * L)		 ∅40 mm (lens effective diameter only)
Contrast 2000:1
Flux Requirement
Transmission 440 nm  79%
550 nm  88%
650 nm  88%
Axial Color < 20 µm
Focus Adjust Type whole lens is adjustable
Flange Back TBD

Lens Shift

Panel Type

Type

Pitch

Resolution

H size

V size

D size

Inch

0.63XGA

0.0125

1024

768

12.8

9.6

16

0.6299

0.65WXGA

0.0108

1280

800

13.824

8.64

16.30192

0.6418

0.65HD

0.00756

1920

1080

14.5152

8.1648

16.65398

0.6557

0.67WU

0.00756

1920

1200

14.5152

9.072

17.11702

0.6739

0.7XGA

0.0136

1024

768

13.9264

10.4448

17.408

0.6854

0.8XGA

0.0156

1024

768

15.9744

11.9808

19.968

0.7861

For 0.63 XGA

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

1930.43

1447.82

2413.037

95.001

0.8366

47.7%

76.0%

1280

1281.45

10.6

120.8910377

1547.41

1160.55

1934.257

76.152

0.8272

3230

3217.82

10.6

303.5679245

3885.67

2914.25

4857.087

191.22

0.8313

For 0.65 WXGA

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

2084.86

1303.04

2458.571

96.794

0.7746

40.0%

86.0%

1280

1281.45

10.6

120.8910377

1671.2

987.051

2013.317

79.264

0.7659

3230

3217.82

10.6

303.5679245

4196.52

2753.97

5196.177

204.57

0.7697

For 0.65 HD

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

2189.11

1231.37

2511.667

98.885

0.7377

34.8%

89.2%

1280

1281.45

10.6

120.8910377

1754.76

987.051

2013.317

79.264

0.7294

3230

3217.82

10.6

303.5679245

4406.35

2478.57

5055.614

199.04

0.733

For 0.67 WUXGA

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

2189.11

1368.19

2581.499

101.63

0.7377

32.0%

70.3%

1280

1281.45

10.6

120.8910377

1754.76

1096.72

2069.294

81.468

0.7294

3230

3217.82

10.6

303.5679245

4406.35

2753.97

5196.177

204.57

0.7330

For 0.7 XGA

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

2100.31

1575.23

2625.384

103.36

0.7689

32.5%

53.0%

1280

1281.45

10.6

120.8910377

1683.58

1262.68

2104.471

82.853

0.7603

3230

3217.82

10.6

303.5679245

4227.61

3170.71

5284.51

208.05

0.764

For 0.8 XGA

Throw dist.

IMX

Y field

Magnification

H size

V size

D size

Inch

TR

Horizontal shift

Vertical shift

1615

1598.64

10.6

150.8148113

2409.18

1806.88

3011.47

118.56

0.6704

9.5%

16.3%

1280

1281.45

10.6

120.8910377

1931.16

1448.37

2413.952

95.037

0.6628

3230

3217.82

10.6

303.5679245

4849.32

3636.99

6061.644

238.65

0.666

Same Series Lenses

Model: ET-DLE020 ET-DLE035
ET-DLE0301		 ET-DLE060 ET-DLE055 ET-DLE085
ET-DLE0802		 ET-DLE105 ET-DLE150

ET-DLE170
Std Lens

 ET-DLE250 ET-DLE350 ET-DLE450
Price:
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart 		$500.00
Add to Cart
Add to Cart
Add to Cart
Add to Cart
  ET-DLE020 ET-DLE035 lens ET-DLE060 lens ET-DLE055 lens ET-DLE085 lens  ET-DLE105 lens ET-DLE150 lens ET-DLE170 lens ET-DLE250 lens ET-DLE350 lens ET-DLE450 lens
D:W WUXGA 0.28–0.30:1 0.38:1 0.60–0.80:1 0.79:1 0.78–0.98:1 0.98–1.32:1 1.30–1.89:1 1.71–2.41:1 2.27–3.62:1 3.58–5.45:1  5.36–8.58:1
D:W WXGA 0.29–0.31:1 0.39:1  0.62–0.82:1  0.81:1 0.81–1.01:1 1.01–1.36:1 1.34–1.95:1  1.76–2.48:1 2.34–3.73:1 3.69–5.61:1  5.52–8.83:1
D:W XGA 0.28–0.30:1 0.38:1  0.61–0.81:1 0.79:1 0.79–0.99:1 0.99–1.34:1 1.32–1.91:1 1.73–2.44:1 2.30–3.66:1 3.62–5.51:1 5.42–8.68:1
F/stop: 2.0 2.0 1.85–2.34 1.75 1.85–2.20 1.85–2.35 1.84–2.44 1.65–1.87 1.83–2.27 1.82–2.24 1.83–2.35



1ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

2ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.



Model Z-DLE055C Z-DLE066A
Price $999.00
Add to Cart 		$750.00
Add to Cart
Z-DLE055C lens Z-DLE066A lens
D:W
WUXGA		 0.42:1 0.75–0.78:1
D:W
WXGA		 0.43:1 0.77–0.80:1
D:W
XGA		 0.42:1 0.76–0.79:1
F/stop 2.6 2.2
