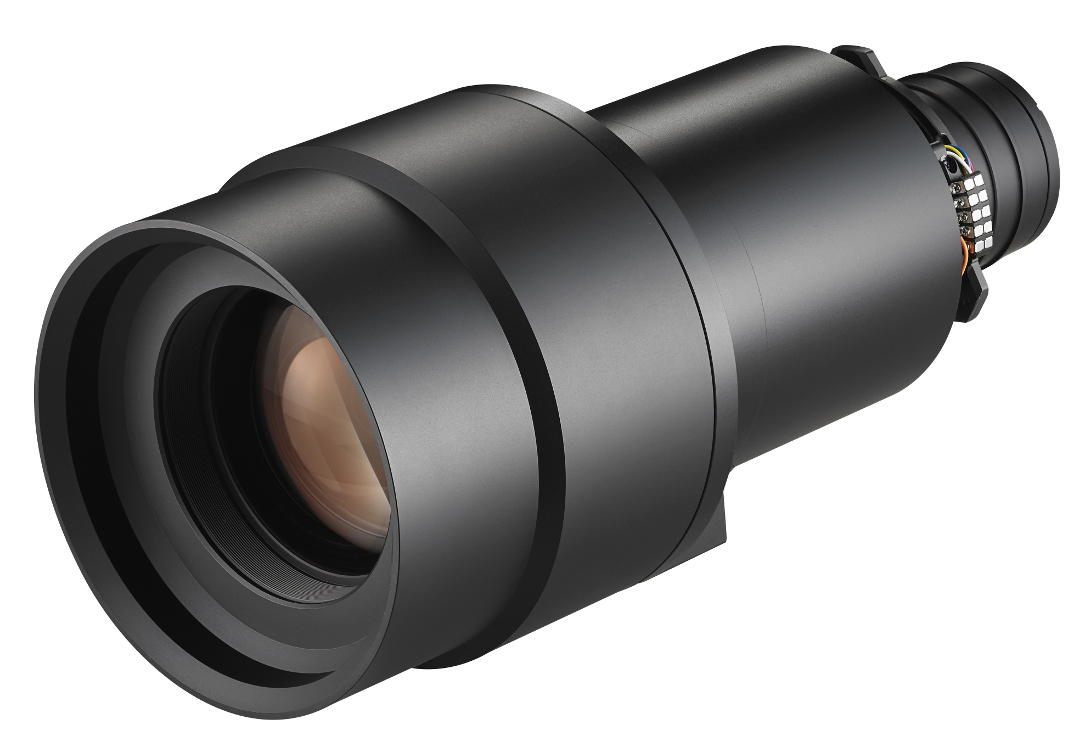

Optoma BX-CTA27

Ultra-Long-Throw Zoom Lens, D:W 7.2-10:8
Item #0601-3915 Model #BXCTA27

Specifications

BX-CTA27

Motorized Ultra-Long-Throw Zoom Lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



TECHNICAL SPECIFICATIONS
Throw Ratio
(distance/width)
WUXGA: 7.2 – 10.8:1
Zoom 1.5x
Throw Distance

25.4 – 381.6 ft (7.75  116.31 m)

Lens Shift See user manual for details
Focal Length (mm)

150.9  226.4

Aperture (f/stop)

2.4  3.1

PHYSICAL SPECIFICATIONS
Dimensions 5.43" x 5.43" x 13.06" (138.0 x 138.0 x 331.7 mm)
Weight 10.9 lb (4.9 kg)



Warranty:

years, or the same warranty period as the original projector, whichever is sooner

Same Series Lenses

Model BX-CTA11 BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21
Std Lens
BX-CTA22 BX-CTA23 BX-CTA27
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
  Optoma BX-CTA11 lens BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23 Optoma BX-CTA27 lens
D:W
WUXGA
0.65 – 0.75:1 0.84  1.02:1 1.02  1.36:1 1.2  1.5:1 1.5  2.0:1 2.0 – 4.0:1 4.0 – 7.2:1 7.2 – 10.8:1
f/stop 2.4  2.59 2.0 – 2.3 2.0 – 2.3 2.18 – 2.56 2.0 – 2.24 2.2 – 2.75 2.3 – 2.6 2.4 – 3.1
