HOME > Products > Search > Lenses for Projectors > Optoma BX-CTA18

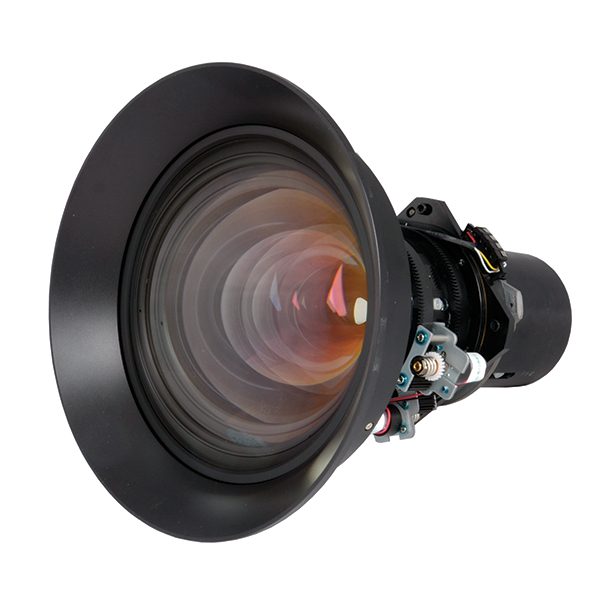

Optoma BX-CTA18

BX-CTA18 Motorized Short Zoom Lens, 0.84 – 1.02:1

Motorized Short Zoom Lens, D:W 0.84-1.02:1, 3 year warranty

Item #0601-3720 Model #BXCTA18

Specifications

BX-CTA18

Motorized bayonet style short throw lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

TECHNICAL SPECIFICATIONS

Throw Ratio (distance/width)	WUXGA: 0.84 – 1.02:1
Zoom	1.2x
Zoom Adjustment	Motorized
Focus Adjustment	Motorized
Lens Shift	WUXGA: Vertical ±13%, Horizontal ±5%
Focal Length (mm)	18.13 – 21.75
Aperture (f/stop)	2.0 – 2.3

PHYSICAL SPECIFICATIONS

Dimensions	7.1" x 7.1" x 9.3" (180.0 x 180.0 x 237.7 mm)
Weight	5.5 lb (2.48 kg)

OTHER

Warranty	3 years
UPC	796435071158

Same Series Lenses

Model	BX-CTA18	BX-CTA19	BX-CTA20	BX-CTA21	BX-CTA22	BX-CTA23

D:W	0.84 – 1.02:1	1.02 – 1.36:1	1.2 – 1.5:1	1.5 – 2.0:1	2.0 – 4.0:1	4.0 – 7.2:1
f/stop	2.0	2.0	2.2	2.0	2.2	2.2

Compatibility

To check whether this item is compatible with your equipment, use the form below.
