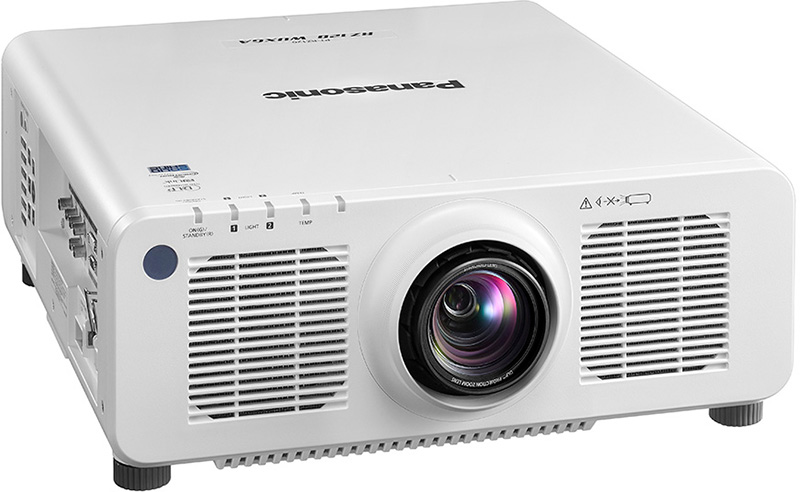

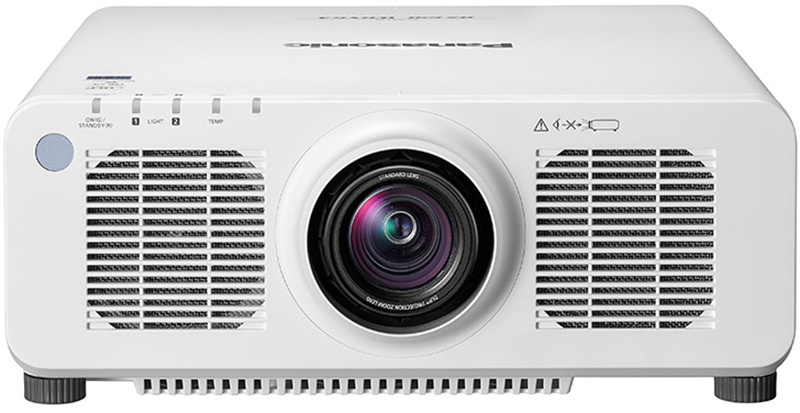

Panasonic PT-RZ120LWU

Meet the Panasonic PT-RZ120LWU, a 12,000-lumen projector with WUXGA resolution and stunning images. The 12,000-lumen PT-RZ120LWU is a first among 1-Chip DLP™ projectors. Further refinements to our high-quality imaging technology and filterless cooling system result in uncommonly high brightness from a compact body.

Expect vibrant, high-contrast pictures and consistent color uniformity across multiple screens from this Panasonic projector, courtesy of 1-Chip DLP™ technology and dual solid-state laser light engines. Hermetically sealed optics contribute to 20,000 hours of maintenance-free projection, enhancing installation flexibility in elevated positions such as museums, auditoriums, university halls, and even larger, brighter environments.

Note: Lens not included.

High-Quality Pictures and Long-Lasting Reliability

• Combines 1-Chip DLP™ imaging with proprietary SOLID SHINE Laser technology for accurate and immersive pictures at 12,000 lumens
• Dynamic Contrast realizes high 10,000:1 contrast without losing brightness
• Detail Clarity Processor 3 clarifies and enhances the finest details
• System Daylight View 3 optimization for sharp and vivid images in bright environments

Consistently Stable and Reliable Performance

• Dust-resistant projector structure with airtight optical block
• Dual-drive laser optical engine with dual phosphor wheels assures reliable 24/7 operation with light-source failover protection
• Up to 20,000 hours of continuous maintenance-free operation
• Efficient cooling system for stable operation in ambient temperatures of up to 113 °F (45 °C)
• Seamless backup signal input switching if primary signal transmission is interrupted

Versatile System Adaptability and Flexible Installation

• Shares optional lenses with Panasonic 1-Chip DLP™ projector family
• Compact body and free 360-degree installation (vertical and horizontal)
• DIGITAL LINK / HDMI® support transmission of 4K signals
• Built-in Geometric Adjustment for projection onto specially-shaped screens
• Supports Geometry Manager Pro and optional Upgrade Kit (ET-UK20)
• Data-cloning function copies configuration data from master projector to slave projectors via LAN, saving time and labor

Optional Lenses

Model	ET-DLE020	ET-DLE035 ET-DLE0301	ET-DLE060	ET-DLE055	ET-DLE085  ET-DLE0802	ET-DLE105	ET-DLE150	ET-DLE170 Std Lens	ET-DLE250	ET-DLE350	ET-DLE450
Price	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	$500.00 Add to Cart	Add to Cart	Add to Cart	Add to Cart
D:W WUXGA	0.28–0.30:1	0.38:1	0.60–0.80:1	0.79:1	0.78–0.98:1	0.98–1.32:1	1.30–1.89:1	1.71–2.41:1	2.27–3.62:1	3.58–5.45:1	5.36–8.58:1
F/stop	2.0	2.0	1.85–2.34	1.75	1.85–2.20	1.85–2.35	1.84–2.44	1.65–1.87	1.83–2.27	1.82–2.24	1.83–2.35

¹ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

²ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.

Model	Z-DLE055C	Z-DLE066A
Price	$999.00 Add to Cart	$750.00 Add to Cart
D:W WUXGA	0.42:1	0.75–0.78:1
F/stop	2.6	2.2

Other Accessories

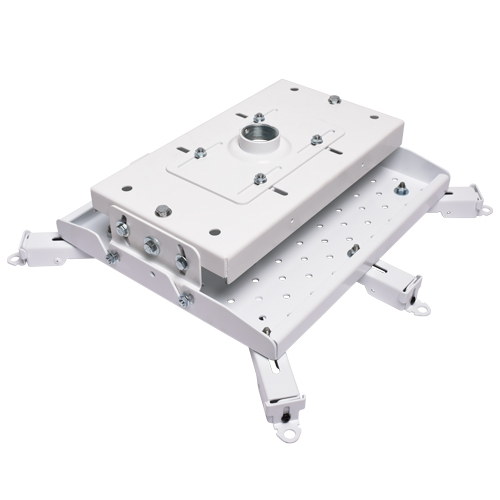

	Ceiling mounts
	Digital Interface Box (switcher) ET-YFB100G	Add to Cart
	DIGITAL LINK Switcher ET-YFB200G	Add to Cart
	Geometry Manager Pro Software Upgrade Kit ET-UK20	$1,683.00 Add to Cart

Spec Sheet

Manual

RS232 Protocol

Warranty
