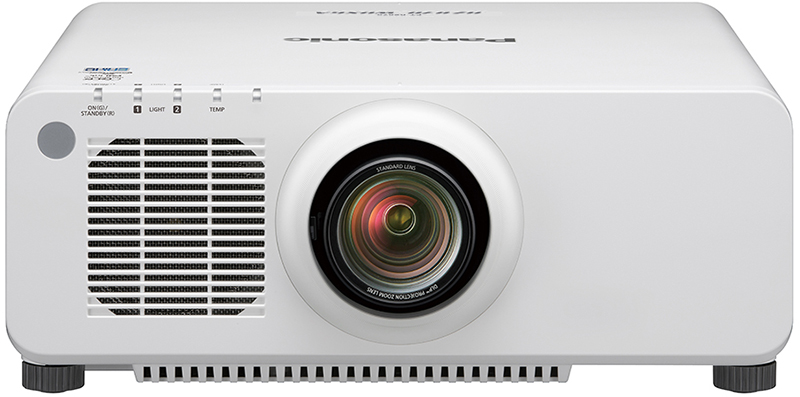

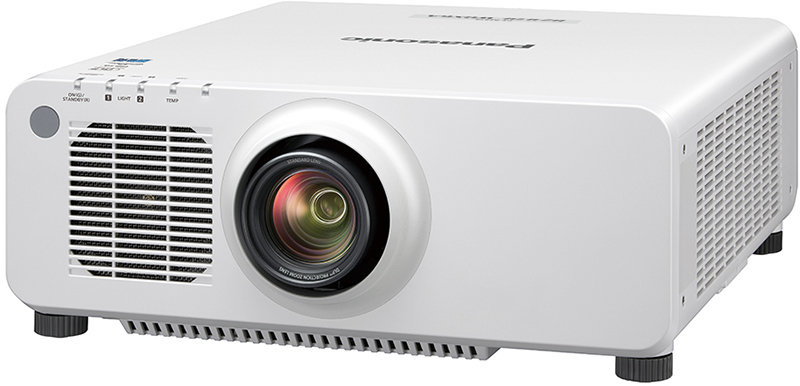

Panasonic PT-RZ870LBU

Applications for Panasonic's 6,000–10,000-lumen RZ970 Series laser projector lineup, including the Panasonic PT-RZ870LBU with 8500 ANSI lumens of brightness, extend from education, exhibition, and signage through to events and staging.

With a shared design philosophy, these compact 1-Chip DLP™ projectors deliver picture quality approaching that of Panasonic's 3-Chip DLP™ models, while retaining flexibility for a stress-free installation. This Panasonic projector series not only leads the field in outright image quality, it also provides the stable, consistent, low-maintenance performance that professional users demand.

The Panasonic PT-RZ870LBU marries WUXGA resolution with laser 1-DLP projector technology to present vivid, bright, and sharp visuals that can enhance any presentation or display. This WUXGA laser DLP projector exemplifies Panasonic's commitment to providing solutions that match the professional needs for reliability, quality, and versatility in various lighting conditions and environments.

• Laser 1-chip DLP
• 8,800 lumens (center)/ 8,500 lumens (ANSI)
• WUXGA resolution
• High brightness and excellent image quality with laser light source
• Maintenance-free up to 20,000 hours with dust-resistant optical block and long-lasting laser engine
• 360° flexible installation and Geometric Manager Pro function
• 10,000:1 contrast ratio

Optional Lenses

Model	ET-DLE020	ET-DLE035 ET-DLE0301	ET-DLE060	ET-DLE055	ET-DLE085  ET-DLE0802	ET-DLE105	ET-DLE150	ET-DLE170 Std Lens	ET-DLE250	ET-DLE350	ET-DLE450
Price	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	$500.00 Add to Cart	Add to Cart	Add to Cart	Add to Cart
D:W WUXGA	0.28–0.30:1	0.38:1	0.60–0.80:1	0.79:1	0.78–0.98:1	0.98–1.32:1	1.30–1.89:1	1.71–2.41:1	2.27–3.62:1	3.58–5.45:1	5.36–8.58:1
F/stop	2.0	2.0	1.85–2.34	1.75	1.85–2.20	1.85–2.35	1.84–2.44	1.65–1.87	1.83–2.27	1.82–2.24	1.83–2.35

¹ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

²ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.

Model	Z-DLE055C	Z-DLE066A
Price	$999.00 Add to Cart	$750.00 Add to Cart
D:W WUXGA	0.42:1	0.75–0.78:1
F/stop	2.6	2.2

Brochure

Spec Sheet

Manual

RS232 Protocol

3 Years Parts & Labor; 10,000 Hours on Illumination Parts
