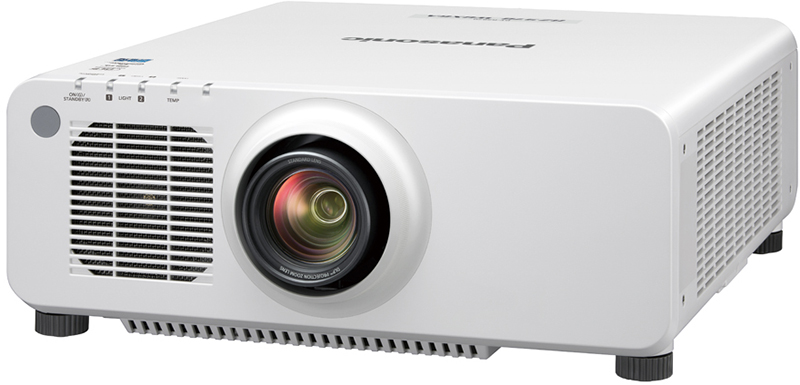

Extraordinary SOLID SHINE power from compact and versatile 1-chip DLP™ laser projectors.

Benefits of This Series:

1. Radiant Picture Quality and Long-Lasting Reliability

• Up to 10,400 lm brightness in a compact and lightweight design.
• 1-Chip DLP™ imaging and SOLID SHINE laser technology deliver superior white-balance and color accuracy.
• Dynamic Light Control for 10,000:1 contrast.
• Consistent long-lasting picture quality.
• Detail Clarity Processor 3 improves image clarity, detail, and depth.
• System Daylight View 3 ensures crisp images for projection mapping and brightly lit indoor environments.

2. Consistently Stable Performance

• Filterless dust-resistant optical drive.
• Up to 20,000 hours of continuous maintenance-free operation.
• Selectable operational modes extend service life to up to 10 years.
• Dual-drive laser optical engine ensures reliable 24/7 operation with light-source failover protection circuitry.
• Efficient cooling system for stable operation and low 35 dB noise levels.
• Backup Input Setting maintains image display for mission-critical applications.

3. Easy System Integration and Installation Flexibility

• Contrast sync and shutter sync function for multiple-unit projection.
• Free 360-degree installation (vertical and horizontal).
• DIGITAL LINK supports transmission of uncompressed Full HD video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft).
• Quick start/quick off with no cool-down or warm-up required.
• Compatible with Art-Net lighting-control protocol.
• Geometric Adjustment for curved and specially shaped screens.
• Geometry Manager Pro and optional upgrade kit (ET-UK20 Series).

[ Compare to Similar Projectors ]

Optional Lenses

Model	ET-DLE020	ET-DLE035 ET-DLE0301	ET-DLE060	ET-DLE055	ET-DLE085  ET-DLE0802	ET-DLE105	ET-DLE150	ET-DLE170 Std Lens	ET-DLE250	ET-DLE350	ET-DLE450
Price	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	$500.00 Add to Cart	Add to Cart	Add to Cart	Add to Cart
D:W WUXGA	0.28–0.30:1	0.38:1	0.60–0.80:1	0.79:1	0.78–0.98:1	0.98–1.32:1	1.30–1.89:1	1.71–2.41:1	2.27–3.62:1	3.58–5.45:1	5.36–8.58:1
F/stop	2.0	2.0	1.85–2.34	1.75	1.85–2.20	1.85–2.35	1.84–2.44	1.65–1.87	1.83–2.27	1.82–2.24	1.83–2.35

¹ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

²ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.

Model	Z-DLE055C	Z-DLE066A
Price	$999.00 Add to Cart	$750.00 Add to Cart
D:W WUXGA	0.42:1	0.75–0.78:1
F/stop	2.6	2.2

Brochure

Spec Sheet

Manual

3 Years Parts & Labor; 10,000 Hours on Illumination Parts
