Keewin KWO32-66
Overview
Keewin KWO32-66
32" High Brightness Outdoor Digital Signage Display
Keewin Display offers a premium outdoor digital signage solution with a high-brightness LCD display, integrated high temperature LCD, self-cooling design, and AG coated glass for enhanced visibility. This signage is easy to integrate into custom frames and doesn't require additional waterproofing or cooling measures, making it an excellent choice for outdoor advertising needs.
There are no better protected displays than Keewin's IP 66 High Brightness Displays. With an entirely enclosed design, the IP 66 High Brightness Display is the answer to any commercial display need in unforgiving environments.
With a high brightness of 2500 nits, the 32" (diagonal) Keewin KWO32-66 is readable even in direct sunlight. In addition, the IP66 rating guarantees a fully enclosed sealed system that can be used outdoors in all types of weather, without the need for ventilation with outside air for long life and filter-less design.
This outdoor screen supports portrait and landscape display, can be used 24/7, and is ideal for a variety of professional applications, from advertising to information boards.
Key Features
- 32-inch Full HD (1080p) LCD Screen
- Anti-Glare Coated IK10 Impact Protected Tempered Glass Optically Bonded to the panel for improved heat dissipation and glare reduction.
- High TNI (Twisted Nematic In-Plane Switching) for high 221°F (105°C) LCD panel temperature operation
- High Brightness: 2500 Nits
- IP66 Rating — Fully Enclosed System
- Maintenance-Free
- Optional Android OS / Windows OS / TV Board
Features
IP66-rated — resistant to outdoor elements: The KWO32-66 is verified to perform in outdoor settings. IP66-rated protection ensures it is built as a fully-enclosed display module that can withstand physical impact and offers complete resistance to dust, humidity and other outdoor elements such as wind, rain, or snow.
High visibility: The KWO32-66 captivates viewers with superior messaging clarity delivered with a high 2,500-nit brightness and high contrast ratio.
Truly readable in sunlight: The KWO32-66 is optically bonded, which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality, even in direct sunlight.
Maintenance-free: Outdoor digital signs use heat conduction as the heat dissipation mode, which is a more stable and safe way. Compared with fan cooling, the failure rate is reduced and no noise is generated. There is no filter replacement needed, for maintenance-free usage.
Reflection prevention: Greater content visibility is achieved under a combination of high brightness and lower reflection. The ultra-clear AG coated tempered glass bonded to the display's LCD panel reduces reflections, making the displayed images richer and clearer under direct sunlight.
Impact Resistant: IK10 certified tempered glass is used to reduce susceptibility to breakage.

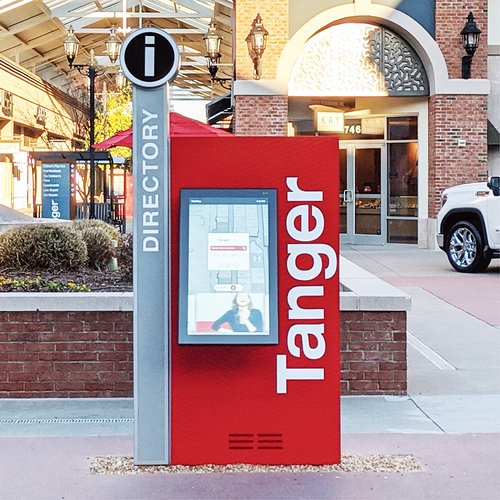

Designed for various applications: The modular design supports up to three-column displays side-by-side, with an additional back-to-back option. Applications include advertisement, passenger information boards, drive-through menus, directories, and much more.

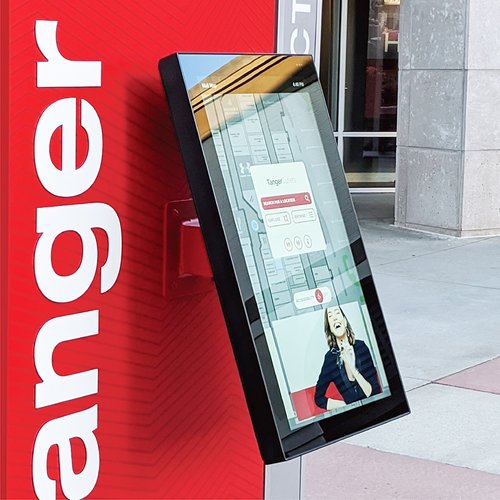

Wide range of mounting solutions: can be mounted vertically or horizontally, hanging from the ceiling or a wall, or sitting on a stand on the floor.
Specifications
Panel
| Size | 32 inch (diagonal) |
| Active Display Area (HxV) | 27.50" x 15.47" (698.4 x 392.85 mm) |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 2500 nits |
| Backlight Adjustment |
Automatic (Ambient Light Sensor)
|
| Viewing Angle | 178° / 178° |
| Backlight Configuration | Direct LED |
| Operation Life Cycle-mtbf (hours) | 50,000 |
Mechanical
|
Dimensions (WxHxD)
|
31.3" x 19.3" x 3.8" (795 x 489.5 x 96 mm) |
|
Weight
|
48.5 lb (22 kg) |
| Finish | Zinc Powder Coating + Fine Grain Powder Coating |
| Glass | IK10 rated Tempered Glass |
| Color | Black (Ral 9005) |
| Enclosure Material | Aluminum |
Power
| AC Input | 110 V AC – 220 V AC, 50/60 Hz |
| Power Consumption | 104 W |
Environmental
| IP Rating | IP66 |
| Operating Environment | Fully Outdoor |
| Operating Humidity | 5% ~ 98% |
|
Operating Temp.
|
-22°F ~ 122°F (-30°C ~ +50°C) |
|
Operating Altitude
|
≤ 6562 feet (2000 m) |
Input/Output
| HDMI Input | HDMI (x 1), 480i, 480p, 720p, 1080i, 1080p |
| VGA in | x 1 |
| USB Data Input | USB 2.0 (x 1) |
| Analog Audio Output | 3.5 mm headphone jack (x 1) |
| PC Audio in | x 1 |
Optional Media (Android Type)
| OS | Android 5.1 |
| CPU | RK3288 1.8 GHz |
| GPU | Mail-764 |
| Memory | 2 GB (DDR3) |
| ROM | 8 GB (eMMC) |
| HDMI Input | HDMI (x 1), 480i, 480p, 720p, 1080i, 1080p |
| VGA in | x 1 |
| USB Data Input | USB 2.0 (x 1) |
| Analog Audio Output | 3.5 mm headphone jack (x 1) |
| PC Audio in | x 1 |
| Ethernet | RJ-45 (x 1) |
| WiFi | 802.11 / b / g / n |
Warranty
3-year warranty
