Optoma BX-CTA16

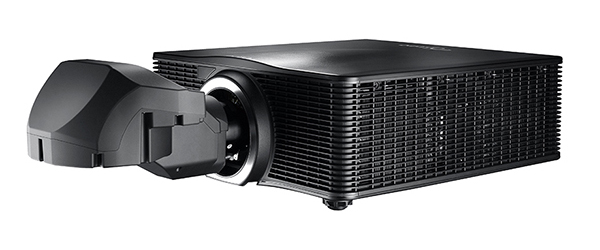

BX-CTA16 Fixed Ultra Short Throw Lens

Fixed Ultra Short Throw Lens, D:W 0.36:1

Item #0601-3698 Model #BXCTA16

Specifications

BX-CTA16

Ultra Short Throw Ceiling Projection Lens

The BX-CTA16 is the ultimate ultra-short throw lens for select Optoma ProAV projectors.

Its throw ratio of 0.36 is perfect for professional installations that require high brightness in space-constrained environments.

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

TECHNICAL SPECIFICATIONS

Focal Length	9.49 – 9.55
Aperture	F/2.4
Throw Ratio	0.36:1
Zoom Focus Adjustment	Motorized
Field of View	180 degrees
Distortion	±5%

PHYSICAL SPECIFICATIONS

Dimensions	21” x 18.5” x 15.25”
Weight	5.5 lbs

OTHER

Standard Accessories	UST lens boresight module, boresight extender, L-shape tool, lens mount bracket, bracket, stand (attached on supporter), supporter, screws
UPC	796435071325
Warranty Info	3-year warranty

Same Series Lenses

Model	BX-CTA16	BX-CTA17	BX-CTA15	BX-CAA01	BX-CAA02 *	BX-CAA06	BX-CAA03	BX-CTA13
	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart	Add to Cart

D:W WUXGA	0.36:1	0.65 – 0.75:1	0.75 – 0.95:1	0.95 – 1.22:1	1.22 – 1.53:1	1.22 – 1.53:1	1.52 – 2.92:1	2.9 – 5.5:1
D:W WXGA	N/A	N/A	N/A	1.0 – 1.28:1	1.28 – 1.61:1	N/A	1.6 – 3.07:1	N/A
f/stop	2.4	2.0 – 2.1	2.3 – 2.53	2.3 – 2.57	2.0 – 2.3	2.0 – 2.3	2.3 – 3.4	2.3 – 2.74

* Only for use with the ZU660e

Downloads

Datasheet (Specifications)

Compatibility

To check whether this item is compatible with your equipment, use the form below.
