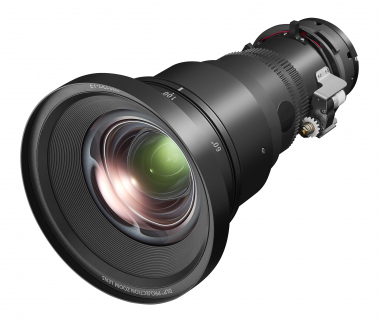

Panasonic ET-DLE088
Short Zoom Lens
Item #0601-2268 Model #ETDLE088
Specifications
Panasonic ET-DLE088
Short Zoom Lens
Zoom lens for 1-chip DLP projectors.
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
| Throw Ratio (D:W): | 4K 0.782–1.10:1 (0.66" DLP; 16:9) WUXGA 0.793–1.12:1 (0.67" DLP; 16:10) WXGA 0.816–1.15:1 (0.65" DLP; 16:10) |
| Aperture (F/stop): |
1.85 – 2.11 |
| Focal Distance (f): |
11.8 – 16.5 mm (15/32 – 21/32 inch) |
| Dimensions (WxHxD): | 5-1/2 x 5-1/2 x 9-3/16 inches (140 x 140 x 232.6 mm) |
| Weight: | Approx. 3 lb 7 oz (1.55 kg) |
Same Series Lenses
| Model | ET-DLE020 | ET-DLE060 | ET-DLE088 | ET-DLE158 | ET-DLE178 Std Lens |
ET-DLE258 |
| Add to Cart | Add to Cart | |||||
 |
 |
 |
 |
 |
 |
|
| D:W 4K |
0.277 – 0.296:1 | 0.594 – 0.793:1 | 0.782 – 1.10:1 | 1.08 – 1.62:1 | 1.60 – 2.58:1 | 2.55 – 3.82:1 |
| D:W WUXGA | 0.280 – 0.299:1 | 0.600 – 0.801:1 | 0.793 – 1.12:1 | 1.10 – 1.64:1 | 1.62 – 2.62:1 | 2.59 – 3.87:1 |
| D:W WXGA | 0.288 – 0.308:1 | 0.618 – 0.824:1 | 0.816 – 1.15:1 | 1.13 – 1.69:1 | 1.67 – 2.69:1 | 2.66 – 3.99:1 |
| D:W XGA | 0.283 – 0.302:1 | 0.607 – 0.810:1 | 0.802 – 1.13:1 | 1.11 – 1.66:1 | 1.64 – 2.65:1 | 2.62 – 3.92:1 |
| f/stop | 2.0 | 1.85 – 2.34 | 1.85 – 2.11 | 1.85 – 2.19 | 1.85 – 2.04 | 1.85 – 2.18 |
Downloads
Compatibility
To check whether this item is compatible with your equipment, use the form below.
