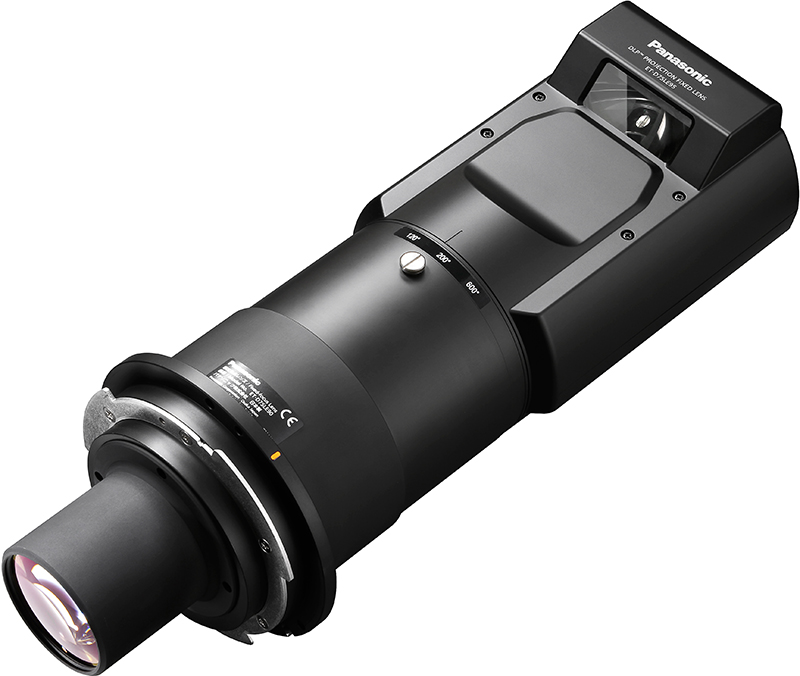

Panasonic ET-D75LE95

Ultra Short Lens
Item #0601-2261 Model #ETD75LE95

Overview

Compatible with 3-Chip DLP™ Panasonic projectors, the ET-D75LE95 Ultra Short Throw Lens enables large-screen image projection from very short distances.

By mounting an ET-D75LE95 Ultra Short Throw lens onto a Panasonic 3-Chip DLP™ projector, throw distances are reduced by as much as 60% (approximately) in comparison with the ET-D75LE50 Short Throw Lens. The huge space lets users exploit the high brightness and picture quality offered by 3-Chip DLP™ Panasonic projectors in spaces where limitations previously existed.

Fit an ET-D75LE95 lens onto one of our 3-Chip DLP™ projectors and produce a 200-inch-diagonal image at a distance of just 1.6 m (approximately).

Screen sizes of up to a 600-inch diagonal are supported. Exclusive technology inside these lenses opens up new possibilities for imaginative visual presentations.

Specifications

ET-D75LE95 3-Chip DLP Projector Ultra-Short Throw Lens


F value 2.5
Focal distance (f) 7.5 mm
Throw ratio 16:10 2560x1600, 1920x1200:  0.36:1
16:9 1920x1080:  0.36:1
16:9 1366x768:  0.40:1
4:3 1400x1050:  0.39:1
Lens Shift 16:10 2650x1600:  Vert +10% -5%; Horiz ±21%
16:10 1920x1200 RZ31/RZ12:  Vert ±5%, Horiz ±12%
16:10 1920x1200 DZ21/DZ13/DZ10:  Vert +5% -7%, Horiz ±12%
16:9 1920x1080:  Vert +13% -8%, Horiz ±19%
16:9 1366x768:  Vert +18% -9%, Horiz ±30%
4:3 1400x1050:  Vert +0% -7%, Horiz ±8%
Dimensions (W x H x D) 463.5 x ∅154 mm (18.25 x ∅6.06 inches)
Weight Approximately 5.7 kg (12.6 lbs)

Same Series Lenses

Model: ET-D75LE95 ET-D75LE6 ET-D75LE10 ET-D75LE20
Std Lens
ET-D75LE30 ET-D75LE40 ET-D75LE8
Price:
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
$4,160.00
Add to Cart

Add to Cart
  ET-D75LE95 ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8
D:W
WUXGA
0.364:1 0.924 – 1.10:1 1.30 – 1.67:1 1.67 – 2.41:1 2.40 – 4.66:1 4.62 – 7.38:1 7.34 – 13.8:1
D:W
1080p
0.358:1 0.908  1.08:1 1.28 – 1.64:1 1.64 – 2.37:1 2.36 – 4.58:1 4.54 – 7.26:1 7.22 – 13.6:1
D:W
1366x768
0.400:1 1.015 – 1.21:1 1.43 – 1.83:1 1.83 – 2.65:1 2.64 – 5.12:1 5.08 – 8.11:1 8.06 – 15.2:1
D:W
SXGA+
0.390:1 0.990 – 1.18:1 1.39 – 1.79:1 1.79 – 2.58:1 2.57 – 4.99:1 4.95 – 7.91:1 7.86 – 14.8:1
D:W
WQXGA/4K+
0.388:1 0.986 – 1.17:1 1.39 – 1.78:1 1.78 – 2.57:1 2.56 – 4.97:1 4.93 – 7.87:1 7.83 – 14.7:1
D:W
4K DCI
0.243:1 0.616 – 0.73:1 0.87 – 1.11:1 1.11 – 1.61:1 1.60 – 3.11:1 3.08 – 4.92:1 4.90 – 9.20:1
f/stop 2.5 2.5 2.5 2.5 2.5 2.5 2.5 – 2.7
