Epson ELPLX02S

Ultra-Short Throw Lens
Item #0600-6172 Model #V12H004X0B

Overview

Epson ELPLX02S

Ultra short-throw lens for Epson Pro Series projectors

The flexible ultra short-throw lens for Epson Pro Series projectors 9,000 to 20,000 lumens

Project supersized images at a short distance with the Epson ELPLX02S ultra short-throw lens. Designed for use with Epson Pro Series projectors from 9,000 lumens to 20,000 lumens, this convenient short throw projector lens makes it easy to display bright, larger-than-life images up to 1000" in narrow or space-constrained environments.

Featuring a 0.35 throw ratio, wide lens shift and unique zero offset design, the ELPLX02S offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications.

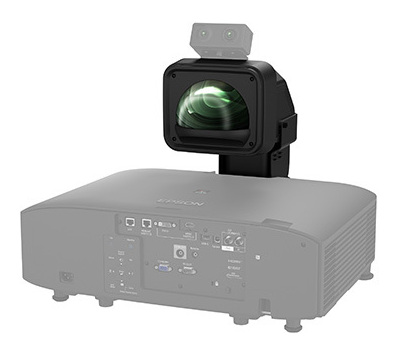

And, with an integrated mount point for Epson's optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, a stacking assist function and more.

Also available in white as ELPLX02WS.

Projector sold separately.

(P/N: V12H004X0B)



Note:

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Features

  • Project large images at a short distance: lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
  • Flexible installation: 0.35 throw ratio, wide lens shift and zero offset for enhanced convenience
  • Perfect for space-constrained environments: ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
  • Engineered for versatility: bring bright, bold projection to locations where you previously could not utilize a projector
  • Mount point for optional ELPEC01 external camera: access powerful tools such as auto color calibration3, screen matching of multiple projectors4, tiling assist5 for edge blends and a stacking assist6 function
  • Compatible with Epson Pro Series1 projectors: works with Epson laser projectors1 from 9,000 to 20,000 lumens2
  • Large screen size: projects 100" to 1000"
  • Designed for stealth installations: can easily mount in the ceiling with just the lens protruding for discreet installation
  • Lens neck cover included — for a sleek, seamless look



Eco Features

  • Recyclable product7
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner8
Notes:

1 Will not work with Epson Pro L25000 or Pro L30000 Series projectors.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 Requires Epson external camera.

4 Requires an Epson external camera for each projector.

5 Requires Epson external camera for each projector and the Epson Projector Professional Tool app.

6 Requires Epson external camera for each projector and may, depending on your projector, require Epson Projector Professional Tool app.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Throw ratio
WUXGA:             D:W = 0.35:1 (1.03" LCD)*
1080p/4K UHD:   D:W = 0.34:1 (1.04" LCD)**
Native 4K:           D:W = 0.34:1
SXGA+:              D:W = 0.36:1
Type Powered: focus/distortion
Lens shift (Powered)

WUXGA: Vertical: +45% to +70% (H Center);
Horizontal: -15% to +15% (V Center)

Native 4K: Vertical: +45% to +68% (H Center);
Horizontal: -10% to +10% (V Center)

SXGA+: Vertical: +45% to +55% (H Center);
Horizontal: -5% to +5% (V Center)
Aperture (F/stop) 1.9
Focal length 8.0 mm
Connector 24-Pin
Screen size (Projected distance) 100" to 1000"
Operating temperature 32° to 122°F (0° to 50°C)
Weight 11.0 lb (5.0 kg)
Dimensions (WxDxH)   14.96" x 13.39" x 8.27"  (380 x 340 x 210 mm)


       * Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL, EB-PU2010

       ** EB-PQ2008B, EB-PQ2008W, EB-PQ2010B, EB-PQ2010W, EB-PQ2213B, EB-PQ2216B, EB-PQ2216W, EB-PQ2220B

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



What’s in the Box:

ELPLX02S ultra-short throw lens

Same Series Lenses

Model: ELPLX01
ELPLX01S7		 ELPLX02
ELPLX02S7		 ELPLU03
ELPLU03S		 ELPLU04 ELPLW05 ELPLW08 ELPLM08
Std Lens2,4,5		 ELPLW06

ELPLM09
ELPLM15
Std Lens1,3,6

 ELPLM10 ELPLM11 ELPLL08
Price:
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart 		$11,219.00
Add to Cart
Add to Cart 		$3,348.00
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
  ELPLX01 lens ELPLX02 lens ELPLU03 lens ELPLU04 lens ELPLW05 lens  ELPLW08 lens ELPLW08 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
D:W WUXGA1
1.03" chip		 — 0.35:1 0.48–0.57:1 0.64–0.77:1 0.77–1.07:1 0.86–1.21:1 — 1.19–1.62:1 1.57–2.56:1 2.42–3.71:1 3.54–5.41:1 5.27–7.41:1
D:W WUXGA2
0.76" chip		 0.35:1 — 0.65–0.78:1 0.87–1.05:1 1.04–1.46:1 1.18–1.66:1 1.44–2.32:1 1.62–2.22:1 2.16–3.48:1 3.32–5.06:1 4.85–7.38:1 7.21–10.11:1
D:W SXGA+3 — 0.36:1 0.49–0.59:1 0.66–0.79:1 0.79–1.10:1 0.89–1.25:1 — 1.23–1.67:1 1.62–2.64:1 2.49–3.82:1 3.65–5.57:1 5.43–7.63:1
D:W WXGA4 0.35:1 — 0.65–0.78:1 0.87–1.05:1 1.04–1.46:1 1.18–1.66:1 1.44–2.32:1 1.62–2.22:1 2.16–3.48:1 3.32–5.06:1 4.85–7.38:1 7.21–10.11:1
D:W XGA5 0.36:1 — 0.66–0.80:1 0.89–1.08:1 1.07–1.49:1 1.15–1.70:1 1.47–2.38:1 1.66–2.27:1 2.20–3.55:1 3.39–5.17:1 4.95–7.54:1 7.36–10.33:1
D:W 1080p6
1.04" chip		 — 0.34:1
 0.46–0.55:1 0.62–0.74:1 0.74–1.03:1 0.83–1.17:1 — 1.15–1.56:1 1.52–2.47:1 2.33–3.57:1 3.41–5.21 5.08–7.14:1
F/stop 1.9 1.9 2.0–2.26 2.0–2.1 2.0–2.2 2.0–2.2 1.7–2.3 1.8–2.3 1.8–2.35 1.8–2.4 1.8–2.4 1.8–2.5
Max Lumens 8,500 20,000 U03 12,000
U03S 20,000 		 20,000 10,500 20,000 8,500 20,000 M09  12,000
M15 20,000 		20,000 20,000 20,000
Notes ELPLX01 is discontinued.

ELPLX02 is discontinued.



ELPLU03 is discontinued.

ELPLW05 & ELPLM08 are more cost effective if within light output limits.

 ELPLM09 is discontinued.



1 For Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL, EB-PU2010B, EB-PU2010W (Standard Lens is ELPLM15)

2 For Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U, EB-PU1006W, EB-PU1007B, EB-PU1007W, EB-PU1008B, EB-PU1008W (Standard Lens is ELPLM08)

3 For Pro L1715SNL (Standard Lens is ELPLM15)

4 For Pro G7000W, G7200W (Standard Lens is ELPLM08)

5 For Pro G7100, G7805 (Standard Lens is ELPLM08)

6 For EB-PQ2008B, EB-PQ2008W, EB-PQ2010B, EB-PQ2010W, EB-PQ2213B, EB-PQ2216B, EB-PQ2216W, EB-PQ2220B

7 ELPLX01S and ELPLX02S have a mounting point for the ELPEC01 external camera.
