Epson ELPLX01WS
Overview
Epson ELPLX01WS
Ultra short-throw lens for Epson Pro Series projectors
The flexible ultra-short throw lens for Epson interchangeable lens projectors up to 8,500 lumens.
Project supersized images at a short distance with the ELPLX01WS ultra-short throw lens. Designed for use with Epson Pro Series projectors up to 8,500 lumens, this convenient lens makes it easy to display bright, larger-than-life images up to 300" in narrow or space-constrained environments.
Featuring a 0.35 throw ratio, wide lens shift and unique zero offset design, the ELPLX01WS offers incredible flexibility to accommodate a variety of projection installations, including low-ceiling, rear-projection and stealth applications.

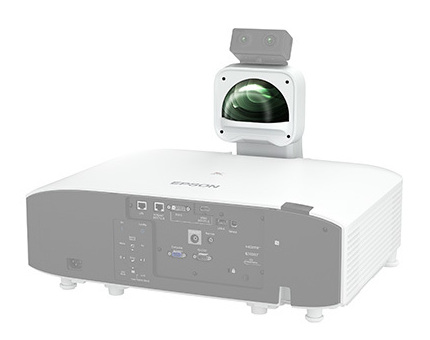

And, with an integrated mount point for Epson's optional ELPEC01 external camera, you can access powerful automated tools to simplify and speed up setup, such as auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, a stacking assist function and more.
Also available in black as ELPLX01S.Projector sold separately.
(P/N: V12H004Y0A)
Note:
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Features
- Project large images at a short distance: lens makes it easy to display larger-than-life images while minimizing shadows and light path obstructions
- Flexible installation: 0.35 throw ratio, wide lens shift and zero offset for enhanced convenience
- Perfect for space-constrained environments: ideal for narrow spaces and rear-projection applications; unique zero offset design maximizes display size in areas with low ceilings
- Engineered for versatility: bring bright, bold projection to locations where you previously could not utilize a projector
- Mount point for optional ELPEC01 external camera: access powerful tools such as auto color calibration3, screen matching of multiple projectors4, tiling assist5 for edge blends and a stacking assist6 function
- Compatible with Epson Pro Series1 projectors: works with Epson interchangeable lens projectors up to 8,500 lumens2
- Large screen size: project 100" to 300"
- Designed for stealth installations: mount in the ceiling with just the lens protruding for a discreet installation
Eco Features
- Recyclable product7
- RoHS compliant
- Epson America, Inc. is a SmartWaySM Transport Partner8
Notes:
1 Fits Epson Pro L Series, Pro G 7000 and EB-P Series projectors up to 8,500 lumens.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 Requires Epson external camera.
4 Requires an Epson external camera for each projector.
5 Requires Epson external camera for each projector and the Epson Projector Professional Tool app.
6 Requires Epson external camera for each projector and may, depending on your projector, require Epson Projector Professional Tool app.
7 For convenient and reasonable recycling options, visit www.epson.com/recycle
8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
| Throw ratio |
WUXGA: D:W = 0.35:1 (0.76" LCD)*
WXGA: D:W = 0.35:1
XGA: D:W = 0.36:1 |
| Type | Powered: focus/distortion |
| Lens shift (Powered) |
WUXGA/WXGA: Vertical: +50% to +67% (H Center); Horizontal: -10% to +10% (Vertical +50%) XGA: Vertical: +50% to +57% (H Center); Horizontal: -8% to +8% (Vertical +50%) |
| Aperture (F/stop) | 1.9 |
| Focal length | 5.8 mm |
| Connector | 24-Pin |
| Screen size (Projected distance) | 100" to 300" |
| Operating temperature | 32° to 113°F (0° to 45°C) |
| Weight | 7.7 lb (3.5 kg) |
| Dimensions (WxDxH) | 8.74" x 12.64" x 6.46" (222 x 321 x 164 mm) |
*Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U, EB-PU1006, EB-PU1007, EB-PU1008
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
What’s in the Box:
ELPLX01WS ultra-short throw lens
Same Series Lenses
| Model: | ELPLX01 ELPLX01S7 |
ELPLX02 ELPLX02S7 |
ELPLU03 ELPLU03S |
ELPLU04 | ELPLW05 | ELPLW08 | ELPLM08 Std Lens2,4,5 |
ELPLW06 |
ELPLM09 |
ELPLM10 | ELPLM11 | ELPLL08 |
| Price: |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA1 1.03" chip |
— | 0.35:1 | 0.48–0.57:1 | 0.64–0.77:1 | 0.77–1.07:1 | 0.86–1.21:1 | — | 1.19–1.62:1 | 1.57–2.56:1 | 2.42–3.71:1 | 3.54–5.41:1 | 5.27–7.41:1 |
| D:W WUXGA2 0.76" chip |
0.35:1 | — | 0.65–0.78:1 | 0.87–1.05:1 | 1.04–1.46:1 | 1.18–1.66:1 | 1.44–2.32:1 | 1.62–2.22:1 | 2.16–3.48:1 | 3.32–5.06:1 | 4.85–7.38:1 | 7.21–10.11:1 |
| D:W SXGA+3 | — | 0.36:1 | 0.49–0.59:1 | 0.66–0.79:1 | 0.79–1.10:1 | 0.89–1.25:1 | — | 1.23–1.67:1 | 1.62–2.64:1 | 2.49–3.82:1 | 3.65–5.57:1 | 5.43–7.63:1 |
| D:W WXGA4 | 0.35:1 | — | 0.65–0.78:1 | 0.87–1.05:1 | 1.04–1.46:1 | 1.18–1.66:1 | 1.44–2.32:1 | 1.62–2.22:1 | 2.16–3.48:1 | 3.32–5.06:1 | 4.85–7.38:1 | 7.21–10.11:1 |
| D:W XGA5 | 0.36:1 | — | 0.66–0.80:1 | 0.89–1.08:1 | 1.07–1.49:1 | 1.15–1.70:1 | 1.47–2.38:1 | 1.66–2.27:1 | 2.20–3.55:1 | 3.39–5.17:1 | 4.95–7.54:1 | 7.36–10.33:1 |
| D:W 1080p6 1.04" chip |
— | 0.34:1 |
0.46–0.55:1 | 0.62–0.74:1 | 0.74–1.03:1 | 0.83–1.17:1 | — | 1.15–1.56:1 | 1.52–2.47:1 | 2.33–3.57:1 | 3.41–5.21 | 5.08–7.14:1 |
| F/stop | 1.9 | 1.9 | 2.0–2.26 | 2.0–2.1 | 2.0–2.2 | 2.0–2.2 | 1.7–2.3 | 1.8–2.3 | 1.8–2.35 | 1.8–2.4 | 1.8–2.4 | 1.8–2.5 |
| Max Lumens | 8,500 | 20,000 | U03 12,000 U03S 20,000 |
20,000 | 10,500 | 20,000 | 8,500 | 20,000 | M09 12,000 M15 20,000 |
20,000 | 20,000 | 20,000 |
| Notes | ELPLX01 is discontinued. |
ELPLX02 is discontinued.
|
ELPLU03 is discontinued. |
ELPLW05 & ELPLM08 are more cost effective if within light output limits. |
ELPLM09 is discontinued. |
1 For Pro L1490U, L1495U, L1500UH, L1505UH, L1750UNL, L1755UNL, L20000UNL, L20002UNL, EB-PU2010B, EB-PU2010W (Standard Lens is ELPLM15)
2 For Pro G7400U, G7500U, G7905U, L1060U, L1070U, L1075U, L1100U, L1200U, L1300U, L1405U, EB-PU1006W, EB-PU1007B, EB-PU1007W, EB-PU1008B, EB-PU1008W (Standard Lens is ELPLM08)
3 For Pro L1715SNL (Standard Lens is ELPLM15)
4 For Pro G7000W, G7200W (Standard Lens is ELPLM08)
5 For Pro G7100, G7805 (Standard Lens is ELPLM08)
6 For EB-PQ2008B, EB-PQ2008W, EB-PQ2010B, EB-PQ2010W, EB-PQ2213B, EB-PQ2216B, EB-PQ2216W, EB-PQ2220B
7 ELPLX01S and ELPLX02S have a mounting point for the ELPEC01 external camera.
