Epson L20000UNL

Laser LCD Projector WUXGA, 20K Lumens, No Lens, Black
Item #0600-6160 Model #V11H833820

Overview

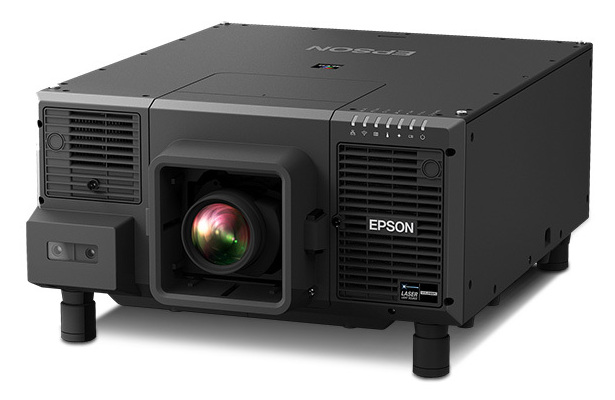

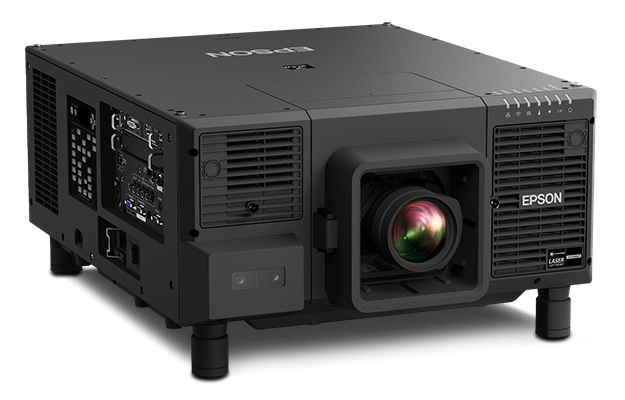

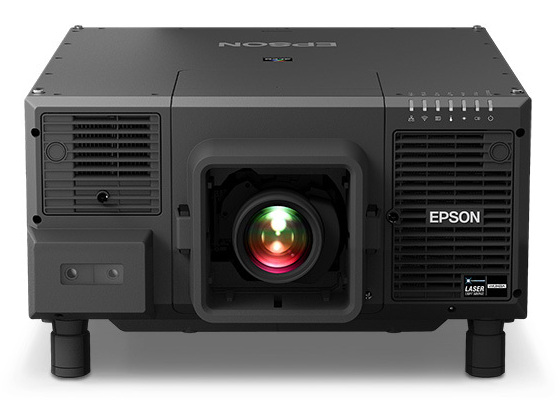

Epson Pro L20000UNL

Premium WUXGA 3LCD laser projector with 20,000 lumens

The Epson Pro L20000UNL combines a laser light source and 3LCD technology for powerful, lifelike images, delivering outstanding brightness in a remarkably compact 3-chip projector.

A premium large-venue projector, it features Full HD WUXGA resolution and 20,000 lumens of color/white brightness for ultra bright, vivid color. Its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours.

With two interface slots designed to accommodate a wide range of inputs, the Pro L20000UNL provides the ultimate in connectivity. It also supports optional lenses (sold separately), including a zero-offset ultra short-throw lens.

The Epson Pro L20000UNL sets a new standard for large-venue presentations, combining superb image quality with flexibility and ease of use. Whether it's for educational purposes, entertainment, or professional presentations, this Epson 3LCD laser projector enhances every visual experience with stunning clarity and color.

Projector also available in white as the Epson Pro L20002UNL.

Features

Key Features

  • Ultra bright, vivid color — 20,000 lumens color/white brightness1; advanced 3-chip, 3CLD technology
  • Exceptional widescreen display — Full HD WUXGA (1920 x 1200) resolution; accepts 4K content and provides 2.3 million pixels on screen
  • Solid-state laser light source — with electrostatic air filter for up to 20,000 hours of virtually maintenance-free operation2
  • Wide range of optional lenses (sold separately) — including a zero-offset ultra short-throw lens
  • Powerful — outstanding brightness from a remarkably compact large-venue projector
  • Advanced connectivity — two interface slots accommodate a wide range of inputs

Other Features

  • Designed for demanding environments — features a sealed light source and optical engine for outstanding durability for live events and fixed installations
  • Dynamic projection capabilities — with advanced tools like tiling assist, Edge Blending, and auto-color adjustment for fast installation; free software for multi-projector setup
  • Bold, vibrant images — supports High Dynamic Range (HDR) via HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
  • Mechanical shutter — protects against damage from external laser lights
  • Frame interpolation — ideal for fast-moving images
  • Wide lens shift — optimized lens and optical engine design

Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay™ Transport Partner4

Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.
2 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.
3 For convenient and reasonable recycling options, visit www.epson.com/recycle
4 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technology
Projection Method: Front / rear / ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 pixels (1920 x 1200) x 3 chips
Color Brightness - Color Light Output: 20,000 lumens
White Brightness - White Light Output: 20,000 lumens
Aspect Ratio: 16:10, 16:9, 4:3
Resolution: WUXGA (1920 x 1200)
Brightness Uniformity: 90%
Pixel Arrangement: Cross stripe
Contrast Ratio: 2,500,000:1
Color Reproduction: Up to 1.07 billion colors
Light Source Life: 20,000 hours (Normal); 30,000 hours (Extended)2
Laser Type: Laser Diode

General:

Operating Temperature: 32° to 113° F (0° to 45° C)
Power Supply Voltage: 100–240 V ±10%, 50/60 Hz AC. Requires 200–240 V for full spec. operation
Power Consumption: 1860 W (Normal Mode)
1123 W (Extended Mode)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)
Dimensions (WxHxD): 24.4" x 14.1" x 31.1" (620 x 358.5 x 790 mm) (including feet)
Weight: 109.3 lb (without standard lens, not included)
Security: Security cable hole, Kensington lock provision

Projection Lens (not included):

Type: Powered shift/focus/zoom (ELPLM15 Lens)
F-number: 1.8 – 2.35 (ELPLM15 Lens)
Focal Length: 36.0 mm – 57.4 mm (ELPLM15 Lens)
Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM15 Lens)
Throw Ratio Range: 1.57 – 2.56 (ELPLM15 Lens)
Lens Shift: Vertical: ±60 percent; Horizontal: ±18 percent (ELPLM15 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160
Interfaces:
  • 3G-SDI x 1 (SDI out x 1 - Active through)
  • HDBaseT x 1
  • 5-BNC
  • VGA x 1
Interface (Slot 1)
  • ELPIF01 (included from factory)
  • DVI-D x 1
  • HDMI® x 1 (HDCP2.2)
  • DC Out (500 mA)
Interface (Slot 2)
  • Blank from factory
  • Interface Card (optional)
  • ELPIF03
  • Display Port x 2 (DP 20p)
Other
  • USB connector Type B x 1: for Firmware update, Copy OSD Settings
  • USB connector Type A x 1: for Firmware update, Copy OSD Settings, DC Out 900 mA
  • Monitor out: Mini D-sub 15-pin x 1
  • Serial: RS-232c x 1
  • Remote: Stereo mini
  • Wire LAN x 1 etherCON
Fan Noise: 45 dB (Normal Mode); max. 38 dB (Quiet Mode)

Remote Control:

Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, User ID, Auto, Aspect, Color Mode, Menu, Slot 1, Slot 2 and more
Operating Distance: 49 ft
Operating Angle: Right/left:     front: ±50 degrees; rear: ±40 degrees
Upper/lower: front: ±50 degrees; rear: +30 degrees



Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118. Some lenses will not support the maximum brightness level of this projector.
2 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04–0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first.

Accessories

Optional Lenses

Model: ELPLX02*
ELPLX02S**
ELPLU03S ELPLU04 ELPLW08 ELPLW06

ELPLM15
Std Lens

ELPLM10 ELPLM11 ELPLL08
Price:
Add to Cart

Add to Cart

Add to Cart
$11,219.00
Add to Cart
$3,348.00
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
  ELPLX02 lens ELPLU03 lens ELPLU04 lens  ELPLW08 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
D:W WUXGA
1.03" chip
0.35:1 0.48 – 0.57:1 0.64 – 0.77:1 0.86 – 1.21:1 1.19 – 1.62:1 1.57 – 2.56:1 2.42 – 3.71:1 3.54 – 5.41:1 5.27 – 7.41:1
F/stop 1.9 2.0 – 2.26 2.0 – 2.1 2.0 – 2.2 1.8 – 2.3 1.8 – 2.35 1.8 – 2.4 1.8 – 2.4 1.8 – 2.5
Max Lumens 20,000 20,000  20,000 20,000 20,000 20,000 20,000 20,000 20,000

*  ELPLX02 is discontinued.

** ELPLX02S has a mounting point for the ELPEC01 external camera.



Other accessories

VCM-U Chief mount Ceiling mounts
ELPAF58 Filter Replacement air filter (ELPAF58)
ELPHD01 HDBaseT transmitter for L1495U HDBaseT transmitter (ELPHD01)

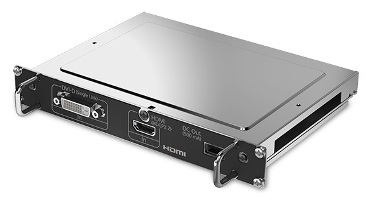

ELPIF01 HDMI/DVI-D Interface Board (ELPIF01)
Add to Cart

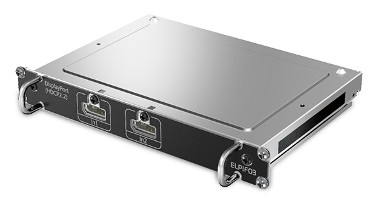

ELPIF03 DisplayPort Interface Board (ELPIF03)
Add to Cart

Downloads

Quick Reference Guide

Epson Projector Professional Tool Operation Guide (see below)

Warranty Statement


Epson Projector Professional Tool Software

  • Intuitive operation and control — manage multiple networked projectors
  • Save time — spend less time making adjustments via a remote control
  • Powerful projection tools — easily access tools such as geometric correction and Edge Blending
  • Simple setup — projectors in the same network are automatically found and displayed
  • Compatible — works with Windows 7/8.1/10 devices and displays with WXGA or higher resolution; supports Epson Pro L1000 Series, Pro L12000Q, Pro L20000U and Pro L25000U projectors
  • Convenient — supports wired and wireless networks
  • Auto calibration and screen matching — to quickly adjust the brightness and color of networked projectors via their built-in cameras

Download for free
