Barco XDL-4K30

RGB Laser, 3-DLP Projector, 4096x2160, 30,000 CL
Item #0600-4208 Model #R9006675

Overview

Barco XDL-4K30

30,000 lumens, 4K, 3-chip DLP RGB laser large venue projector

The Barco XDL-4K30 is a 30,000-lumen projector with extraordinary colors, made for bigger screens, with more pixels and more impact. It features incredible RGB laser performance, signal flexibility up to a comfortable 120 Hz, and virtually no alignment time.

Images that speak

Offer visitors crisper, more realistic contrast for greater impact with images of breathtaking depth thanks to their native 4K resolution up to 120 Hz.

Cost-saving design

Want to drive down your cost-per-lumen? The XDL-4K30 Barco projector is the answer. Its RGB laser light source slashes image flicker and lamp-related costs and maintenance (such as lamp replacements). Compared to xenon projectors, the XDL-4K30 consumes 40% less power and lets you re-use your existing Barco XLD+ lenses. Expect a lifetime of up to 20,000 hours with minimum downtime with this reliable 3-Chip DLP projector.

Easy to set up and use

Installing one Barco projector is always easier than having to install several. It means less equipment to transport and set up, and fewer possible points of failure. The XDL-4K30 speeds up installation by reducing alignment time. This large venue projector provides an exceptional lens shift of up to 100% so you can install it anywhere you like. You can also easily match images to your projection surface using on-board real-time warping and blending.

3D that really stands out

Get the absolute most impact with superb 3D performance based on color separation using twin wavelengths and a more effective use of light. Forget the issue of ghosting — there is none. And project onto white rather than silver screens.

In summary, the Barco XDL-4K30 is a standout 3-chip DLP RGB laser projector that revolutionizes large venue projections with its stellar 30,000-lumen brightness and superior 4K resolution. This large venue projector not only offers unparalleled visual clarity but also boasts an energy-efficient design that slashes lamp-related costs and extends its operational life up to 20,000 hours. The XDL-4K30 emerges as a cost-effective, high-quality solution for venues aiming to deliver extraordinary visual experiences.

Specifications

Projector type Native 4K 3-chip DLP digital projector up to 120 Hz
Technology 1.38" DMD™ x3
Resolution 4,096 x 2,160
Brightness Up to 28,000 center lumens using HC lenses / Up to 30,000 center lumens using HB lenses
Native contrast ratio 2,800:1 (typical using HC lenses) / 500:1 ANSI contrast (typical) | 2,000:1 (typical using HB lenses) / 450:1 ANSI contrast (typical)
Prime lenses HC: 1.13-1.72; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35 / HB : XLD 0.8; 1:0 ; 1.45-1.8; 1.8-2.4; 2.2-3.0; 2.8-5.5; 5.5-8.5
Optical lens shift V: ±100% / H: ± 40% (lens dependent)
Light source Direct coupled RGB lasers 6P
Light source lifetime 20,000 hrs*
Color correction P7
Optical dowser Standard
Orientation Tilt 45° up and 30° downwards | Rotation – 20 degrees / +90 degrees (=Portrait)
Sealed DLP™ core standard

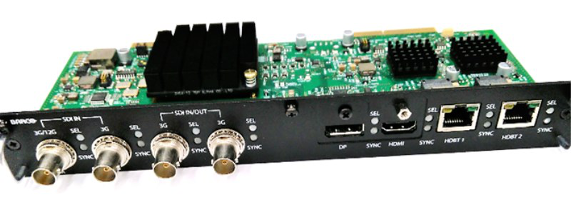

Inputs Slot 1 :Dual HDBt; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad 3G/12G SDI / BarcoLink | Slot 2: Quad DP1.2
Input resolutions From NTSC up to 4K (4,096 x 2,160) 120 Hz
Picture-in-picture Two sources simultaneously
CLO (constant light output) Standard
ScenergiX Horizontal and vertical edge blending, Direct adjust OSD + toolset
Image processing Embedded warp & blend engine
Keystone correction Yes
Integrated web server Yes
Software tools Projector Toolset
Control XLR wired + IR, RS232, Wifi (opt), GSM (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi (optional)
Dimensions (WxLxH) Projector: 744 x 1,445 x 706 mm / 29.3 x 56.9 x 27.8 inches (with feet, no lens) one chillers, with the following dimensions: 701 x 701 x 800 mm / 27.6 x 27.6 x 31.5 inches
Weight Projector: 200kg (~440lb) / Chiller: ~115kg (~250lb)
Cooling liquid hose length 2.5-5-10m (8.2-16.4-32.8ft)
Power requirements Projector: 200-240/346-415V 50-60Hz 16A 3W+N+PE (Y connection) / Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG /Circuit breaker range: 25A to 40A | 200-240V 3W+PE 28A 50-60Hz (/\- connection) / Power cord size: 6 sq mm, 8AWG / Circuit breaker: 40A
Chillers: 230/400V 3W+N+PE 16A, 2.5 sq mm (Y connection) or 208V / 3W+PE (/\- connection) / Max. 16A per phase
Ambient temperature 10-35°C (95°F) Max. (projector and chillers)
Operational humidity 5-80% (non condens)
Power consumption Projector @ full laser power: 3.5 kW (2D or Polarization 3D) / 2.0 kW (Barco Laser3D - 6P)
Chillers @ full laser power: 2.0 kW (2D or Polarization 3D) / 1.6 kW (Barco Laser3D - 6P)
3D systems Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses / Active glasses systems / Polarization recuperation systems
Safety class Class 1, RG3
Certifications CE; ETL/UL/FCC
*Note *Less than 20% decrease during a runtime of 20,000 hrs

Lenses

HB (High Brightness) Lenses

Model R9852945 R9852950 R9852090 R9852092 R9852094 R9852100 R9852920
  Barco lens R9852945 Barco lens R9852950 Barco lens R9852090 Barco lens R9852092 Barco lens R9852094 Barco lens R9852100 Barco lens R9852920
D:W 0.72:1 1.0:1 1.45 - 1.8:1 1.8 - 2.4:1 2.2 - 3.0:1 2.8 - 5.5:1 5.5 - 8.5:1
f/stop 2.5 2.5 2.5 2.5 2.5 2.5 2.5

HC (High Contrast) Lenses

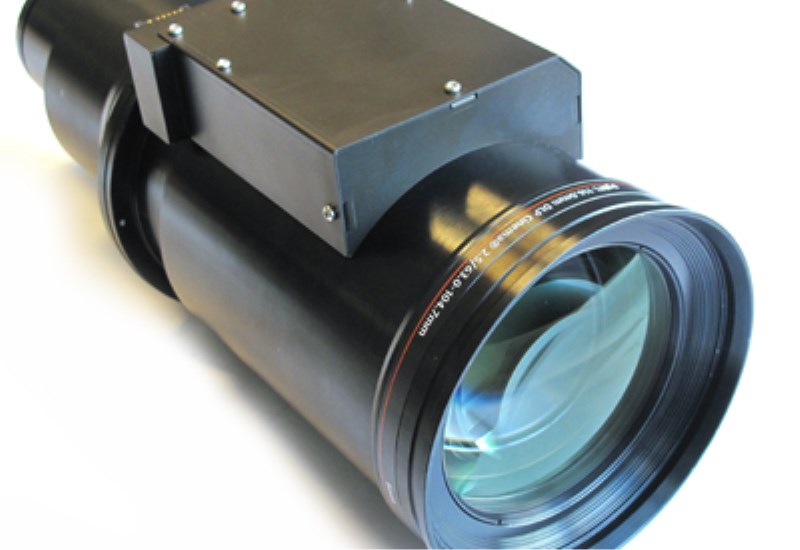

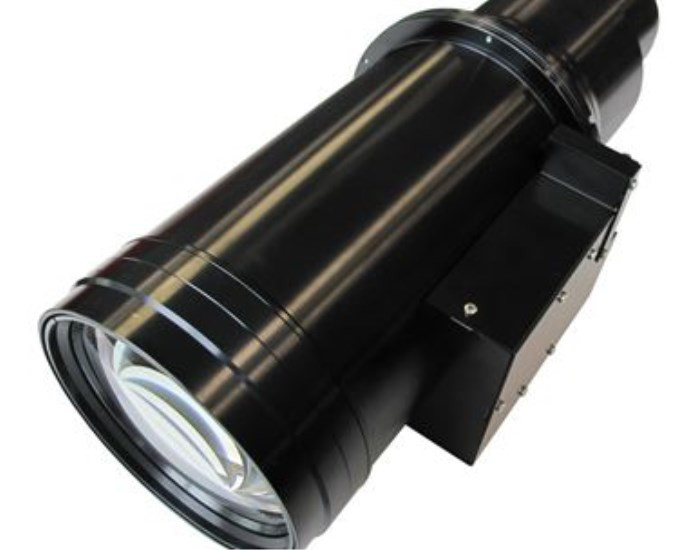

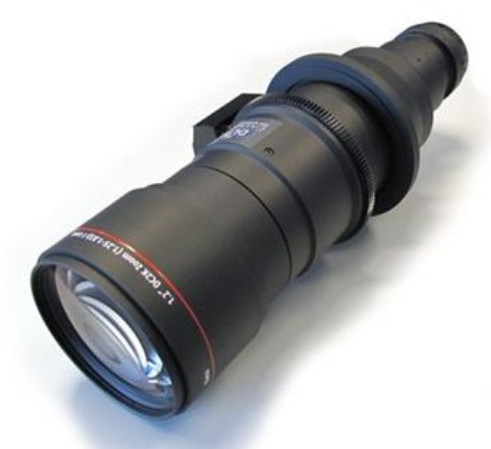

Model R98565042 R98562942 R98562972 R98563002 R98563032
$6,929.00 Add to Cart
  Barco lens R98565042 Barco lens R98562942 Barco lens R98562972 Barco lens R98563002 Barco lens R98563032
D:W 1.13 - 1.72:1 1.35 - 1.86:1 1.46 - 2.10:1 1.65 - 2.60:1 2.00 - 3.35:1
f/stop 2.5 2.5 2.5 2.5 2.5
