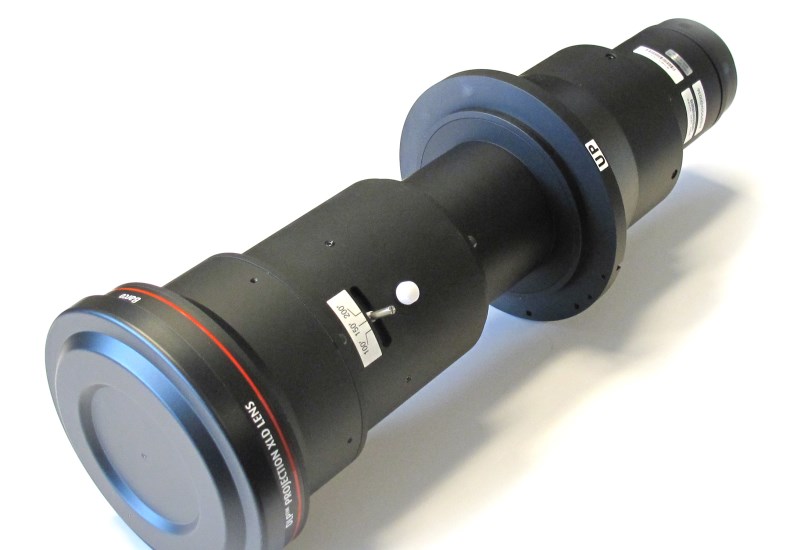

Barco R9852950
XLD HB 1.01:1 (1.38" DMD) Fixed Lens
Item #0601-1315 Model #R9852950
Specifications
Barco R9852950
XLD HB (1.01:1) Fixed Lens
| Throw ratio | 1.01:1 (1.38" DMD) |
| F/stop | 2.5 |
| Focal length | 28.95 mm |
Same Series Lenses
XLD HB (High Brightness) Lenses
| Model | R9802580* | R9852945 | R9852950 | R9856506 | R9856527 | R9856529 | R9855947 | R9852920 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W 4K (1.38") |
0.38:1 | 0.72:1 | 1.01:1 | 1.13–1.72:1 | 1.46–2.10:1 | 2.00–3.35:1 | 2.53–4.98:1 | 4.98–7.68:1 |
| F/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
* Requires UST lens bracket (R9802714), sold separately
XLD HC (High Contrast) Lenses
| Model | R98529502 | R98565062 | R98565272 | R98565292 |
 |
 |
 |
 |
|
| D:W 4K (1.38") |
1.01:1 | 1.13–1.72:1 | 1.46–2.10:1 | 2.00–3.35:1 |
| F/stop | 2.5 | 2.5 | 2.5 | 2.5 |
