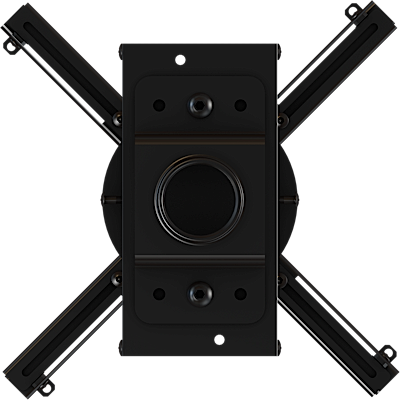

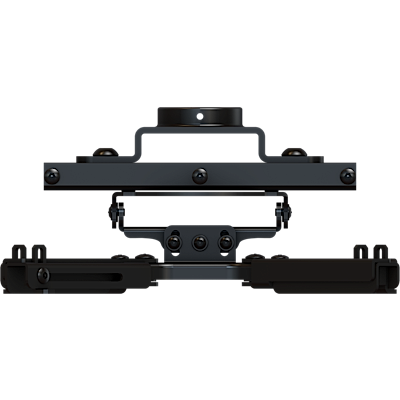

Crimson JR2A
Universal Ceiling Mount with 3" Lateral Adjustment range
Item #7612-7204
Model #JR2A
Features
- 3" of post installation adjustment either front to back or lateral
- Can be used to provide limited zoom adjustment to projectors with fixed lenses
- Ideal for horizontally positioning a new projector into the same lens position as the old
- Completely pre-assembled mounting interface for quick installation
- Fully adjustable roll, pitch and yaw
- 12 total adjustment points; 6 for pitch and 6 for roll
- Mounts to any 1.5" NPT threaded pipe or mounts flush to the ceiling
- Pre-sorted hardware pack for easy installation
Specifications
| Weight capacity | 70lb (31.8kg) |
| Min mounting pattern | 6.6" (166mm) diameter |
| Max mounting pattern | 18.1" (460mm) diameter |
| Sliding adjustment | 3" total travel |
| Height | 4.51” (114.5mm) from ceiling to projector surface |
| Pitch (up/down) | +/- 20° |
| Roll (side to side) | +/- 8° |
| Rotation (yaw) | 360° |
| Mounting interface | 1.5” NPT thread compatible |
| Construction | aluminum/high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 4.4lb (2kg) |
| Package specifications | 12”x6”x5” |
| Color | black |
| Warranty | 10 years |
