Chief VCT-UW
Large Venue Projector Mount, White
Item #7612-2401 Model #VCTUW
Features
Chief VCT-UW

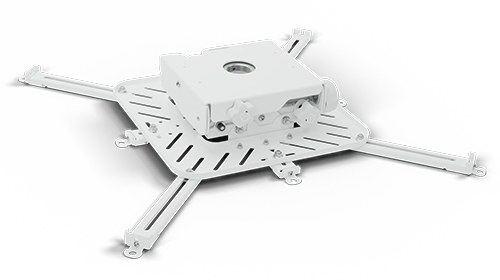

VCT Large Venue Projector Mount (White)
The VCT Large Venue Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with projectors between 50–150 lbs (22.7–68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.
Please check the Compatibility tab to determine if this mount will work with your projector.
Key Features
- Low Profile: The new VCT is 30% slimmer than the VCM mount
- Lightweight: The new VCT is 25% lighter than the VCM mount
- Sleek Aesthetic: Matching knobs & hardware
- Tool-free MicroZone+ Pitch Adjustment
- The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
- Can be hand adjusted using the tool-free knob or driven with a 1/2" (13mm) socket
- PrecisionSet™ Technology to lock in pitch adjustments
- Tool-free MicroZone™ Roll & Yaw Adjustments
- Gear driven tool-free knob adjustments
- Lockout nuts enable additional image lock security
Specifications
| Adjustments | Micro Roll ±5° Micro Pitch ±20° Micro Yaw ±10° Macro Yaw 360° |
| Color | White |
| Solution Type | Custom, Universal |
| Weight Capacity | 150 lbs (68 kg) |
Downloads
Compatibility
To check whether this item is compatible with your equipment, use the form below.
