Chief RPA-U
Universal Projector Mount, Black
Item #7612-0153 Model #RPAU
Features

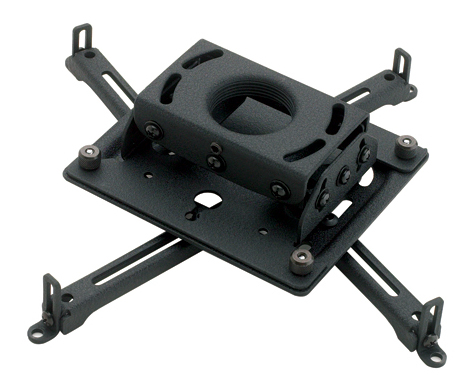

- Ships with newly designed SLB universal bracket to fit most inverted projectors on the market
- Independent roll, pitch and yaw for quick and precise projector image registration

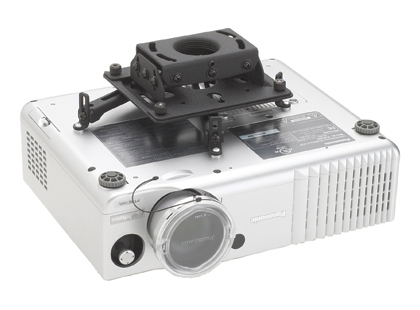

- Quick projector connect and disconnect with convenient lamp and filter access on most projectors
- Maintains registration when disconnected and doesn't affect preset adjustments
- All-Points™ Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
- Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
- Integrated cable management through top of mount without additional accessories
Specifications
| Adjustments: | Roll: 4° Pitch: 25° Yaw: 360° |
|---|---|
| Certifications: | UL Listed |
| Color: | Black |
| Overall Dimensions (H x W x D): | 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm) |
| Shipping Weight: | 5.75 lbs |
| Solution Type: | Universal |
| Weight Capacity: | 50 lbs (22.7 kg) |
Files
Compatibility
To check whether this item is compatible with your equipment, use the form below.
