Blackmagic ATEM Mini Extreme ISO
Overview
BlackMagic Design ATEM Mini Extreme Iso
Low cost, multi-camera, live production with advanced broadcast features
ATEM Mini switchers make it easy to create professional multi-camera productions for live streaming to YouTube, and innovative business presentations using Skype or Zoom. Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.
The built in DVE allows exciting picture-in-picture effects, perfect for commentary. There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro and ATEM Mini Extreme models add live streaming and recording to USB disks. ATEM Mini even has secret broadcast features for high end work.

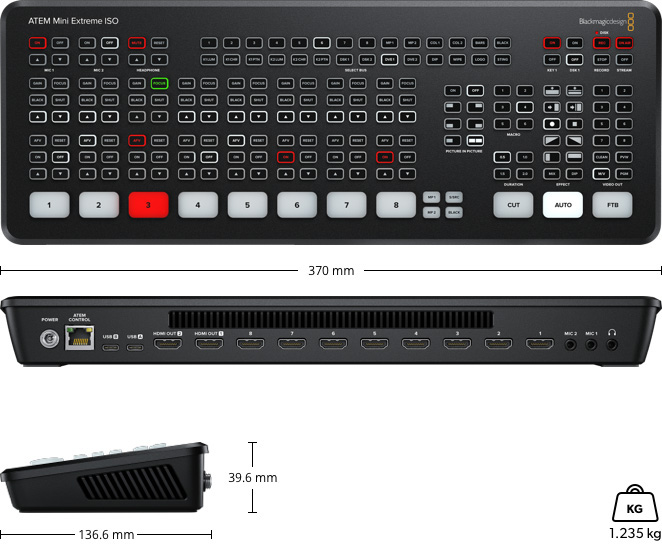

ATEM Mini Extreme is an advanced switcher for true professionals. You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views.
This ATEM Mini Extreme ISO model includes all of the above features, plus it also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved, allowing the project to be recreated and edited later with separate ISO recordings.
Media pool images used are also saved with the video files. The video files include metadata tags such as synced timecode and camera numbers. Imagine re-editing your show with new color grades, effects and graphics! Even the audio sources are all recorded so you can professionally remix your audio.
Note: ATEM Mini Extreme starts at 5:30 and the ISO version starts at 31:08 in the above video.
Features
- Includes up to 8 standard converted HDMI inputs (automatically converts any HDMI input format)
- Connects up to 4 independent cameras
- Outputs to HDMI video and USB Webcam
- Adds exciting video effects
- Works with professional microphones
- Includes free ATEM software control panel (for Mac or Windows)
- DVE (Digital Video Effects Processor) for picture-in-picture, transitions and effects
- Professional broadcast transitions
- Built-in graphics with Photoshop plug-in
- Includes new ATEM advanced Chroma Key
- 20 stills media pool for titles
- Built-in Fairlight Audio Mixer with 6 Band EQ, Compressor and Limiter
- Can be controlled remotely through Ethernet connection
- Records to an external recorder1
- Fast to set up and easy to use
- Access to powerful broadcast features such as those used by switchers in high-end broadcast studios
- Direct recording of streaming data to USB flash disks in H.264 (which you can upload to any online video site, such as YouTube and Vimeo)
- Built-in hardware streaming engine for live streaming via the built-in Ethernet connection. Live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings.
- Multiview that lets you see all 4 video inputs, plus preview and program on a single HDMI television or monitor. Multiview also includes status for recording, streaming and the Fairlight audio mixer.
- Buttons for recording and streaming control
- Output selection buttons that let you change the video output between cameras, program and multiview
- Supports connecting an Apple or Android phone to the USB port to use mobile data when doing live production on location
Additional features found only on the ATEM Mini Extreme:
- 8 HDMI inputs: 4 to use for cameras and the other 4 can be connected to a virtual set computer for the rendered backgrounds
- 2 separate HDMI outputs
- 2 USB ports and a headphone connection
- Supports 2 low latency direct loops
- 4 ATEM Advanced Chroma Keyers: that’s a keyer per camera for fixed camera virtual set production
- 6 picture-in-picture DVEs2
- 2 media players

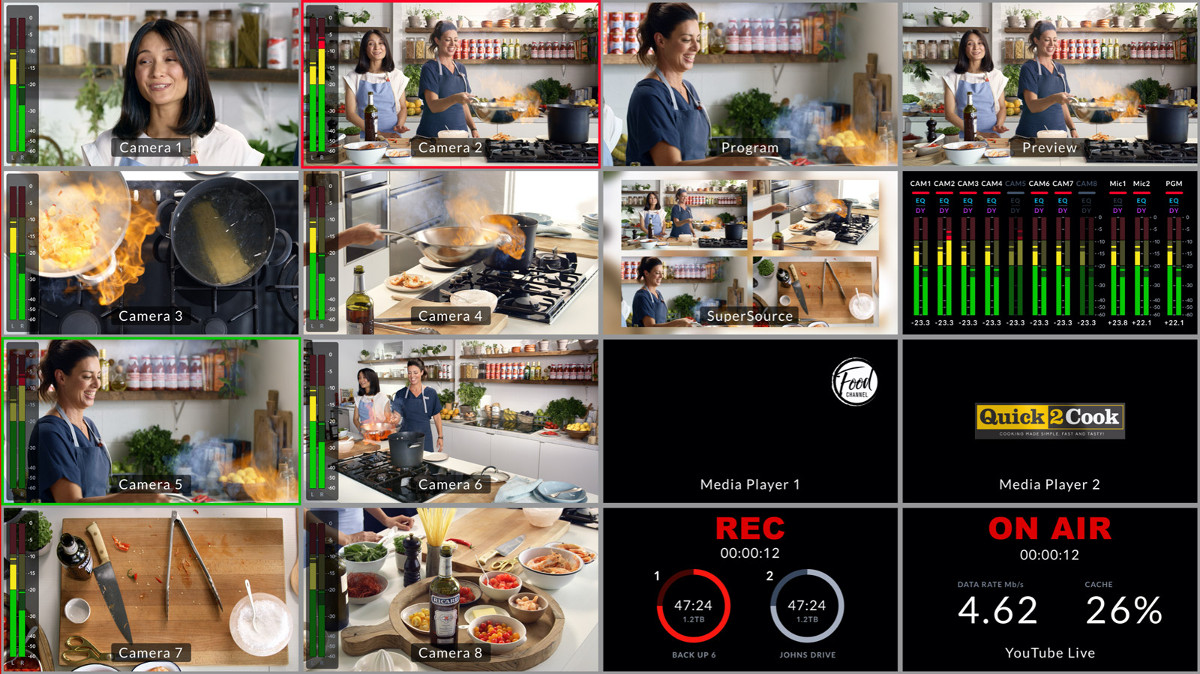

- Multiview with up to 16 custom views
Additional features found only on the ATEM Mini Extreme ISO:
- Records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video.
- A DaVinci Resolve project file is saved, allowing the project to be recreated and edited later
1 The HDMI program output is perfect for connecting ATEM Mini to an external recorder or monitor. ATEM Mini supports recorders such as Blackmagic Video Assist. You get a high quality output with switcher program video, plus live audio from the internal audio mixer. The HDMI output can even be connected to video projectors in large venues. If you connect ATEM Software Control you can even ISO record from one of the inputs. On the more advanced ATEM Mini Pro and ATEM Mini Extreme models, you can also generate multiple formats by recording from the HDMI program output in ProRes, while simultaneously using the built-in recording to H.264 video stream on a USB flash disk.
2 In addition to 2 independent DVEs, there's also a powerful SuperSource multi layer processor with 4 extra DVE layers plus a background layer, that all appear to ATEM Mini Extreme as an additional input source. Any ATEM Mini Extreme video input can be used for each SuperSource DVE, then it’s all layered together over a media pool custom background. SuperSource is perfect for doing multiple picture-in-picture displays with people being interviewed because you can set up the effect before putting it to air, still keeping both main DVEs free for other tasks. SuperSource is just like having an extra multi-layer VFX switcher built in.
Possible Applications:
- Streaming live interviews
- Business presentations via Skype
- Live streaming eSport competitions
- Kickstarter and investor updates
- Education and training
What's in the Box:
- ATEM Mini Extreme ISO External
- 12V DC power supply with international socket adapters
Warranty:
12 months limited manufacturer's warranty
