Picture Quality at the Pinnacle of High Definition. Eight Multi-format Channels from Sixteen Inputs

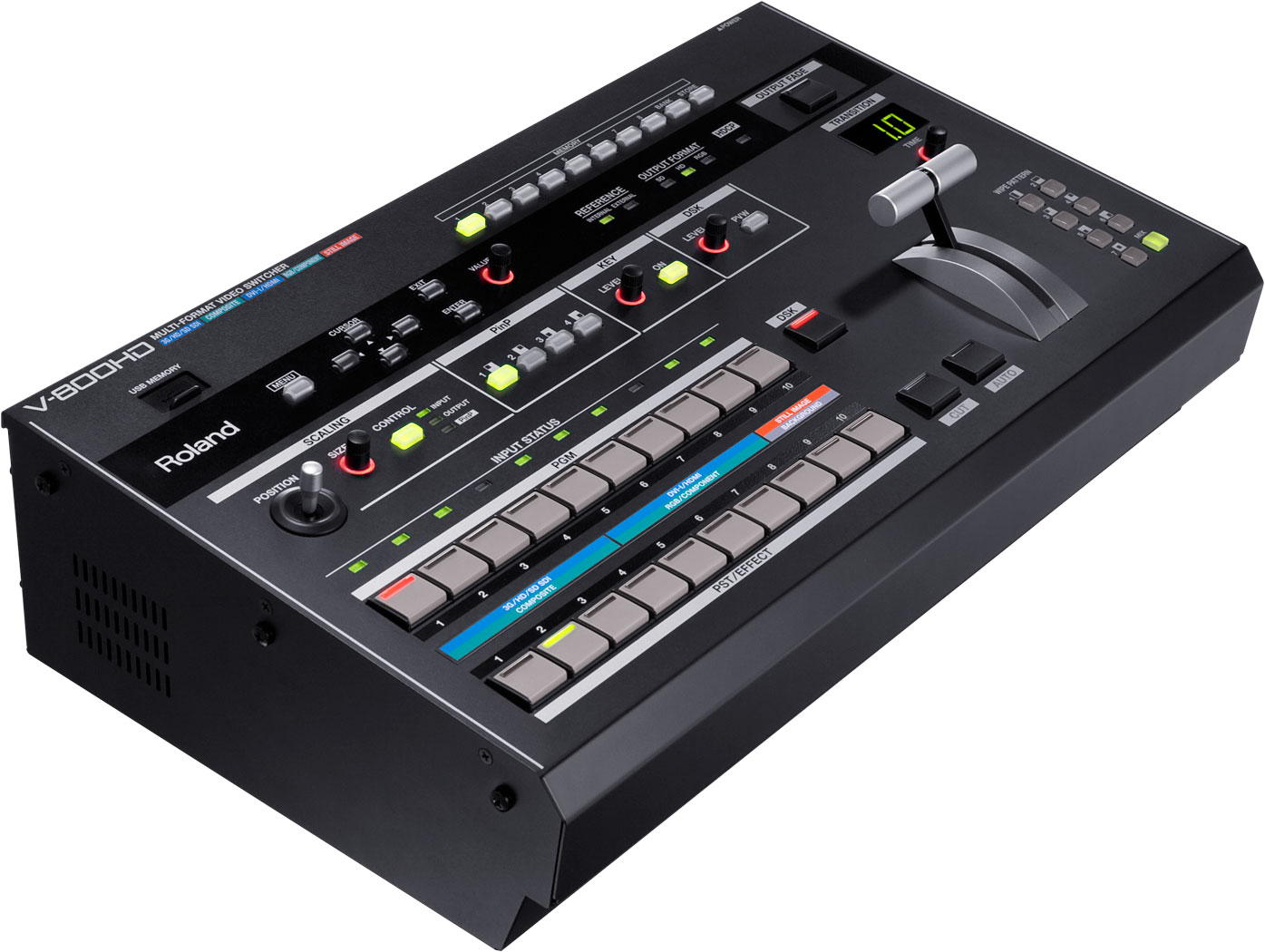

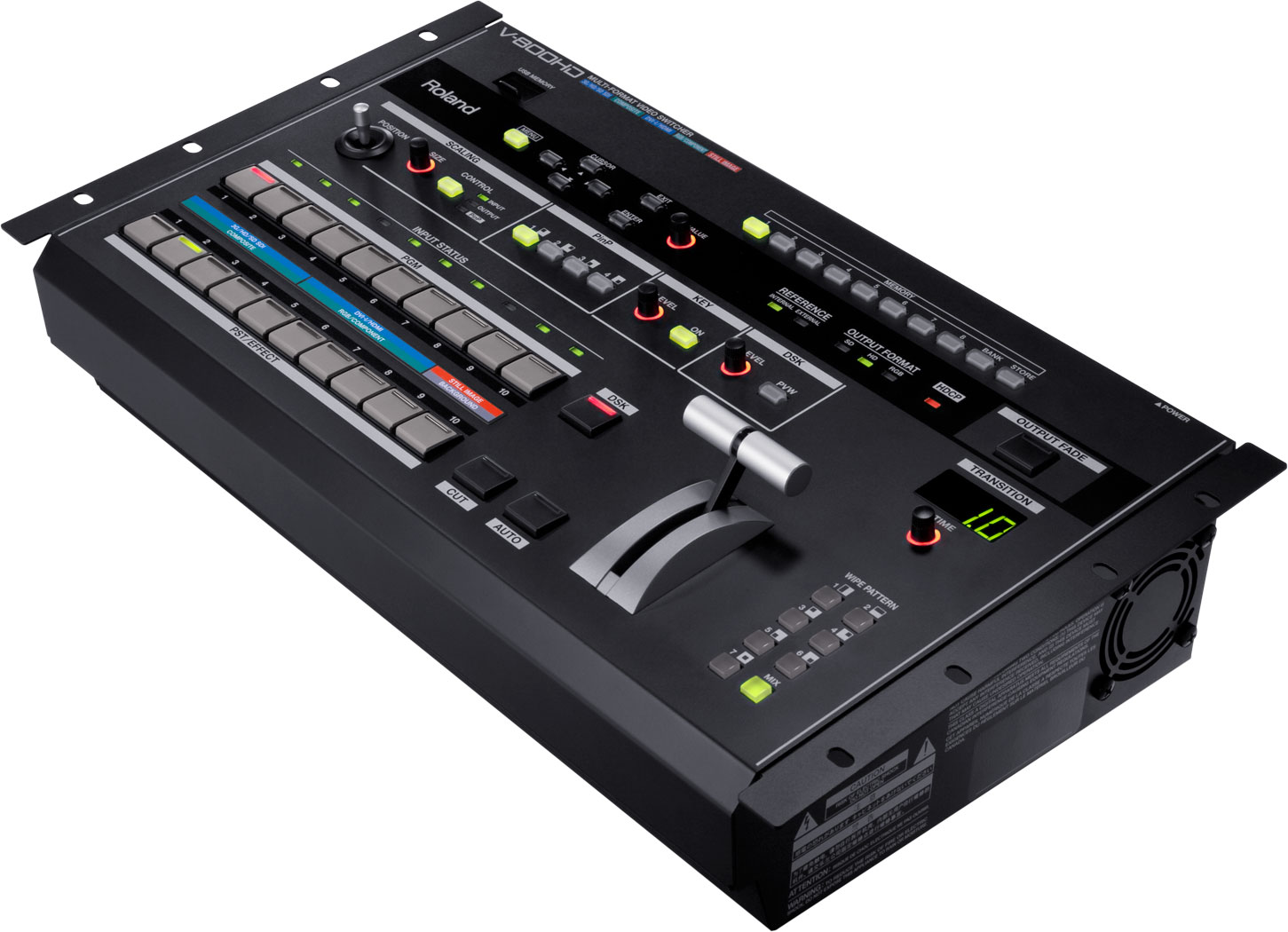

The V-800HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect any type of source whether it be digital or analog, computer or video format.

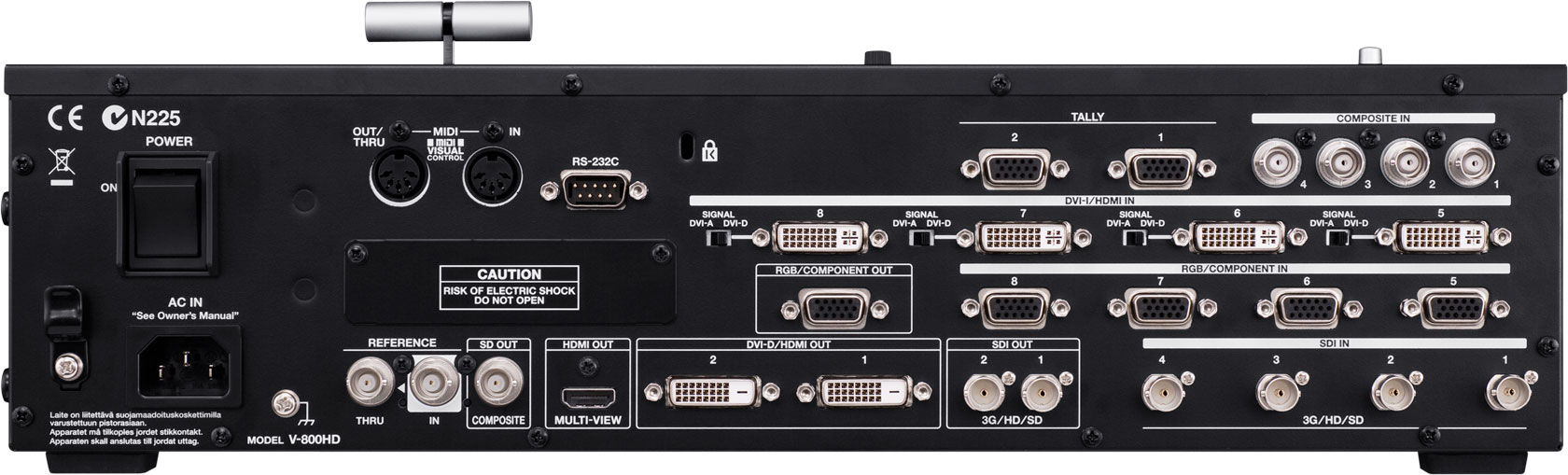

• 8 Channel, 16 Input (4 SDI, 4 Composite, 4 DVI-I/HDMI, 4RGB/Component)
  6 Output (2 SDI + 2 DVI-D/HDMI + RGB/Component + Composite)
• 4:4:4/10-bit Internal Processing
• 1 M/E (Key, PinP) + DSK
• Built-in frame synchronizers and scalers on all inputs
• SDI support: 3G, HD, and SD
• DVI-D / RGB / HDMI support
• Input status LEDs
• HDCP support
• Live access to two still-image sources
• 10 assignable cross-points

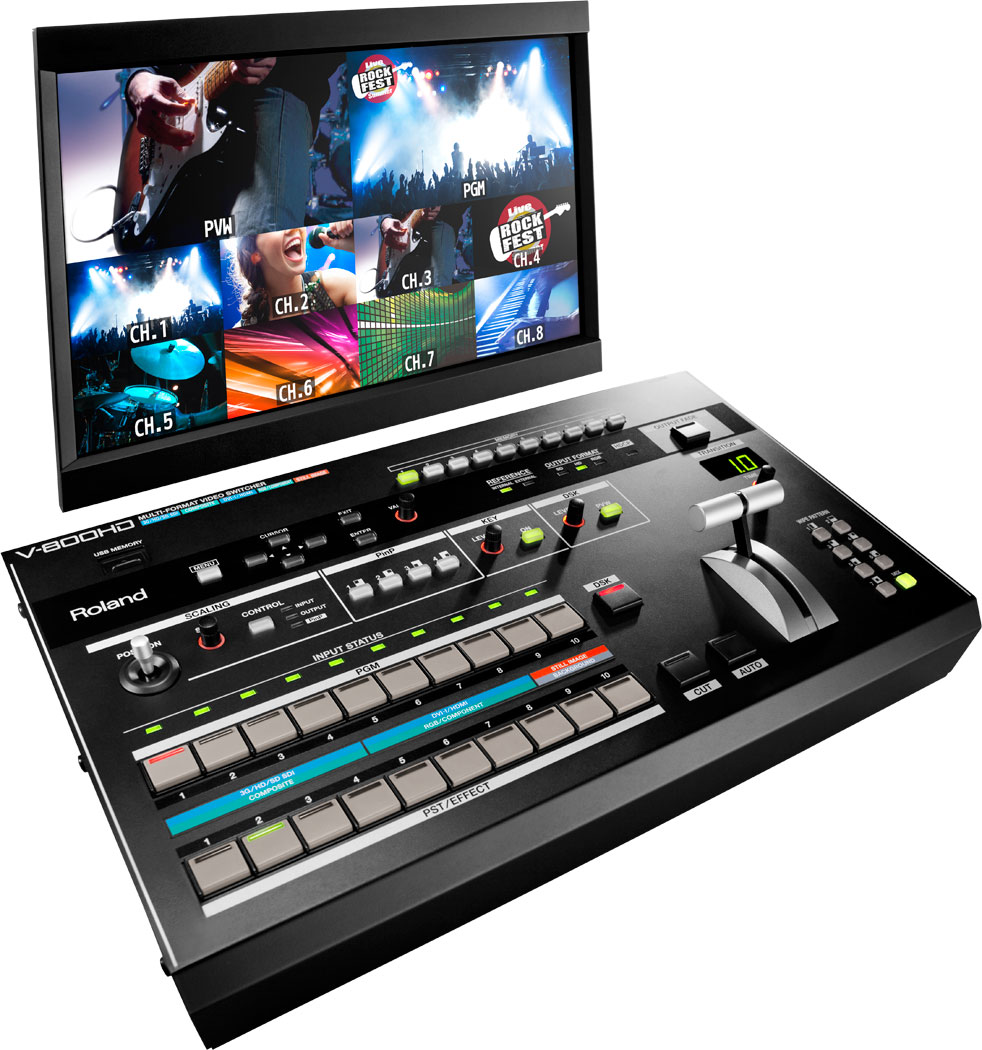

• Multiviewer monitor output (Switch between Y/Cr/Cb and RGB modes)

V-800HD_Owner's Manual_(e03)

V-800HD_Manual_Addendum_ver102_e01

V-800HD_Manual_Reference_(e02)

V-800HD_Block_Diagram
