Panasonic AW-UE100KPJ
Overview

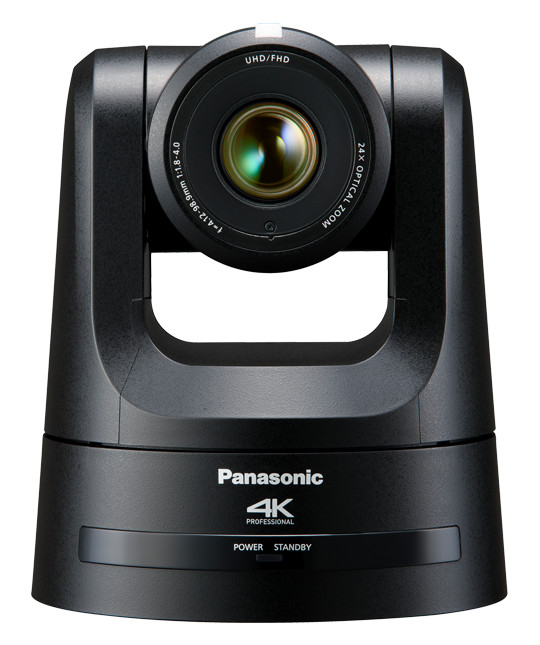

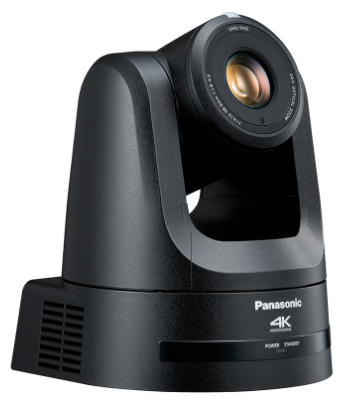

Panasonic AW-UE100KPJ
World's First 4K/60p PTZ Camera supporting NDI and SRT
The Panasonic AW-UE100KPJ is a 4K NDI professional streaming PTZ camera with a compact body. It supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission.
The AW-UE100KPJ is also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Note: This is a black camera. For a white model, see the AW-UE100WP.
Key Features
- Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
- Supports 4K 60p shooting and 12G-SDI output
- Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
- Supports FreeD for building AR/VR systems
- Adopts new mechanical pan/tilt for improved responsiveness and quietness
Features
- Supports a wide variety of IP transmission protocols including NDI, NDI|HX, and SRT:
- High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps provide high-quality low latency live video transmission with a single LAN cable.
- High efficiency low bandwidth NDI|HX (HD) enable video transmission at low bitrates.
- SRT maintains stability while transmitting high-quality video, even in unstable network environments.
- RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
-
Supports 4K 60p shooting and 12G-SDI output: Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. The AW-UE100KPJ PTZ camera offers PoE++ support for camera power, control and video transmission over a single cable. Additionally, a power adapter is included with the camera.
-
Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom: A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, while the 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
-
Supports FreeD for building AR/VR systems: FreeD command output enables connection with AR/VR (Augmented Reality / Virtual Reality) systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
-
Adopts new mechanical pan/tilt for improved responsiveness and quietness: The inclusion of a Direct Drive mechanism improves the responsiveness and quietness of pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, and so on.
Specifications
| GENERAL | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply) | |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Software authentication (LLDP) is supported) |
|
| Current Consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Allowable Humidity Ranges | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket) Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket) |
|
| Dimensions (WxHxD) | 169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket) |
|
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ | |
| CAMERA UNIT | ||
|---|---|---|
| Imaging Sensors | 1/2.5-type 4K MOS x 1 | |
| Effective Pixels | Approx. 8,490,000 pixels | |

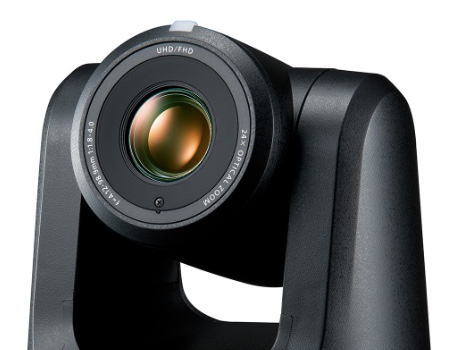

| Lens | Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3-29/32 inches); 35 mm (1-3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23-5/8 inches)] |
|
| Zoom | • Optical zoom: 24x • i.Zoom: UHD 28x, FHD 36x • Digital zoom: 1.4x, 2x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F4, 2000 lx (When normal mode is selected) F5.6, 2000 lx (When High Sens mode is selected) |
|
| Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) | |
| S/N | 60dB(typ) (When [Shooting Mode] is [Normal]) | |
| Horizontal Resolution | 1500 TV lines Typ (Center area) | |
| Gain Selection | Auto, 0 dB to 36 dB*1 Super Gain function equipped : 37 dB to 42 dB |
|
| Frame Mix*2 | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| Synchro Scan | 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 23.98p/24p | 24.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3 | |
| White Balance | ATW : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –99 % to 99 % | |
| Scene File | Scene1, Scene2, Scene3, Scene4 | |
| Output Format | SDI Output: 4K | 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 |
| SDI Output: HD | 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| HDMI Output: 4K | 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 | |
| HDMI Output: HD | 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| SYNCHRONIZATION SYSTEM | ||
|---|---|---|
| Internal/External synchronization (BBS/Tri-level sync) | ||

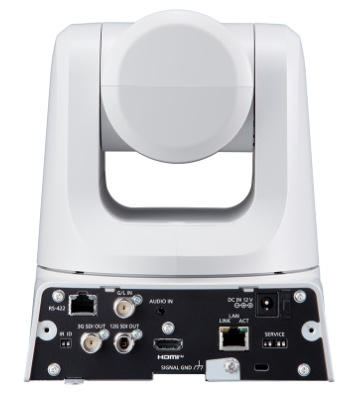

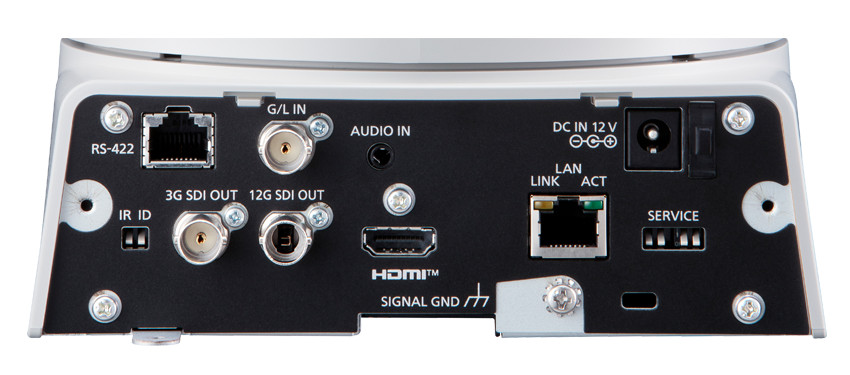

| INPUT | ||
| Input Connector | DC 12 V IN, G/L IN | BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1) |
| MIC/LINE input | Compatible (SDI/HDMI/IP) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V • During LINE input Input level: –10 dBV • Input volume variable range: –36 dB to 12 dB (3 dB step) • Embedded audio output level: –12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP) |
|
|
OUTPUT |
||
| Video Output | HDMI | HDMI 2.0 connector 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT | SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| 3G-SDI OUT | SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| INPUT/OUTPUT | ||
|---|---|---|
| Input/Output Connector | LAN | LAN terminal for IP control and video transmission (RJ-45) 100BASE-TX/1000BASE-T PoE++ power terminal (IEEE802.3bt compliant) |
| RS-422 | CONTROL IN RS-422A (RJ-45) | |
| PAN-TILT HEAD UNIT | ||
| Camera/Pan-tilt Head Control | IP connecting cable | LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*6 | |
| Pan/tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode) • 3 speed modes installed Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7 |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*8 | |
| Quietness | NC25 or less | |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS*9 | ||
| Supported Operating Systems and Web Browsers | Windows | Microsoft® Windows® 10 Microsoft Edge Google Chrome |
| Mac | MacOS 10.13/Safari 13, MacOS 10.14/Safari 13 MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome |
|
| iPhone / iPad | iOS Safari iPadOS |
|
| Android | Android OS Google Chrome |
|
| IP STREAMING | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI® High Bandwidth, NDI® HX2* | |
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission Priority | Constant bit rate Frame rate Best effort |
|
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps |
|
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Frame Rate | [60Hz] 30fps [50Hz] 25fps |
|
| Max Bit Rate | 8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP |
| IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP | |
| OTHER FUNCTIONS | ||
| NDI® support | NDI® HX2: Included as standard NDI® High Bandwidth: Included as standard |
|
| Tally LED Display Color | red / green | |
Notes
*1: 1 dB steps.
*2: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
*3: Native output.
*4: OVER 59.94i output (your monitor may recognize the signal as 59.94i).
*5: Use of an STP (shielded twisted pair) cable is recommended.
*6: To ensure safety, the unit must be secured using the mount bracket supplied.
*7: Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.
*8: Depending on the pan or tilt position, the camera may be reflected in the image.
*9: Supported OS indicated are for browsers current as of August 2020. See "Service and Support / PASS" on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support.
*10: It denotes "1080/23.98p over 59.94p"
* NDI® HX2 support is available when the firmware version is 1.56 or later. 4K image output is not supported in NDI® HX2 mode.
* NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
