Sony VPL-FHZ65W
Features
Sony VPL-FHZ65W
WUXGA laser projector with bright 6,000-lumen images and flexible installation
The Sony VPL-FHZ65W laser projector is ideal for a wide range of business, education and entertainment applications. The powerful Z-Phosphor laser projector teams up with Sony's advanced BrightEra 3LCD technology to deliver extremely bright, detail-packed WUXGA resolution images with a generous 6,000 lumens brightness and rich, stable colors. Constant Bright Maintains the same brightness throughout the 20,000 hours recommended life span.
This Sony projector has a laser light source allowing for up to 20,000 hours* of virtually zero-maintenance operation without the worry of sudden lamp failures. A new automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving feature, significantly driving down total lifetime ownership costs.
Offering a stylish new blend-in design, tidy cable management and low fan noise, the VPL-FHZ65W fits smoothly into almost any environment — from academic institutions and corporate settings to medical training, public sector organizations, visitor attractions, and retail spaces.
Seamlessly blend images from multiple projectors to create super-sized displays, or project accurately proportioned images onto angled or curved surfaces. Mount the Sony laser projector at any angle, even on its side or upside down. Setup is easier than ever with a user-friendly installation menu.
*Actual hours may vary depending on usage environment.
Features
-
Very high image quality with Sony's advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source
The Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure high 6000 lumen image brightness with vivid, natural color reproduction.
-
Constant Brightness
Constant Bright Maintains the same brightness throughout the 20,000 hours recommended life span.
-
Advanced picture refinement technologies
Picture quality is boosted by advanced processing featured on Sony home cinema projectors. Reality Creation uses a powerful pattern-matching database to optimize every pixel. Contrast Enhancer actively analyses and refines dark and light image areas for sparkling highlights and rich, deep blacks.
-
Crisp, detail-packed WUXGA resolution images
See the finest detail in PC presentations, videos or multimedia signage with WUXGA (1920 x 1200) 16:10 resolution.
-
Up to 20,000 hours* operation with virtually no maintenance
The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing lifetime running costs compared with traditional projectors.
*Actual hours may vary depending on usage environment. -
Hassle-free automatic filter cleaning
Focus on great-looking images instead of arduous maintenance tasks: new automated filter cleaning system removes dust every 100 hours.
-
Energy saving features
Reduce running costs even further with convenient energy-saving features: Picture Mute and Auto Dimming.
-
Save time with every presentation
Quick power On/Off dramatically cuts warm-up time after switch-on before you can start presenting at full brightness.
-
360° free-angle installation capability
Enjoy greater installation flexibility: position the projector freely at any angle – or its side or even upside down.
-
Powered Wide Lens Shift
Generous lens shift adjustments give more flexibility for positioning the projector where you need it: close to ceilings or even horizontally offset.
-
Included powered standard zoom lens plus wide choice of lens options
Installation flexibility is increased by a wide range of compatible lens options to suit virtually any size of room and throw requirements. New quick-release bayonet mount simpifies quick lens exchange.
-
Supports HDBaseT
Simpler, more cost-effective installation and connectivity with digital transmission of HD video, audio and networking/control over a single Ethernet cable.
-
Create super-size displays with Edge Blending
Seamlessly join accurately color-matched images from multiple projectors, simplifying creation of stunning super-size displays for corporate and education.
-
Project onto non-flat surfaces with Image Warping
Easily correct image geometry for natural-looking projections – even on convex or concave surfaces. Corner and edge correction can be easily adjusted with the supplied remote and on-screen menu.
-
Quiet operation
Low fan noise ensures discreet, unobtrusive operation in quiet environments from museums and galleries to lecture theatres.
-
Slim, attractive new blend-in design
The slim, stylish case design features a flat top surface that blends in discreetly when the projector is ceiling mounted. The clean appearance is accentuated by a new terminal cover that reduces cable clutter.
-
Picture Mode
New Picture Mode ensures great-looking pictures in any presentation conditions. Select Standard, Dynamic, Brightness Priority or Multi Screen mode for optimized image quality, with any source and in every room.
-
Simple set-up with friendly new Installation menu
Easily adjust projector settings with remote commander, including warping and edge blending.
-
Project Side by Side
Project images from two inputs at the same time: ideal for applications such as video conferencing and medical training where two images need to be seen simultaneously.
Specifications
Chip Size | 0.76” (19 mm) | ||
Number of pixels | 6,912,000 (1920 x 1200 x 3) pixels | ||
Focus1 | Motorized | ||
Zoom1 | Motorized | ||
Zoom Ratio1 | 1.6 | ||
Throw Ratio1 | 1.39-2.23:1 | ||
Lens Shift | Motorized | ||
Horizontal Lens Shift1 | ±32% | ||
Vertical Lens Shift1 | -5% to +60% | ||
Light Source | Laser Diode | ||
Filter Maintenance Cycle | 20,000 Hours - This figure is expected maintenance time, not guaranteed time. The actual value depends on the environment and how the projector is used. | ||
Color Light Output | High: 6000 Lumens Economy: 4000 Lumens |
||
Contrast Ratio (full white:full black) | 10,000:1 average | ||
Input Frequency Range | Horizontal: 15-92 KHz Vertical: 48-92 Hz |
||
Computer Display Resolution | 1920x1200 maximum (Available for VESA Reduced Blanking signal) | ||
Video Compatibility | NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i | ||
Additional HDMI Input Compatibility | 1080/60p, 1080/50p, 1080/24p | ||
Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 | ||
Keystone Correction | Horizontal: ±30º Vertical: ±30º | ||

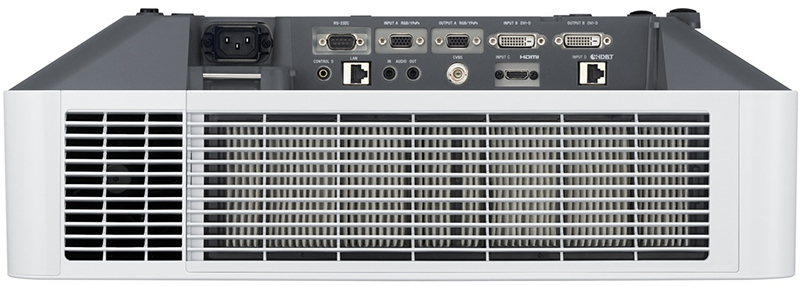

Inputs & Outputs |
|||
Input A | RGB / YPbPr input connector: Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack |
||
Input B | DVI input connector: DVI-D 24-pin (single link), HDCP support Audio input connector: Shared with INPUT A |
||
Input C | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
||
Input D | HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control) | ||
Video In | Video input connector: BNC Audio input connector: Shared with input A |
||
Output A | Monitor output for Input A Connector: Mini D-sub 15-pin (female) Audio output connector: Stereo mini jack |
||
Output B | Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported Audio output, Monitor out connector: Stereo mini jack |
||
Remote | D-sub 9-pin (male) / RS232C | ||
LAN | RJ45, 10BaseT/100BaseT | ||
IR (Control S) | Stereo mini jack, Plug in power DC5V | ||
Acoustic Noise | 28 dB, Light Source in Economy Mode | ||
Operating Temperature & Humidity | 0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation) | ||
Storage Temperature & Humidity |
|
||
Power Requirements | 100-240 VAC, 5.5 A to 2.3 A, 50/60 Hz | ||
Power Consumption (High Power Mode) |
100-120 VAC: 509 W 220-240 VAC: 492 W |
||
Power Consumption (Networked Standby Mode) |
100-120 VAC: 15 W 220-240 VAC: 13 W |
||
Standby Mode / Networked Standby Mode Activated | Approx. 10 Minutes | ||
Dimensions (W x H x D) (without protrusions | 460 x 169 x 515 mm 18 1/8 x 6 21/32 x 20 9/32 inches |
||
Weight | 16 kg (34 lb) | ||
Supplied Accessories | RM-PJ27 Remote Control | ||
Optional Accessories | Lenses: VPLL-3007 / Z3009 / Z3024 / Z3032 | ||
Footnotes | 1With supplied standard lens |
Accessories
Model: | VPLL-3003 | VPLL-3007 | VPLL-Z3009 | Standard Lens | VPLL-Z3024 | VPLL-Z3032 |
D:W | 0.33:1 | 0.65:1 | 0.85:1 - 1.00:1 | 1.39:1 - 2.23:1 | 2.34:1 - 3.19:1 | 3.18:1 - 4.84:1 |
f-Stop: | 1.85 | 1.75 | 1.85-2.10 | 2.00-2.30 | 2.20-2.60 |
Warranty
Sony VPL-FHZ65W Warranty
Factory 5 Year or 12,000 Hours, whichever comes first.
