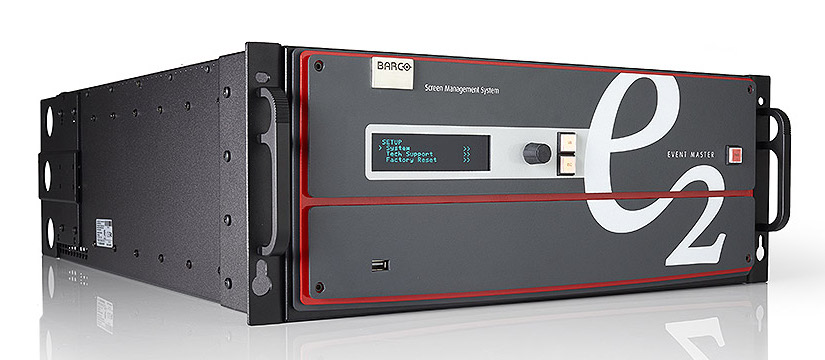

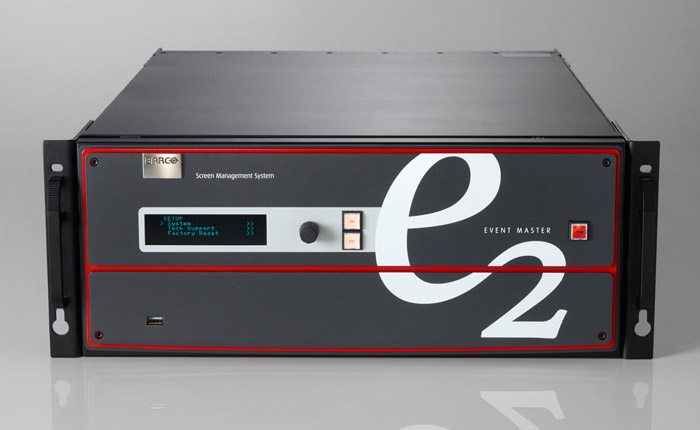

Barco E2 Video Processor

Raising the bar for live screen management, the E2 presentation system provides superior image quality, exceptional input and output density, great expandability and durability. Supporting native 4K input and output, it was the first screen management system to manage 4K projector blends with refresh rates up to 60Hz with full 4:4:4 color sampling and 12bit processing . A truly versatile system, it offers eight mixable PGM outputs and four scaled Aux Outputs for full show control with a single box. The E2 can be linked with multiple other E2 chassis to create extremely large pixel processing canvases, to support the largest displays available.

Native 4K input and output

With native 4K@60p input and output, the E2 provides impressive pixel processing power. Whether native or scaled inputs, single cable 4K60p, two connectors or four, this HDCPcompliant system manages it all. With up to 32 inputs and 16 outputs, the E2 system offers full screen control. The E2 can support 32 HD pips or 8 4K pips. The layers can be configured to support a mixture of HD and 4K resolutions maximizing your system flexibility. Thanks to its linkable chassis, it can easily expand beyond the capabilities of a single box without the need for additional external processing and matrix routing to distribute the signals. Currently the linking in E2 supports up to eight processors for a total of 32 4K program outputs, with the possibility of more in the future.

Simple servicing and control

The E2 comes with a straightforward cross-platform user interface that provides touchscreen ergonomics. As the presets are stored on the chassis it enables easy control via third-party systems. Multiple users can control the system simultaneously, and the API allows third-party developers to create custom control programs and interfaces. Thanks to its modular design, users can simply add a new input or output card to support future signal interfaces. This modularity also ensures great serviceability, as users can easily swap a specific input or output card in the case of damage, without needing to ship or replace the entire box.

Designed for life on the road

Designed for the live event industry, the rugged E2 features a steel chassis that’s able to withstand the challenging conditions of life on the road. What’s more, it offers screen control in a compact form factor of only four rack units, which makes it easy to ship and install. And thanks to its modular cards and dual redundant power supplies, the E2 is extremely reliable and easy to service in the field.

Layers, layers, layers

The E2 offers an extremely flexible layer management system. The E2 starts with a pixel perfect, full resolution, unscaled background layer that is the same resolution as the screen destination. As an unscaled mixing background layer it does not use any of the valuable scaling layers. With up to 32 layers available in HD, the E2 can customize the layer configuration to meet the needs of your application. The layers provide either pip or key effects, and can be configured for HD, Dual Link (2560x1600 or 3840x1200 max), or 4K resolutions. Each destination gets dedicated layers, so you know exactly how many resources are available. The layers can also be configured as single layers with cut transitions, or two of the scalers can be combined to create a mixing layer. Each destination can support a combination of mixers, single layers, pips, keys, and various sizes of layers, all to create a single composited image on the screen.

(Model: R9004799)

Inputs

8x Input card slots supporting up to 4K resolution per slot.
Each card slot accommodates either 4x HD inputs, 2x 2,560 x 1,600 inputs, or 1x 4K input.

HDMI/DisplayPort input card

• 2x HDMI 1.4 connectors
• 2x DisplayPort 1.1 connectors

3G SDI input card

• 4x BNC connectors supporting 3G SDI

Genlock input

• 2x BNC connector (Input and loop output)
• Supports Black burst and trilevel analog signals

(See Specifications tab for input cards included with this model.)

Outputs

4x Output Card slots for PGM screens and Auxes that support up to 4K resolution per slot. MVR is supported by the last slot to the right.

HDMI output card

• 4x HDMI 1.4

3G SDI output card

• 4x BNC connectors supporting 3G SDI

(See Specifications tab for output cards included with this model.)

User interface

Event Master Software

• GUI based configuration and control application
• Cross platform (Mac/Windows)

Event Master Console
API for custom User interface programming

Processing and latency

• 12 bits/color
• 36 bits/pixel
• 1 frame processing latency for progressive genlock sources

PIP layers (per chassis)

Freely assignable PiP layers seamlessly transition between sources

• 2K mode: 16 seamless mixable PiPs or key overlays
• DL mode:  8 seamless mixable PiPs or key overlays
• 4K mode:  4 seamless mixable PiPs or key overlays


Background mixer

Each PGM screen destination has an unscaled seamless background mixer supporting the full resolution of the destination

• Any live input type can be a background source
• Matte color generator
• Still store as background

Destinations (single chassis)

Eight (8) Program Outputs configurable as single screens or tiled/blended widescreens

Program screens

• 4K Output
  • 2x single screens
  • 1x blended (2 outputs)
• Dual Link output
  • 4x single screens
  • 2x blended
• HD (2K) Output
  • 8x single screens
  • 4x 2 output blended (2 output per blend) up to 1x 8 output blended

More than eight outputs can be assigned to a screen destination, provided they are positioned inside the processing canvas.

Auxilliary Outputs

User definable from 4 x 2,048 x 1,200@60 to 1 x 4K@60  per output card

4K output

• 1x Scaled Aux output

Dual Link output

• 2x Scaled Aux output

HD (2K) output

• 4x Scaled Aux output

Multi-viewer

MVR supports 2x HD outputs displaying all inputs and outputs available to the chassis.

Still stores

User-assigned still stores

• Live capture
• Import and export via PNG file

Presets

1,000 user definable presets

Expandability

8x E2 chassis per system

4K output

• Up to 32 4K outputs

Dual Link output

• Up to 64 DL outputs

HD (2K) output

• Up to 128 HD outputs

Up to 48 HD inputs can be shared globally in a system linked for input expansion. Processors also have access to their local sources.

Chassis

• 4RU
• Dual Redundant PSU
• Modular field swappable processing and I/O cards
• Variable flow cooling
• Rugged steel chassis

Custom configurations of input and output cards are available. For a list of available cards, select the Accessories Tab above.

Input cards:

	Quad SD/HD/3G-SDI input card (R9004742)
	Dual HDMI 1.4 & Dual DisplayPort 1.1 input card (R9004744)
	Single DP 1.2, single HDMI 2.0, quad 12G-SDI, Tri-Combo 4K60 input card (R9004785)
	Quad HDMI 2.0 input card (R9004791)
	Quad DisplayPort 1.2 input card (R9004793)
	Dual DVI Input Card, Dual Link (R9004740)

Output Cards:

	Quad SD/HD/3G-SDI output card (R9004741)
	Quad DisplayPort 1.2 output card (R9004765)
	Quad HDMI 1.4 output card (R9004743)
	Single DP 1.2, single HDMI 2.0, quad 12G-SDI, Tri-Combo 4K60 output card (R9004786)
	Quad HDMI 2.0 output card (R9004792)
	Fiber output card (Transceivers/SFP Modules sold separately) (R9004766)

Other Cards:

	Expansion link card (R9004746)
	CXP I/O card (R9004797)

Control Surfaces:

	EC-210 Large Event Controller (R9004790)
	EC-50 Event Master Controller (R9004772)
	EC-30 Small Event Controller (R9004783)
