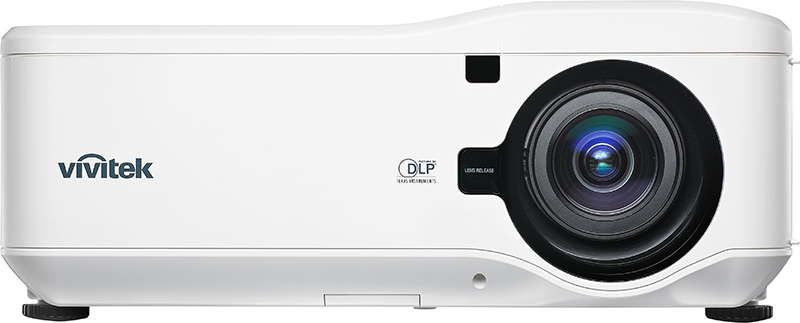

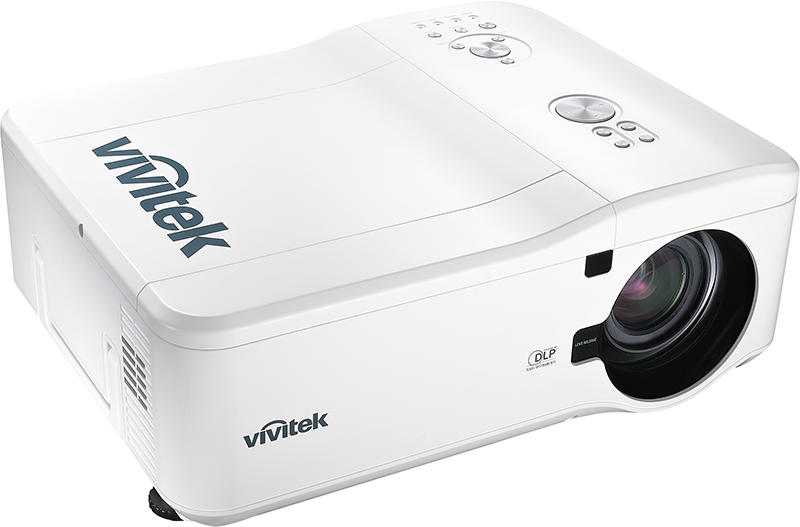

The Vivitek DX6535 XGA is designed for demanding large venue installation applications. The DX6535 features dual-lamp technology, as well as seven (7) interchangeable optional lenses (Bayonet style) to meet most all large-venue installations. Interchangeable color wheel (included) for vibrant color and video enhancement. The DX6535 delivers bright, superb digital images with full color saturation intended for high-impact multimedia presentations, with unmatched performance and functionality.

• 6700 lumens of brightness with a 3000:1 contrast
• Dual-lamp technology limits down-time of bulbs
• Native XGA resolution and displays up to UXGA
• Interchangeable color wheels (included) for superior color detail or can maximize brightness
• DLP®/BrilliantColorTM technologies by Texas Instruments
• Seven (7) Interchangeable optional lenses (Bayonet style)
• Power Lens shift, Zoom, and Focus

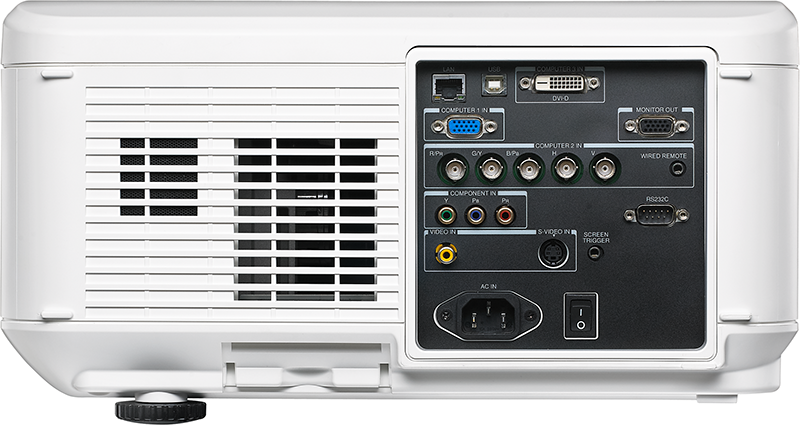

• RJ45/RS-232c for integration and system administration
• 12V trigger for simple screen/projector automation

Optional Lenses

Model	D88-UST011,2,3	D88-UWZ011	D88-WF185011,3	D88-WZ01	D88-ST001 Std Lens	D88-SMLZ01	D88-LOZ101	D88-LOZ201
P/N	3797866500-SVK	3797804200-SVK	3797745100-SVK	3797745200-SVK	3797744200-SVK	3797745000-SVK	3797745400-SVK	3797744900-SVK
Price	$5,495.00 Add to Cart	$3,482.00 Add to Cart	$2,613.00 Add to Cart	$2,613.00 Add to Cart	$1,315.00 Add to Cart	$2,613.00 Add to Cart	$2,613.00 Add to Cart	$2,613.00 Add to Cart
D:W XGA	0.39:1	0.77 – 0.97:1	0.79:1	1.30 – 1.85:1	1.79 – 2.35:1	2.30 – 3.81:1	3.71 – 5.57:1	5.50 – 8.56:1
f/stop	2.0	1.96 – 2.3	1.85	1.85 – 2.5	1.7 – 1.9	1.86 – 2.48	1.85 – 2.41	1.85 – 2.48

Notes

¹ Not compatible with D8800, D8900, D8010W.

² Lens support required. Bracket provided works with DU6871, DU8090Z, DU8190Z, DU893Z, and DK8500Z

³ Not compatible with Lens shift.

Spec Sheet

Manual

5-Year Warranty on Parts and Labor / 3-years Advanced Exchange / 1-year Lamp Warranty
