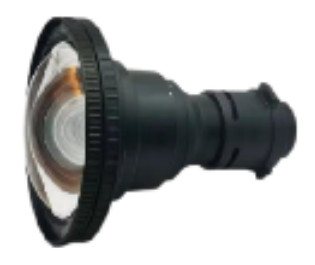

Vivitek D86-04705
Short Zoom Lens #1, D:W 0.47-0.5:1
Item #0601-8322 Model #SSD8604705VVW
Features
Vivitek D86-04705
Short zoom lens #1 for large venue projection
(P/N: SS-D86-04705-VVW)
- High-performance lens designed for a variety of medium to large venue applications.
- One touch quick-release button for simple lens insertion and removal
- All optical elements are made of highest quality optical materials for less light loss and precision geometry.
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Specifications
| Lens Type | Short Zoom Lens 1 |
| Throw Ratio | WUXGA: 0.47 ~ 0.5:1 |
| Zoom Ratio | 1.06x |
| Brightness Ratio | 95% |
| Offset | Power Lens Shift |
| Focal Length (f value) | 7.43 mm |
| F-stop | 2.1 |
| Image Size (Diagonal) | 80" ~ 300" |
| Projection Distance | 2.66 – 10.4 ft (0.81 – 3.16 m) |
| Focus/Zoom Adjustment | Manual |
| Weight | 2.2 lb (1.0 kg) |
| Dimensions (D x L) | 4.92" x 7.32" (125 x 186 mm) |
Same Series Lenses
| Model | D86-04705 | D86-0711 | D86-1113 | D86-1216 | D86-1519 Std Lens |
D86-1929 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.47–0.5:1 | 0.77–1.1:1 | 1.1–1.3:1 | 1.25–1.60:1 | 1.54–1.93:1 | 1.93–2.9:1 |
| F/stop | 2.1 | 2.1–2.6 | 2.05–2.27 | 2.0–2.44 | 2.02–2.40 | 2.5–3.1 |
