BenQ MW826ST
Overview

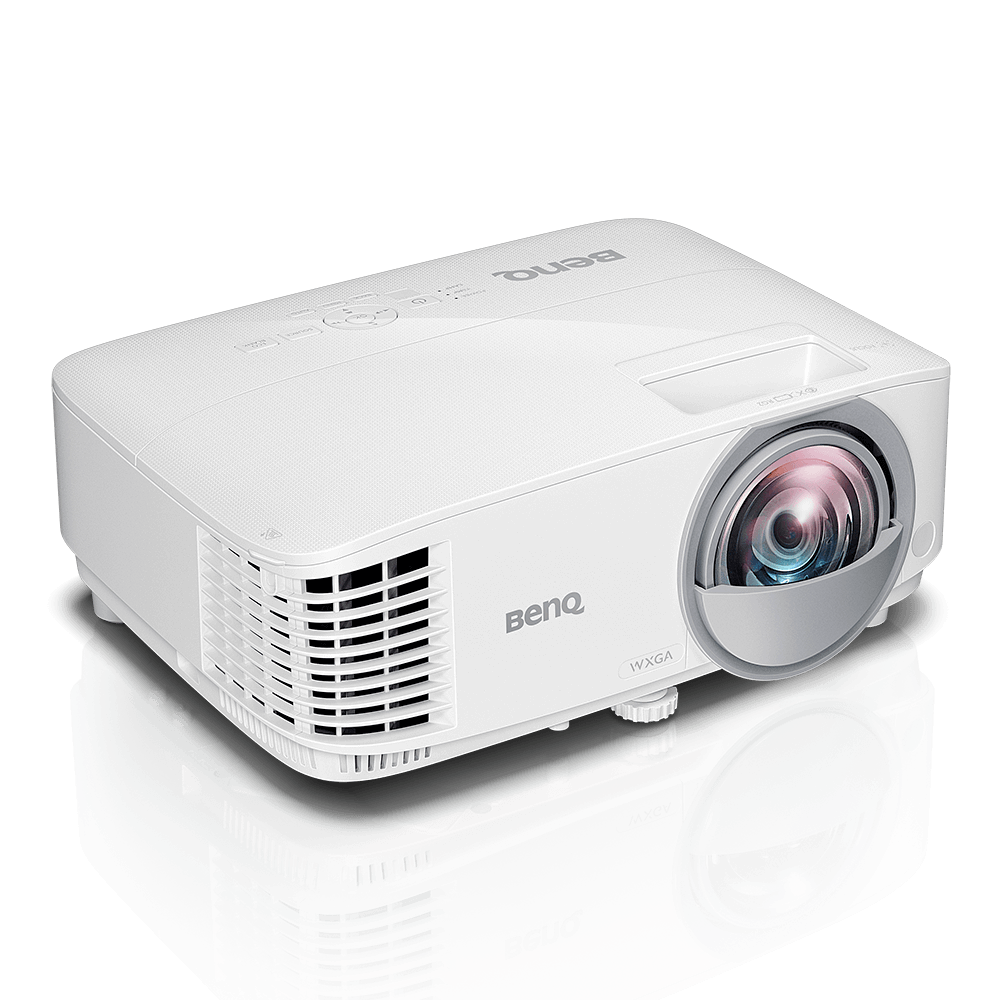

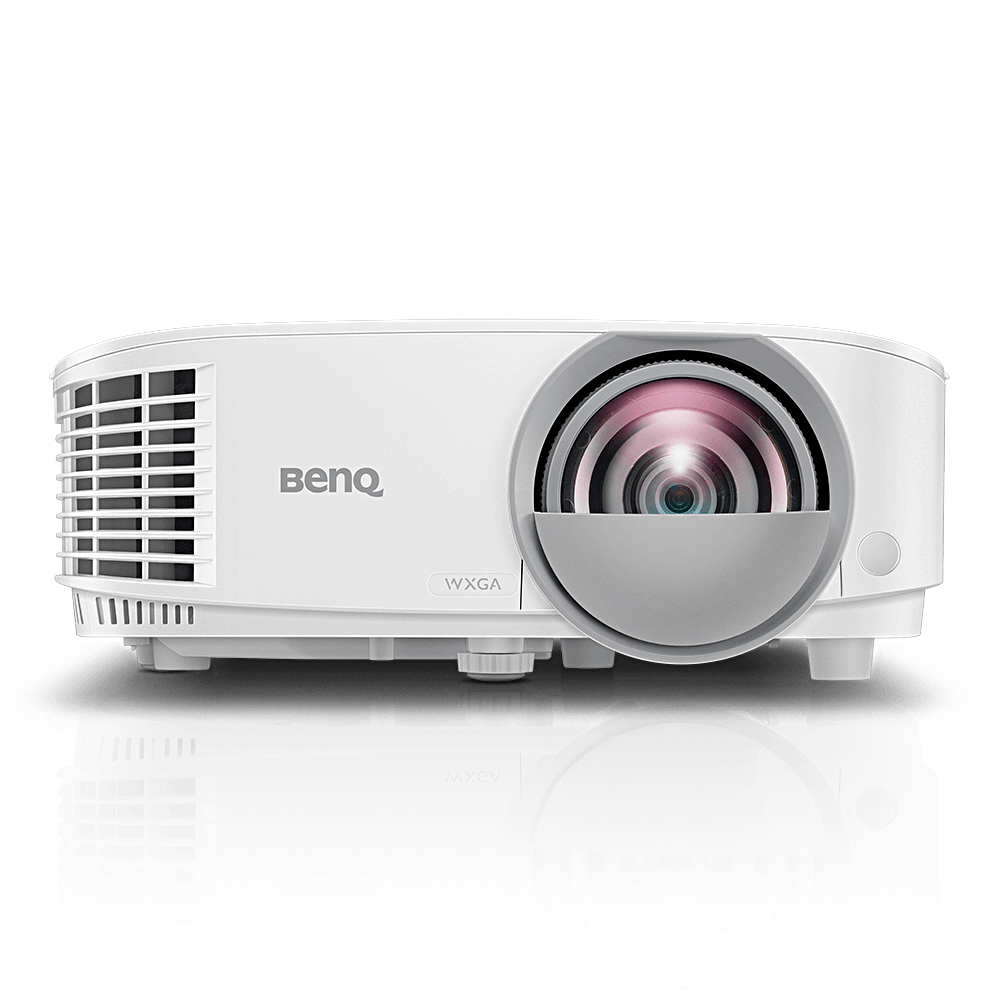

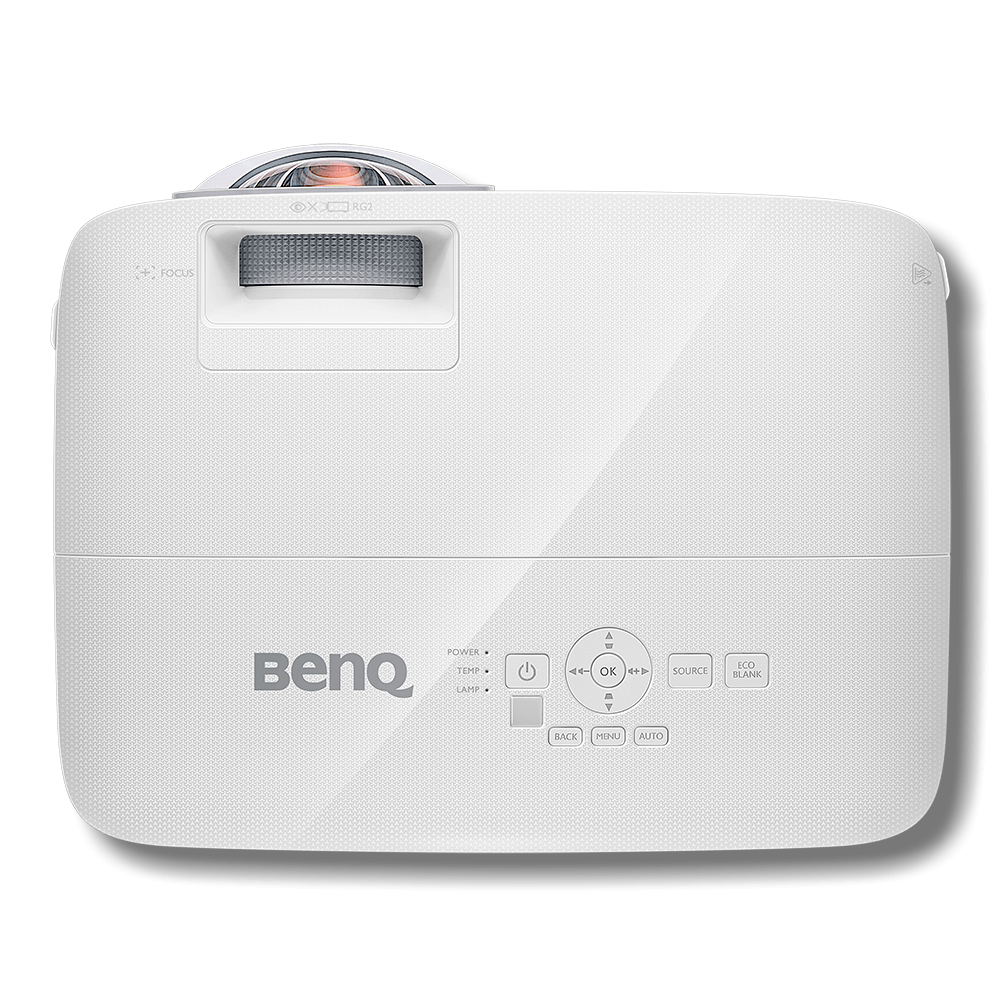

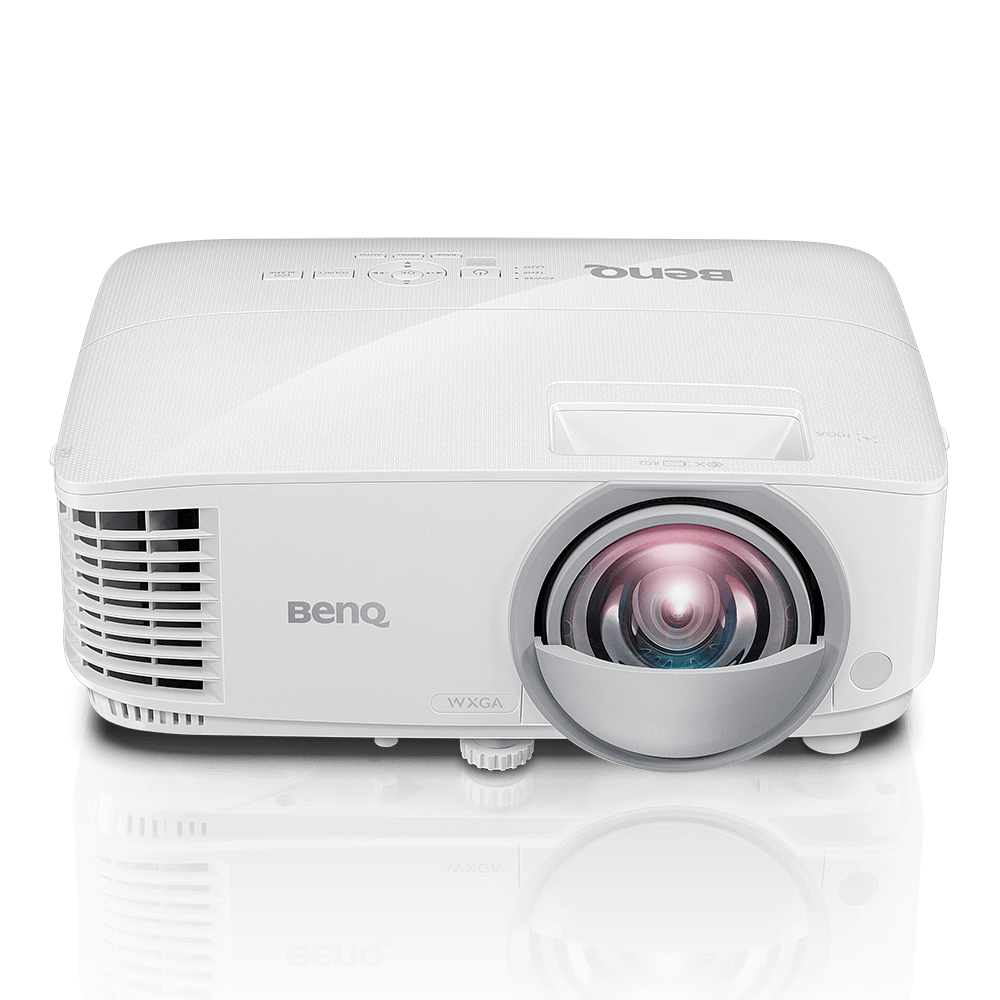

BenQ MW826ST
3400 lumens WXGA projector for advanced interactive instruction
Expand classroom possibilities with the Short Throw Ratio MW826ST. Create lasting lessons with striking picture quality from the high brightness 3400 lumens, bigger images, and industrial-grade durability of DLP projection technology.
PointWrite™ technology, with enhanced multi-touch capability for pens or fingers, enables interactive learning.
Meanwhile, an anti-dust accumulation feature prolongs performance, and BenQ's exclusive SmartEcoTM technology increases lamp life with uncompromised brightness and exquisite picture quality.
Installation is simple with remote control hotkey and screen size adjustment.
This projector features:
- Short-throw ratio
- DLP technology for long-lasting picture perfection
- PointWrite Interactive Solution compatibility
Features
- Ingenious Anti-Dust Accumulation Feature: prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.
-
Big screen in short distance with a 0.49 short-throw ratio: eliminates distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.
-
3,400 high ANSI lumen brightness: delivers crisp images and sharp text even in bright lecture room. High brightness provides clear content under high ambient lighting, allowing lights to be kept on during classes for note taking and interactive collaboration.
-
Crisp image quality up to 120 inches: provides a range of resolutions and projected image sizes to meet diverse classroom needs. The MW826ST ultra-short throw education projector delivers increased classroom versatility at reduced costs.
-
Long Lasting Picture Quality: eliminates color decay thanks to the sealed design that protects the DLP chip from dust-induced image degradation, and the industrial-grade durability of DLP projection technology.
-
High DLP Pixel Fill Factor: provides a superb viewing experience by minimizing black borders around each pixel to eliminate the dreaded "screen door effect" commonly observed in non-DLP projectors. This leads to superior definition and clarity in small-size text and fine details, for beautifully rendered images instead of pixelated graphics.
-
Crisp Readability via High Contrast Ratio: ideal for text, numbers, and tables widely used in instruction. The DLP advantage of digitally controlled micro-mirrors on the DMD chip creates high native contrast ratio for sharp readability and crisp resolution at every single sub-pixel.
-
Interaction on Any Surface: PointWrite™ technology transforms this education projector into a collaborative platform that turns any surface into an interactive whiteboard. Seamless integration of PointWrite™ kit and QWrite software with the projector encourages a truly collaborative learning environment where students and teachers work together using intuitive templates along with annotation tools.
-
Multi-Touch & Multi- Screen Drawing: With enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two surfaces.
-
Intuitive Setup: Reliably accurate in any ambient lighting, PointWrite™ auto calibrates and saves its settings immediately when plugged into a computer’s USB port, remaining ready with no manual configuration or complicated training for teachers.
-
Windows Gesture Support: PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.
-
Simple and Convenient Wireless Dongle: Collaborate and create more engaging lessons via the QCast wireless dongle that allows up to 4 participants to stream content from smart devices or computers to the big screen, displaying them in 4 split screens.
-
Increased lamp life with uncompromised brightness and exquisite picture quality: SmartEcoTM technology reduces energy consumption and triples lamp life up to 15,000 hours. And Eco Blank mode further increases energy saving capability by dimming lamp power automatically to lower total power by 70% when blanking the projection.
-
Sharp Details in Dark Scenes: SmartEcoTM Technology ingeniously adjusts light output based on content, enhancing contrast to produce richer blacks and the best possible picture quality, especially important for detailed and dynamic dark scenes such as astronomy courses.
-
LAN Control Compatibility: BenQ education projectors are compatible with Creston, AMX, and PJ Link control systems for convenient system integration with various third-party components and cost reduction via central maintenance of multiple projectors.
-
Centralized Multiple Display Management: With enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two monitors.
-
Screen Size Adjustment: allows convenient screen size fine tuning through OSD menu to significantly save setup time, without the need to physically adjust projector installation in case the sensitive short-throw image is not precisely aligned on the desired frame.
-
Remote Control Hotkey: "Quick Install" hotkey on the remote control sets up the projector. This is a great time saver for managers performing initial projector installation work.
Specifications
Display
Projection System | DLP Single 0.65" WXGA |
DMD type | DC3 DMD Chip |
Resolution | 1280 x 800 pixels |
Brightness | 3,400 ANSI Lumens |
Contrast Ratio | 20,000:1 |
Display Color | 1.07 billion colors |
Aspect Ratio | Native 16:10 (5 aspect ratio selectable) |
Light Source | Lamp (200 W) |
Light Source Life* | 5000/10000/10000/15000 hours (Normal/Eco/SmartEco mode/Lampsave) |
Optical
Lens | LS2LT1: F/# = 2.6, f = 6.9 mm |
Throw Ratio | 0.49:1 |
Zoom Ratio | Fixed |
Lens Control | Manual Focus |
Lens Shift | N/A |
Keystone Correction | 1D, Vertical ± 30 degrees |
Projection Size (Diagonal) | 70" – 120" |
Projection Offset | 105% |
Audio
Built-in Speaker | 10 W x 1 |
Special Feature
Security Lock | Kensington Lock Security Bar |
Compatibility
Resolution Support | VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB-Reduced Blanking |
Horizontal Frequency | 15 ~ 102 KHz |
Vertical Scan Rate | 23 ~ 120 Hz |
HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Video Compatibility | NTSC, PAL, SECAM |
Power
Power Consumption (Max/Normal/Eco) | Typical 260 W |
Standby Power Consumption | Network Standby < 2 W, Standby < 0.5 W |
Dimension and Weight
Product Dimensions (WxHxD) | 296 x 120 x 239 mm (11.7" x 4.7" x 9.4") |
Product Weight | 2.6 kg (5.7 lbs) |
Operation Condition
Noise Level (Normal/Eco) | 33/29 dBA |
Operating Temperature | 0o ~ 40o C (32o ~ 104o F ) |
Accessories
Accessories (Standard) | Remote Control w/ Battery RCE013 x 1 Power Cord (by region) x 1 Quick Start Guide x 1 User Manual CD x 1 Warranty Card (by region) x 1 |
Accessories (Optional) | Spare Lamp Kit 5J.JGE05.001 Dust Filter 5J.JGV14.001 3D Glasses DGD5 5J.J9H25.002 Document Camera S30 9H.J9L78.T3E PointWrite Kit PW02 5J.J9A26.12E PointWrite Touch Module PT12 5J.J8L26.13E Wall Mount 5J.J4R10.011 |
Connectivity

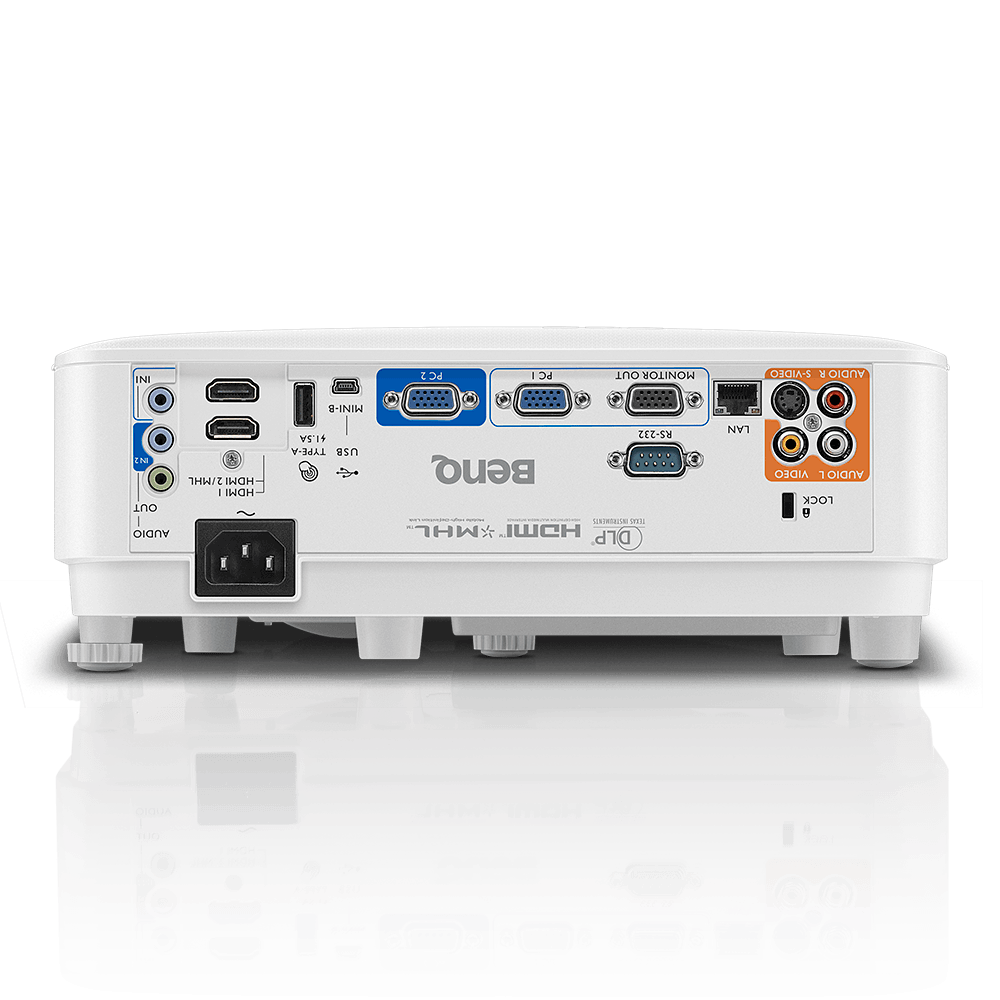

I/O Port | HDMI x 2 (HDMI-2 share with MHL) PC In (D-sub 15pin) x 2 (share with component video) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In x 1 Audio In (mini jack) x 2 Audio L/R In (RCA) x 1 Audio Out (mini jack) x 1 LAN RJ45 x 1 (LAN control) RS232 (DB-9pin) x 1 USB (type A) x 1 (power only 5V/1.5A) USB (type mini B) x 1 IR Receiver x 2 (front, top) |
OSD
On Screen Display Language | Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages) |
InstaShow Host
Power Supply | AC 100 V to 240 V, 50 Hz to 60 Hz |
Warranty
3-Year Warranty
Notes:
* Light source life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
