- Auto input selection. Built-in Test Patterns
- Security bar, Kensington® MicroSaver® security slot, PIN lock

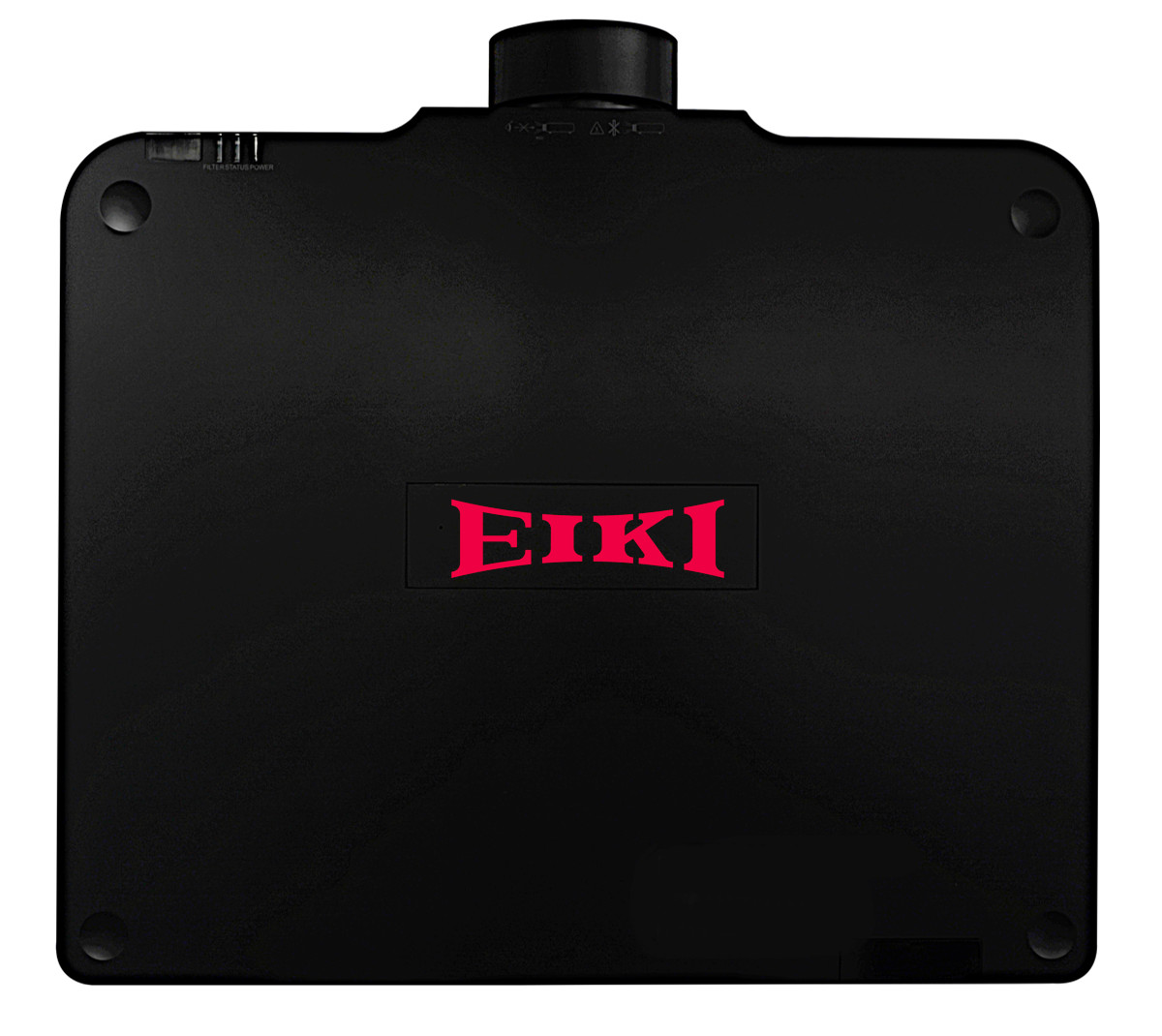

Eiki EK-1300LU
Laser LCD Projector, WUXGA, 13K Center Lumens, No Lens, 3-Year Warranty
Item #0601-5807 Model #EK1300LU
Overview
Eiki EK-1300LU
13,000 Lumens, WUXGA, 3LCD Large Venue Laser Projector
The Eiki EK-1300LU is a versatile, low maintenance, large venue projector that offers high brightness and high color reproduction thanks to the new 3LCD and laser light optical engine.
A newly developed cooling system with sealed optical engine and filterless design provides high performance and low fan noise.
The EK-1300LU is a versatile installation projector with advanced keystone correction (4-corner, 6-corner), full 360° installation capability (including portrait mode), and a full suite of optional lenses.
Note: Lens not included.
Recommended installations:
- Auditoriums
- Large conference rooms
- Exhibitions / Events
- Museums / Galleries
- Theaters / Halls
- Houses of worship
- Signage
Features
- 13,000 center lumens brightness with 80% uniformity
- Native WUXGA resolution. Supports 4K input
- Supports analog and digital video input in all color standards up-to 1080p
- Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions.
- 20,000-hour laser light source and filterless design: no lamps or filters to replace, reducing maintenance time and total cost of ownership
- High performance, low fan noise: newly designed cooling system with sealed optical engine, filterless design and improved air flow
- 3LCD + Laser Optical Engine
- 100,000:1 contrast ratio
- Flexible installation:
- 360° free orientation
- Portrait projection mode
- Pincushion/Barrel correction
- Lens shift (V:+50% ~ -10%, H:±20% (with AH-EC21020 lens)
- Keystone correction (V and H: ±30°), 4-Corner, 6-Corner
- 5 optional lenses (see Accessories tab)
- Wired network control
Specifications
| Display Type | 0.76" 3LCD | ||
|---|---|---|---|
| Resolution | WUXGA (1920 x 1200) | ||
| Aspect Ratio | 16:10 | ||
| Brightness (ANSI) | 13,000 center lumens | ||
| Contrast Ratio | 100,000 :1 | ||
| Projection Light Source | Laser (Blue) + Phosphor | ||
| Light Source Life | 20,000 hours | ||
| Image Diagonal | Depends on lens. (50" – 500" with AH-EC21020) |
||
|
LENSES See Accessories tab |
F Value / Focal Length | Depends on Lens. See Color Data Sheet on Downloads tab. | |
| Zoom / Focus Adjustment | |||
| Zoom Ratio | |||
| Throw Ratio | |||
| Throw Distance | |||
| Lens Shift (Motorized) | V:-10% to +50% , H:±20% | ||
| Keystone Correction | V: ±30 degrees, H: ±30 degrees, 4-Corner / 6-Corner | ||
| Projection Elevation Adjustment | Up to 5 degrees | ||
| Scanning Frequency | H Sync: 15 – 100 kHz V Sync: 48 – 85 Hz |
||
| Dot Clock | 160 MHz | ||
| Input Signals - Computer | 4K (3840 x 2160@30Hz) - VGA (640 x 480) | ||
| Input Signals - Video | 1080 i/p, 720 p, 576 i/p, 480 i/p | ||
| TERMINALS | 3G-SDI | BNC x 1 | |
| HDBaseT | RJ45 x 1 | ||
| HDMI (Ver 1.4) | HDMI x 3 (IN/OUT) | ||
| DVI-D | DVI-D x 1 | ||
| VGA | D-Sub 15 x 2 (IN/OUT) | ||
| LAN | RJ45 x 1 | ||
| Audio | 3.5 mm mini jack x 2 (IN/OUT) | ||
| USB | USB Type A x 1 USB Type B x 1 (for Service) |
||
| RS-232C | D-sub 9 x 1 | ||
| Remote Control | 3.5 mm Mini Jack x 2 (IN / OUT) | ||
| Fan Noise | 40 dB / 43 dB (Eco / Normal) | ||
| Dimensions (W x H x D) | 23.6" x 8.6" x 19.8" (600 x 218 x 503 mm) |
||
| Weight | 52.9 lb (24.0 kg) without lens | ||
| Power Requirements | AC 100 – 240 V , 50/60 Hz | ||
| Power Consumption | 0.5 W in ECO Standby, up to 960 W | ||
| Thermal Dissipation | 3,276 BTU | ||
| Standard Accessories |
|
||
| Warranty |
|
||
Accessories
Optional Lenses
| Model | AH-EC22030 | AH-EC21020 | AH-EC21030 Std Lens |
AH-EC24010 | AH-EC23030 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.79–1.11:1 | 1.30–3.02:1 | 1.46–2.95:1 | 2.99–5.93:1 | 4.59–7.02:1 |
| f/stop | 2.0–2.5 | 1.7–2.0 | 1.7–2.37 | 2.2–2.6 | 2.2–2.7 |
Other Accessories
 |
Ceiling mounts |
