Eiki EK-720LU
Overview

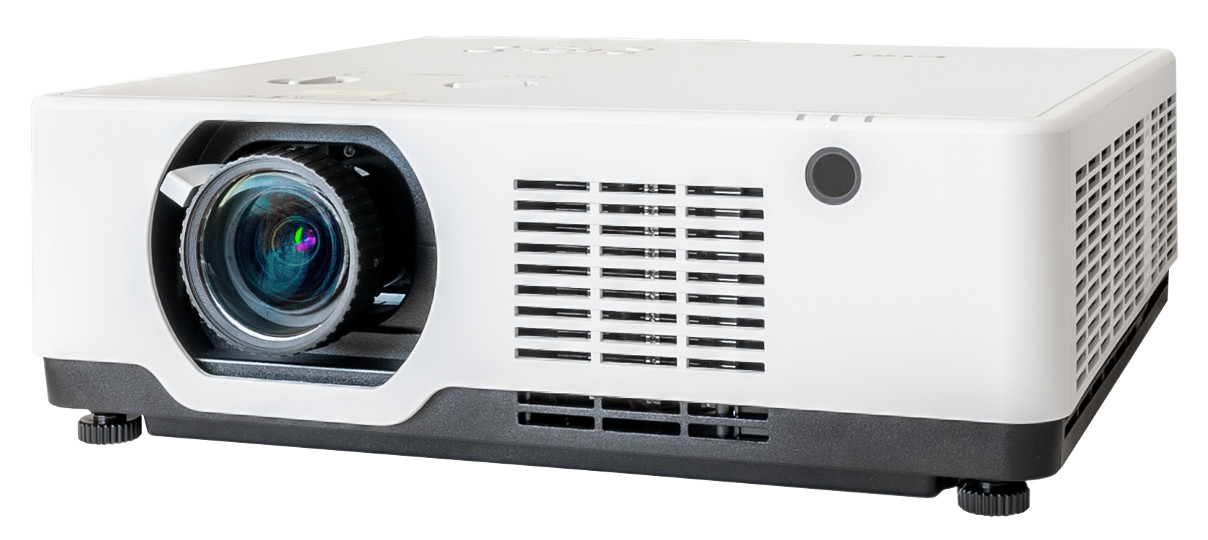

Eiki EK-720LU
7,200 Center Lumens WUXGA 3LCD Large Venue Laser Projector
The Eiki EK-720LU features a Laser Phosphor light source with 7,200 center lumens of brightness and native WUXGA resolution. This projector supports analog and digital video input in all color standards up to 1080p, and 4K video input via HDMI.
In addition, it features 5,000,000:1 dynamic contrast ratio as well as horizontal and vertical manual lens shift, keystone correction, and geometric correction.
The EK-720LU is compatible with Crestron RoomView and AMX Device Discovery technology.
Recommended installations:
- Corporate/business
- Higher education
- House of worship
Features
- 7,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio
- Native WUXGA resolution. Compatible with inputs up to UXGA, WUXGA and 4K
- High brightness and contrast with long life 20,000-hour laser + phosphor light source
- 10-bit color processing for superior color reproduction
- Supports analog and digital video input in all color standards up to 1080p
- Supports 4K video input via HDMI
- Convenient mid-range (1.6:1) manual zoom and focus lens
- Horizontal, Vertical & Corner Keystone Correction
- Pincushion/Barrel & 6 point Geometric Correction
- Horizontal & Vertical Manual Lens Shift. Wired network control
- Displays 4:3, 16:9 and 16:10 aspect ratios. Supports most HDTV resolutions
- Built-in 16-Watt amplifier and speaker sound system. Closed Caption decoding (NTSC)
- Side-accessed air filter for ease of maintenance
- Auto input selection. Built-in Test Patterns
- Security bar, Kensington® MicroSaver® security slot, and PIN lock
- Compatible with Crestron™ RoomView and AMX Device Discovery Technology
Specifications
| Display Type |
0.64" 3LCD |
||
|---|---|---|---|
| Resolution |
WUXGA (1920 x 1200) |
||
| Aspect Ratio |
16:10 |
||
| Brightness | 7,200 Center Lumens (approx. 6500 ANSI Lumens) | ||
| Contrast Ratio |
5,000,000:1 |
||
| Projection Light Source |
Laser (Blue) + Phosphor |
||
| Light Source Life |
20,000 hours |
||
| Image Diagonal |
30–300" |
||
|
LENS |
F Value / Focal Length |
f: 1.5–2.08 |
|
| Zoom Ratio |
Manual x1.6 |
||
| Throw Ratio |
1.22–1.98:1 |
||
| Throw Distance |
2.5–42 ft (0.77–12.8 m) |
||
| Lens Shift |
V: +60% H: ±29% (Manual) |
||
| Keystone Correction |
V: ±30° H: ±30°, Corner Keystone |
||
| Projection Elevation Adjustment |
up to 3.5° |
||
| Scanning Frequency |
H Sync. 15–100 KHz, V Sync. 24–85 Hz |
||
| Dot Clock |
up to 300 MHz |
||
| Input Signals - Computer |
4K (3840 x 2160) - VGA (640 x 480) |
||
| Input Signals - Video |
1080 i/p, 720 p, 576 i/p, 480 i/p |
||

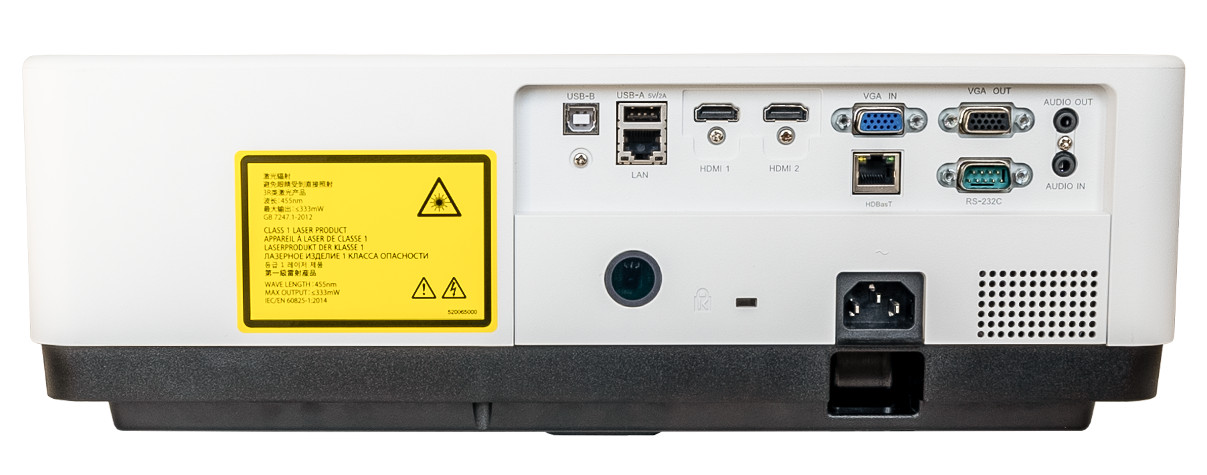

| TERMINALS | |||
| HDBaseT In |
RJ45 x 1 |
||
| HDMI In |
HDMI x 2 |
||
| VGA In |
Dsub15 x 1 |
||
| VGA Out |
Dsub15 x 1 |
||
| USB |
USB Type A x 1 (Memory Viewer) |
||
| USB |
USB Type B x 2 (Firmware) |
||
| Audio In |
3.5 mm MiniStereo x 1 |
||
| Audio Out |
3.5 mm MiniStereo x 1 |
||
| Built-in Speaker |
Mono 16 Watts |
||
| Fan Noise (Eco/Normal) |
27.5 dB / 37.5 dB |
||
| Dimensions (H x W x D) |
5.3 x 15.9 x 14.7 in (13.5 x 40.5 x 37.3 cm) |
||
| Weight |
17.0 lb (7.7 kg) |
||
| Power Requirements |
100–240 V AC, 50/60 Hz |
||
| Power Consumption |
0.5 W in Eco Standby mode, up to 360 W |
||
| Thermal Dissipation |
1,228 BTU |
||
| Standard Accessories |
|
||
Warranty
Projector: 3-year/6000-hour limited warranty (whichever occurs first).
Laser Light Engine: 20,000 hours use
