Overview

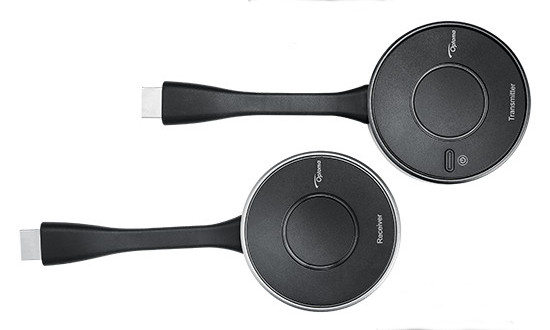

Optoma QuickCast Pro-4K Mirroring Starter Kit
4K Wireless Display & Presentation System
Easily broadcast 4K sources and share content from HDMI sources wirelessly using the Optoma QuickCast Pro. Simply connect the QuickCast Pro receiver to an HDMI input and plug the HDMI transmitter into the source and begin wirelessly transmitting office documents, presentations, videos and digital content with the click of a button.
The HDMI transmitter features an integrated battery with up to 6 hours of battery life for crystal clear digital video and presentations without being tethered to a power adapter. Operating on 802.11ac MIMO technology on a 5 GHz frequency ensures maximum connection stability with minimal interference signal interference up to 30 feet away.
The QuickCast Pro Starter Kit includes one Transmitter and one Receiver. The charger is not included. (See Accessories tab.)
- Wireless HDMI mirroring
- One button image sharing with no software to install
- 4K UHD native resolution, 1080p and WUXGA compatible
- HDMI Transmitter (HDCP 1.4) with 6 hour battery life with LED power gauge
- HDMI Receiver (HDCP 2.0)
- USB-C charging port
Specifications
| TECHNICAL SPECIFICATIONS |
| Audio |
2-channel PCM (stereo) |
| Connectivity |
HDMI Receiver Specifications: HDMI 2.0 (HDCP 2.2)
HDMI Transmitter Specifications: HDMI 1.4 (HDCP 1.4) |
| Display Technology |
HDMI |
| Maximum Resolution |
4K UHD (3840 x 2160) |
| Native Resolution |
4K UHD (3840 x 2160) |
| Operating Temperature |
41–104°F (5–40°C), 85% max humidity |
| Power Consumption |
HDMI Receiver Specifications: 750mA
HDMI Transmitter Specifications: 550mA |
| Power Source Hz |
HDMI Receiver Specifications: DC power adapter (5V, 2-amps)
HDMI Transmitter Specifications: USB-C (5V, 2-amps) Internal battery |
| Power Supply |
AC input 100-240 V, 50-60 Hz, auto-switching |
| Wireless Technology |
802.11ac MIMO (5 GHz) |
|
| COMPATIBILITY SPECIFICATIONS |
| Video Compatibility |
Encoder and Decoder: H.264 |
|
| PHYSICAL SPECIFICATIONS |
| Dimensions |
HDMI receiver: 2.8” x 0.9” x 6.7”
HDMI transmitter: 2.8” x 1.2” x 6.7” |
| Weight |
HDMI receiver: 2.2 oz.
HDMI transmitter: 4.3 oz. |
|
| OTHER |
| What's in the Box? |
The bundle consists of:
One receiver (QCP-4K-HDMIRX)
One transmitter (QCP-4K-HDMITX) |
| SKU |
QCP-SK-4K-HDMI |
| UPC |
796435091569 |
| Warranty Info |
1-year limited warranty |
