Optoma ZW403

Laser Laser DLP Projector, WXGA, 4K input, 4500 Lumens, Refurbished, 1-year warranty
Item #0601-3878-UB Model #ZW403RFBA
$709.00
Price

Overview

Optoma ZW403

WXGA Laser Projector

Brighten any room with razor-sharp, 4,500-lumen, WXGA projection with the remarkable Optoma ZW403. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.

Compact size, low weight, and quiet operation make this Optoma projector perfect for classrooms, meeting rooms, boardrooms, and digital signage. Vertical keystone, 360° and portrait mode operation enable flexible installations.

HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX, or Telnet. A 10W speaker provides rich audio for all-in-one applications.

The Optoma ZW403 is a WXGA projector that ensures a high-quality, professional presentation. As a 3D DLP projector, it offers vibrant colors and contrast for immersive viewing. This professional laser projector is designed to meet the needs of demanding business and educational environments.



Key Features

  • 4,500 ANSI lumens with 300,000:1 contrast ratio
  • 4K UHD input with HDMI 2.0 (HDCP 2.2)
  • HDR10 and HLG compatible
  • DuraCore maintenance-free laser light source up to 30,000 hours
  • 1.3x optical zoom and vertical keystone
  • 24/7, 360° and portrait mode operation



Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Crestron Roomview® – NETWORK CONTROL Roomview®

Software provides a custom configurable interface to monitor, manage, and control every device in every room remotely, from any computer.

  • Manage up to 250 projectors at the same time (via master PC).
  • Control and alter the projector settings using a simple web browser page, including OSD menu control.
  • Set up email alerts for warning messages.
  • Ideal for large installations in both educational and business environments.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses are required.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10 (native), 16:9, 4:3, LBX and auto compatible
Audio 10-watt stereo speaker
Brightness 4,500 ANSI lumens

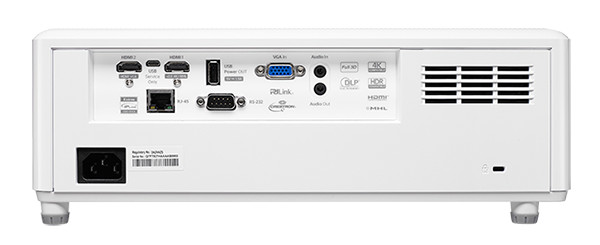

Connections 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x audio in (3.5mm), 1x USB-A (power, 5V, 1.5A), 1x micro USB (service)
Contrast Ratio 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
Display Technology Texas Instruments™ 0.65" WXGA DMD
Displayable Colors 1.07 billion
Keystone Correction ±30° Vertical
Light Source Type DuraCore laser
Light Source Life Up to 30,000 hours (Eco), 20,000 hours (Normal)
Maximum Resolution HDMI 2.0: 4K UHD (3840 x 2160, 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200)
Native Resolution WXGA (1280 x 800)
Noise Level 32 dB
Offset 100%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption Bright: 219 W typical, 252 W max, Eco: 162 W typical, 186 W max
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 3' – 32.6' (without zoom)
Projection Lens f=16.90–21.60 mm, F=2.43–2.78
Projection Method Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
360˚: auto dims to 60% ±5% in 195˚– 345˚ orientation
Portrait: auto dims to 90% ±5%
Projection Screen Size 19.7" – 315.8"
Remote Control Full size remote with laser pointer
Throw Ratio 1.19–1.54:1 ±5%
Uniformity 75%
Zoom Type 1.3x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz. Required 3D glasses are sold separately.
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate (120 Hz for 1080p 3D feature), 24 – 85 Hz
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 13.26" x 4.8" x 10.5"
Security Kensington® lock port, password (OSD)
Weight 9.4 lbs
OTHER
What's in the Box? ZW403, AC power cable, remote control, batteries, quick start guide.
Optional Accessories Ceiling mount
UPC 796435444648
Warranty Info 5-year or 12,000-hour light source warranty (whichever comes first), 2-year parts and labor limited warranty on the projector.
