Optoma W412

DLP Projector, 1280x800 WXGA, 4400 Lumens, D:W=1.54-1.72:1, 1 year warranty
Item #0601-3855 Model #W412

Overview

Optoma W412

Bright WXGA Projection

  • Incredible 4,400 lumens and 50,000:1 contrast ratio
  • Flexible installations with 1.1x zoom and RS232
  • 4K UHD HDR (HDMI 2.0) input compatible
  • Accurate color with sRGB & REC.709 color profile
  • Powerful 10-watt speaker
  • Minimal maintenance with 15,000 hour lamp life
Exceptional brightness and lamp life

Project incredibly bright 4,400 lumens, WXGA images with the Optoma W412. Support for 4K HDR input sources, sRGB and REC.709 color profiles with a 50,000:1 contrast ratio ensures sharp and vivid images, ideal for classrooms, meeting and training rooms.

The 1.1x zoom, keystone correction and RS-232 control deliver flexible installation options. Powerful 10-watt audio fills a room with loud and crisp audio to further enhance media and presentations.

Robust inputs include HDMI 2.0 and VGA for connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.

Features

Direct Power On

Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

MHL Connectivity

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos and share photos on the big screen.

Integrated Speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker. Built-in speakers provide exceptional sound quality and are easy to set up without the need for costly external speakers.

Long Lamp Life

Reduce the number of lamp changes with long lamp life.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

USB Power

Power and charge your USB devices with the USB power port. The port delivers up to 1-amp and ideal for some HDMI streaming sticks.

Signal Power On

The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

4K UHD

4K UHD (3840 x 2160) resolution delivers extremely sharp images with 8.3-million pixels onscreen for unrivaled detail and clarity.

Full HD 1080p

1080p (1920×1080) resolution renders sharp and detailed images from HD content without downscaling or compression, which is perfect for movies, TV shows and gaming.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10 (native), 16:9, 4:3, LBX and auto compatible
Audio 10 W
Brightness 4,400 ANSI lumens
Compatible Aspect Ratio 16:9 (native), 4:3, LBX and auto compatible

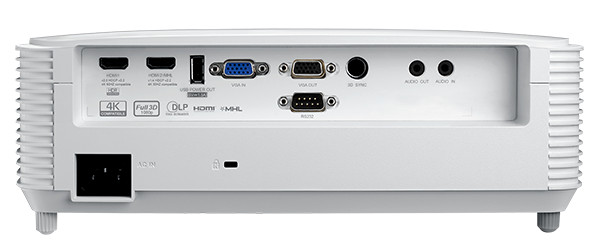

Connections 1x HDMI 2.0, 1x HDMI 1.4a, 1x VGA, 1x audio in, 1x USB-A, 1x VGA out, 1x audio out
Contrast Ratio 50,000:1
Control Unit RS232
Display Technology Texas Instruments 0.65" WXGA DMD
Displayable Colors 1.07 billion
Image Size 30"–302.5"
Keystone Correction ± 40° Vertical
Light Source Type 245 W
Light Source Life 4,000/10,000/15,000 (Bright/ECO/Dynamic)
Maximum Resolution HDMI 1.4a: WUXGA (1920 x 1200), HDMI 2.0: 4K UHD (3840 x 2160)
Native Resolution  WXGA (1280 x 800)
Noise Level 26 dB
Offset 112% ±5%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 325 W max (Bright), 295 W typical (Bright), 225 W max (Eco), 205 W typical (Eco)
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 3.3'–32.8' (without zoom)
Projection Lens F=2.43–2.53, f=21.86–24 mm
Projection Method Front, rear, ceiling mount, tabletop
Projection Screen Size 30"–302.5"
Remote Control Full size remote
Throw Ratio 1.54~1.72:1
Uniformity 85%
Zoom Type 1.1x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA
Horizontal Scan Rate 15.375~91.146 KHz
RoHS Compliant
Vertical Scan Rate 50~85 Hz (120 Hz for 3D feature projector)
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p
PHYSICAL SPECIFICATIONS
Dimensions (W x D x H) 12.4" x 9.5" x 4.5"
Security Kensington® lock port, password (OSD)
Weight 7.7 lbs
OTHER
What's in the Box? W412 projector, AC power cord, remote control, batteries for remote, carrying case, quick start guide and warranty card
Optional Accessories Ceiling mount
UPC 796435443993
Warranty Info 3-year Optoma Express Warranty, 1-year on lamp
