Optoma X343

DLP Projector, 1024x768 XGA, 3600 Lumens, D:W 1.94-2.15:1, 1 Year Warranty
Item #0601-3811 Model #X343

Overview

Bright XGA Projector

X343

  • Luminous XGA projection with 3,600 lumens and 22,000:1 contrast ratio
  • HDMI, VGA and composite connectivity
  • Up to 15,000-hour lamp life
  • Vertical keystone for easy positioning
  • Integrated 10-watt speaker

Robust I/O and superior performance

Experience luminous XGA images with the 3,600 lumen Optoma X343. Its 22,000:1 contrast ratio, 1.94 – 2.15:1 throw ratio and 1.1x zoom make it ideal for small to medium spaces, such as classrooms, offices and training spaces.

Vertical keystone support simplifies placement for easy installation. An integrated 10-watt speaker delivers crisp, room-filling audio that enhances presentations and videos without additional equipment.

Robust input options, including HDMI, VGA and composite enable connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.

Features

Amazing Color

Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended. Our projectors can also create saturated colors, great for gaming and animated movies.

Full 3D

Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144Hz rapid-refresh rate provides ultra-smooth flicker-free images. Optoma 3D glasses required.

High Contrast

Add more depth to your image with a high-contrast projector. With brighter whites and ultra-rich blacks, images come alive and text is crisp and clear.

Eco+

Specially designed lamp modes reduce power consumption by up to 70%. Each mode also improves lamp life, which lowers the total cost of ownership and reduces maintenance.

Quick Resume

This feature allows the projector to be instantly powered on again within 100 seconds of turning it off.

AV Mute

When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.

Auto Power Off

To help save energy, this feature automatically turns off the projector after a set period of time, if it is not being used.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 4:3
Audio 10 Watt Speaker
Brightness 3,600 lumens
Compatible Aspect Ratio 4:3 (native), 16:9 and auto compatible

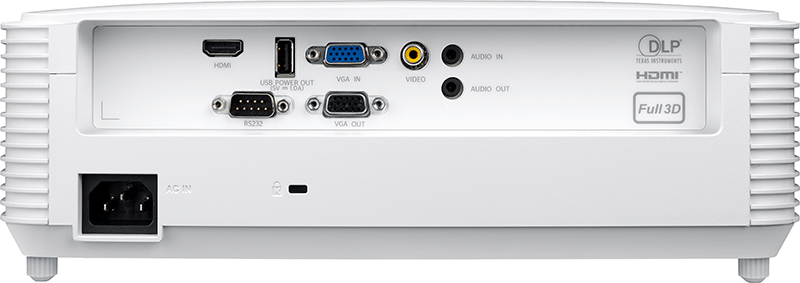

Connections 1 x HDMI v1.4a, 1 x VGA, 1 x composite, 1 x audio-in, 1 x USB-A (5v / 1.0 amp), 1 x VGA, 1 x audio, 1 x RS232
Contrast Ratio 22,000:1
Display Technology Texas Instrument 0.55” XGA DMD
Displayable Colors 1.07 Billion
Keystone Correction ± 40° Vertical
Light Source Type 203W
Light Source Life 15,000/12,000/10,000/6,000 (Eco+/Dynamic/Eco/Bright)
Lens Shift None
Maximum Resolution UXGA (1600 x 1200)
Native Resolution XGA (1024 x 768)
Noise Level 27dB
Offset 115% ±5%
On-Screen Display Complete on-screen menu adjustments in 26 languages
Operating Temperature Sea Level to 10,000 feet (@73°F); must manually switch to high-altitude mode at 5,000 feet & above
Power Consumption 230W (Bright) / 190W (Eco)
Power Supply AC input 100-240V, 50-60Hz, auto-switching
Projection Distance 3.9′ – 46.9′ (without zoom)
Projection Lens F=2.41~2.53 ; f = 21.85~24 mm
Projection Method Front, rear, ceiling mount, tabletop
Projection Screen Size 27.7" – 304.4"
Remote Control IR remote control
Throw Ratio 1.94 – 2.15 ±5%
Uniformity 80%
Zoom Type 1.1x Manual
COMPATIBILITY SPECIFICATIONS
3D Compatibility Side-by-Side: 1080i50 / 60, 720p50 / 60, Frame-pack: 1080p24, 720p50 / 60, Over-Under: 1080p24, 720p50 / 60
Computer Compatibility WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac
Horizontal Scan Rate 15.3 – 91.1kHz
RoHS Compliant
Vertical Scan Rate 50-85 Hz (120Hz for 3D feature projector)
Video Compatibility SDTV, HDTV
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 12.4″ x 3.9″ x 9.6″
Security Security bar, Kensington lock, password protection, keypad lock
Weight 6.7 lbs
OTHER
Optional Accessories DLP Link™ 3D glasses, HDCast Pro, ceiling mount
Standard Accessories AC power cable, remote control, batteries, quick start guide, CD user manual
UPC 796435442484
Warranty Info 3-year parts and labor warranty, 1-year on lamp
