Optoma X605e
Features
Brilliant Presentations With Maximum Installation Flexibility
- Bright crystal clear images for large venue applications
- Unsurpassed color accuracy for the most impactful presentations
- Vertical and horizontal lens shift for ease of installation
- Optional lenses for maximum installation flexibility
- 360-degree operation
- 6000 Lumens XGA
The Optoma X605e was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs. Its powerful 6000 lumens bright output combined with a remarkable 2000:1 contrast ratio deliver amazingly bright, color-rich presentations with sharp, clear text and graphics.

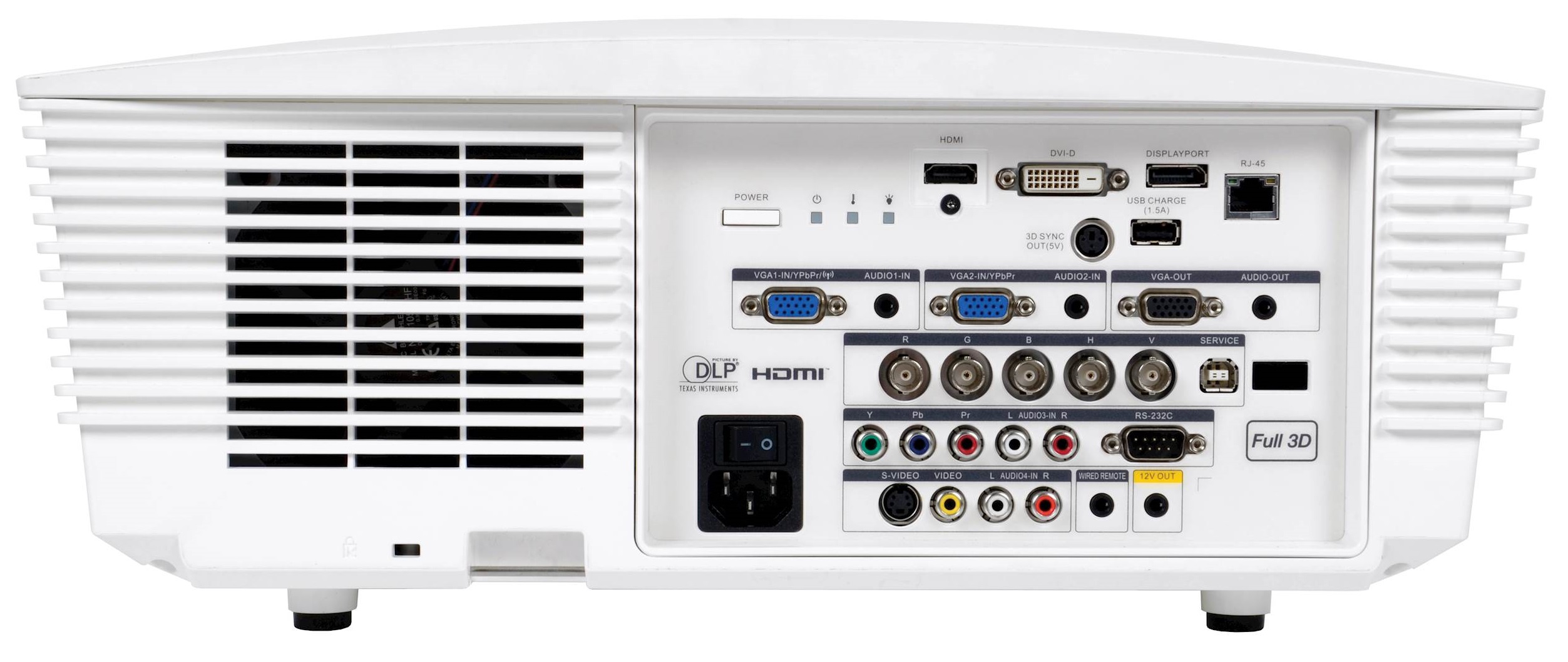

The Optoma X605e features one of the most comprehensive input panels and most advanced feature set in its class to ensure the projector will satisfy your current and future needs: HDMI, display port and DVI for digital connectivity, 2x VGA inputs and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12 volt trigger for maximum installation convenience. Just a few of the many outstanding features on this remarkable product.
Specifications
| Display Technology | Single 0.55” DarkChip3™ DLP® Technology by Texas Instruments™ |
| Resolution | XGA 1024 x 768 |
| Brightness | 6000 lumens |
| Contrast Ratio | 2000:1 (full on/full off) |
| Lamp Life2 Eco/Bright | 4000/3000 (hrs) |
| Throw Ratio | 0.8:1-5.18:1 with lenses that are sold separately |
| Lens Shift | Horizontal ±10% offset Vertical: -20~100% offset |
| I/O Connectors | Display port, HDMI, DVI-D with HDCP, two VGA-in, VGA-out, S-video, composite video, component video, five BNC (RGBHV/YPbPr), two stereo mini jack audio-in, two RCA stereo audio-in, audio-out, 3D VESA port, wired remote, USB-A charging port, RS-232C, RJ45, and 12V trigger |
| Keystone Correction | ±30° Vertical |
| Weight | 18.6 lb (8.4 kg) w/o lens |
| Dimensions (W x D x H) | 16.9” x 13.5” x 7.1” (430 x 340 x 181mm) |
| Aspect Ratio | 16:9 |
| Projection Screen Size | 28.0”–171” (0.71–4.34 m) |
| Projection Distance | 1.6’–9.8’ (0.5–3 m) |
| Projection Lens | F=2.5, f=11.5 mm, Manual Focus |
| Uniformity | 85% |
| Maximum Resolution | WUXGA (1920 x 1200) |
| Computer Compatibility | WUXGA, UXGA, SXGA+, WXGA, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac |
| Video Compatibility | NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p) |
| 3D Compatibility | Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details. |
| Horizontal Scan Rate | 15–91kHz |
| Vertical Scan Rate | 24–85kHz, 120Hz |
| Displayable Colors | 1.07 Billion |
| Noise Level (Eco mode) | 37dB |
| Power Supply | AC Input 100–240V, 50–60Hz, auto-switching |
| Power Consumption | 480W max (bright), 330W (STD), |
| Lamp Type | 365W |
| Security | Kensington® lock port, security bar & keypad lock |
| Remote Control | Fully-featured IR remote with the option to hardwire to the projector |
| Optional Accessories | Three optional lenses, wireless dongle, universal ceiling mount, HDMI cable, Optoma screen, RF 3D glasses, RF 3D emitter, DLP® Link™ 3D glasses, wireless HDMI system and single Cat6 HDBaseT kit |
| Optional Wireless | Yes |
| Warranty | 3 Years |
| RoHS | Compliant |
| Projection method | Front, rear, ceiling mount, table top |
| Warranty | 3-Year Optoma Express Service, 1-Year on Lamp |
Options
 |
 |
 |
 |
 |
BX-DL080 |
BX-DL100 |
BX-DL200 |
BX-DL300 |
BX-DL500 |
Fixed Short Throw Lens |
Short Throw Lens |
Standard Throw Lens |
Long Throw Lens |
Extended Long Throw Lens |
Downloads
Warranty
3-Year Optoma Express Service, 1-Year on Lamp
