NEC P554W

LCD Projector, 1280x800 WXGA, 5500 Lum, H&V Shift, 20W Speaker, 3-Year Warranty
Item #0601-3273 Model #NPP554W

Overview

NEC P554W

5500-lumen WXGA Entry-Level Professional Installation Projector

The P Series is ideal for higher education classrooms, corporate boardrooms and rental where bright, sharp images are required. The NEC P554W includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility.

Adding horizontal & vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challenges exist. The long life lamp reduces maintenance and lowers total cost of ownership.

Features

Key Features

  • Horizontal & Vertical lens shift enables flexible projector placement
  • Powerful 20W speakers provide volume needed for large rooms
  • Built-in HDBaseT enables simplified installations with a single cable for video and audio over long distances
  • Dual HDMI inputs (with HDCP) ensures quick switching between presentations
  • LAN connection for control and asset management over the network
  • Optional wireless display with MultiPresenter Stick
  • Variable audio-out allows the remote control to adjust speaker volume
  • 20,000:1 Contrast Ratio creating extremely detailed images
  • 8000-hour lamp (eco) drastically reduces maintenance, thereby decreasing the total cost of ownership
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for challenging installation applications in higher education and corporate
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations



Technologies

20W Audio

Powerful 20-watt speaker provides volume needed for large rooms

Advanced AccuBlend™

Ensures detailed images when non-native resolution sources are connected to the projector.

Auto Power On

Powers on the projector as soon as it is plugged into a power outlet.

AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Built-in Wall Color Correction

Presets provide for adaptive color tone correction to display properly on non-white surfaces.

Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.

Specifications

Display

Aspect Ratio 16x10 Native Resolution WXGA 1280 x 800
Maximum Resolution WUXGA 1920 x 1200 Contrast Ratio (typical) 20,000:1

Synchronization Range

Horizontal (Analog/Digital) 15–100 kHz
(RGB: 24 kHz or over)		 Vertical 50–120 Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, DDC/CI, USB, LAN

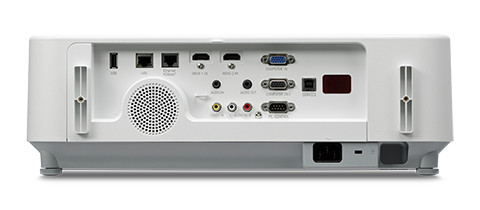

Input Terminals
RGB1 (analog): VGA 15-pin D-sub
RGB2 (digital):  HDMI w/HDCP
RGB3 (digital):  HDMI w/HDCP
RGB4 (digital):  HDBaseT
Video 1:           RCA
Audio 1:           RCA
Audio 2:           Mini stereo
 Output Terminals
Audio out:    1/8 in. stereo
                   (Variable audio out)
Monitor Out: VGA 15-pin D-sub

Power Consumption (typical)

ECO off/ECO Mode/
Standby/Standby-Power Saving		 448 W / 280 W /
2.0 W /0.16 W		 Input Current 1.9–5.0A
Power Requirements 100–240 V AC, 50/60 Hz

Environmental Conditions

Operating Temperature 41–104°F / 5-40°C Storage 14–122°F / -10–50°C

Limited Warranty (parts & labor)

Registered owners receive a 3-year parts and labor warranty including InstaCare next business day exchange. One year on lamp.

Additional Features

  • Manual keystone correction
  • Wireless LAN (control only)
  • USB Viewer
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense


Optical

Display Technology 0.64" LCD Light Output (Lumens) 6000 (Center)
5500 (Eco Off)
4400 (Normal Eco)
3300 (Eco)
Lamp Type 330 W AC Lamp Life
(up to)		 4000 hours (Eco Off)
6000 hours (Normal Eco)
8000 hours (Eco)
Screen Size (diagonal) 30 to 300 in.
0.76 to 7.6 m		 Throw Ratio 1.2 to 2.1:1
Projection Distance 2.6 to 44.3 ft.
0.8 to 13.5 m		 Projector Angle 0 to 9.7° tele
0 to 16.1° wide
Lens
  Zoom:      1 to 1.7x
  Zoom:      Manual
  Focus:      Manual
  F number: F=1.7 to 2.2
  f number:  f=17.4 to 29.0 mm
 Keystone Correction Manual ±20° horizontal,
           ±30° vertical

Mechanical

Dimensions (WxDxH) 16.5 x 13.0 x 5.6 in. / 420 x 329 x 141 mm
Net Weight 10.6 lbs / 4.8 kg
Fan Noise 37 dB normal / 34 dB eco
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Regulations USA UL 60950-1 / FCC Part15 Class B, Canada CSA 60950-1 / ICES-003 Class B, NOM

Ships With

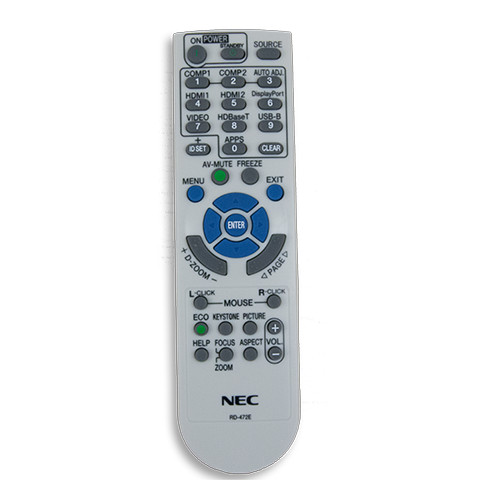

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • User manual
  • Quick Start Guide
  • Important Info
  • Product registration card
  • Security Sticker
