Epson 982W

LCD Projector, WXGA, 4200 Lumens, Long-Life Lamp
Item #0601-3111 Model #V11H987020

Overview

Epson PowerLite 982W

3LCD WXGA Classroom Projector with Dual HDMI

Bring powerful projection to your classroom with the advanced PowerLite 982W projector. The perfect addition to any learning environment, this ultra bright, 4,200-lumen projector enhances lesson plans and promotes collaboration with vibrant, widescreen displays.

Featuring an integrated Moderator function, the PowerLite 982W allows up to 50 users to connect and share content from laptops or mobile devices. Designed with durability in mind, this premium projector provides a long lamp life up to 17,000 hours in ECO Mode. With a 1.6 optical zoom, a 16 W speaker, a microphone input, and dual HDMI ports, creating dynamic, high-definition displays has never been easier.



Key Features
  • 4,200 lumens of color and white brightness
  • Native WXGA resolution and 16:10 aspect ratio
  • Long lamp life up to 17,000 hours in ECO Mode
  • 1.6x optical zoom for easy placement and installation
  • Built-in Moderator function for easy sharing

(Model: V11H987020)

Features

  • 3-chip 3LCD technology for Best-in-Class Color Brightness5: 4,200 lumens of color and white brightness1
  • Bright, widescreen images: with native WXGA resolution and a 16:10 aspect ratio
  • Low-priced, long-lasting lamp: up to 17,000 hours in ECO Mode4
  • 1.6x optical zoom: expand your projector placement or installation flexibility; get sharp, clear images with no digital distortion
  • Moderator function2: allows up to 50 users to connect to the display simultaneously; perfect for displaying a variety of content or comparing students’ work side-by-side
  • Advanced network connectivity: RJ-45 allows remote network projector management, presentations over the network, and more
  • Project from laptops and mobile devices: wirelessly display from PC, Mac®, Chromebook™, iOS® and Android™ devices3
  • Dual HDMI ports: supports multiple high-definition AV devices
  • Built-in 16 W speaker and microphone input: create dynamic and engaging projector displays
  • Screen size up to 280": with Split Screen6 capability for side-by-side viewing

Eco Features

  • RoHS compliant
  • Recyclable product7
  • Epson America, Inc. is a SmartWay™ Transport Partner8
Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Moderator control, Connecting via QR code and Projector Remote are not available on Epson iProjection™ for Chromebooks.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

4 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

5 Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.

6 Split Screen feature requires remote control. Consult your user manual for input combinations.

7 For convenient and reasonable recycling options, visit www.epson.com/recycle

8 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.



Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technology
Projection Method: Front/rear/ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Resolution: 1280 x 800 (WXGA)
Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
Aspect Ratio: 16:10
Color Brightness1 - Color Light Output: 4,200 lumens
White Brightness1 - White Light Output: 4,200 lumens
Contrast Ratio: Up to 16,000:1
Color Processing: 10 bit
Color Reproduction: Over 1.07 billion colors
Size (projected distance): 29" – 280" (0.85 – 8.4 m) (Zoom:Wide)
29" – 280" (1.40 – 13.71 m) (Zoom:Tele)
Keystone Correction Vertical: ± 30 degrees (Automatic)
Horizontal: ± 30 degrees (Slider)
USB Plug 'n Play: Projector is compatible with PC and Mac® computers
Lamp Type: 230 W UHE
Lamp Life2: ECO Mode: Up to 17,000 hours
Medium Mode: Up to 10,000 hours
Normal Mode: Up to 6,500 hours

Projection Lens:

Type: Manual focus
F-number: 1.51 – 1.99
Focal Length: 18.2 – 29.2 mm
Zoom Ratio: Optical zoom 1.0 – 1.6
Throw Ratio Range: 1.38 (Zoom:Wide) to 2.24 (Zoom:Tele)

Other Features

Display Performance: NTSC: 480 lines; PAL: 576 lines (Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Operating Temperature: 41° to 95°F (5° to 35°C)
Fan Noise: ECO Mode: 28 dB
Normal Mode: 37 dB
Security:
  • Kensington®-style lock provision
  • Padlock
  • Security anchor bar
Speaker 16 W (mono)

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz
Power Consumption: ECO Mode: 235 W
Normal Mode: 354 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.3 W

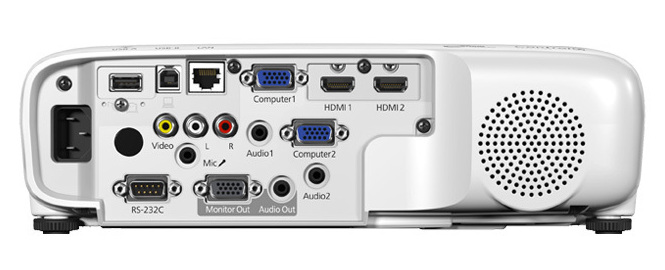

Interfaces:

  • 1x USB-A
  • 1x USB-B
  • 1x LAN
  • 2x HDMI
  • 2x Computer/Component
  • 1x Video
  • 1x RS-232c
  • 1x Stereo Mini-jack (Mic)
  • 1x Monitor Out
  • Audio 1 & 2
  • Audio L & R
  • 1x Audio Out
  • Wireless LAN port: 802.11 b/g/n (optional – module sold separately)

Dimensions (W x D x H):

Including feet: 12.1" x 11.5" x 4.1" (307 x 292 x 104 mm)
Excluding feet: 12.1" x 11.1" x 3.5" (307 x 282 x 89 mm)
Weight: 6.83 lb (3.1 kg)

Remote Control:

Features: A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, Volume
Operating Distance: 19.7 ft (6 m)
Operating Angle: Right/left: ±30 degrees
Upper/lower: ±15 degrees



Warranty

Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty



What's In The Box:

  • PowerLite 982W Projector
  • Power cord
  • Computer cable (VGA)
  • Projector remote control
  • Batteries
  • Software CD
  • Quick setup sheet
  • Warranty card
Notes

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
