Epson EF-100B

Laser LCD Projector, WXGA 1280x800, 2000 Lumens, D:W 1.06:1, Wi-Fi, TV Tuner, Android OS, Streaming Apps, Google Assistant, Black, 2-Year Warranty
Item #0601-3088 Model #V11H914320

Overview

Epson EF-100B

Mini-Laser Streaming Projector with Android TV - Black

The Epson EF-100 represents a new type of 3-chip laser projection technology designed for today’s content streamers. Based on unique Epson MicroLaser Array Technology, this projector is not only elegantly compact, but capable of producing an incredibly bright and colorful image up to 150" on virtually any wall or dedicated screen.

Powered by Google’s Android TV, the moment you power-on the EF-100, you’re ready to use all your favorite streaming apps such as Netflix®, YouTube™, HBO NOW®, Hulu, WatchESPN and more. The world’s smallest 3LCD, true laser-based projector, the EF-100 represents a new type of streaming experience and a significant technical achievement in mini-laser digital projection.

Stream big. Stream anywhere.

Features

Key Features:

  • Stunning Image Quality: produces an incredibly bright and colorful projected image up to 150" on virtually any wall or dedicated screen — even when the lights are on.
  • Powered by Android TV: watch all your favorite streaming channels including Netflix, HBO NOW, YouTube and more.1
  • Impressive Audio Technologies: integrated high-quality bass-reflex speaker and Bluetooth® wireless speaker support for a true audiophile performance.
  • Elegant, Compact Design: clean and modern design available in White and Silver, or Black and Copper to beautifully fit within any décor; ultra portable for streaming on the go.
  • Epson MicroLaser Array Projection Technology: unique multi-array laser diode technology produces an exceptional level of brightness while significantly enhancing black density.
  • True, 3-Chip Projector Design: advanced 3LCD technology displays 100 percent of the RGB color signal for every frame without any "rainbowing" or "color brightness" issues.



Additional Features:

  • Outstanding Brightness: capable of displaying high-definition content at an exceptional 2,000 lumens of brightness for both color and white.4
  • Brilliant Color: provides outstanding color accuracy and vibrancy for all your streaming and gaming content.
  • Epson Cinema Lens: utilizes a proprietary 9-element lens structure for exceptional image clarity and edge-to-edge focus uniformity.
  • Vertical auto keystone correction: depending upon how the EF-100 is oriented, it will analyze the image and correct the vertical geometry for a beautiful viewing experience.



Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWaySM Transport Partner6

Notes:

1 Some apps require paid subscriptions.

2 Based on 3LCD laser projectors with 500 lumens or more in brightness. Per Futuresource Consulting, May 2019.

3 In order to use the Android TV, the device must be configured on a network via a wireless connection.

4 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: Epson 3-Chip 3LCD
Projection Method: Front/rear/floor stand/upside down/vertical
Driving Method: Poly-silicon TFT Active Matrix, 0.59"-wide panel
Native Resolution: 1280 x 800 HD widescreen
Maximum Resolution: 1920 x 1080
Color Brightness - Color Light Output: 2,000 lumens
White Brightness - White Light Output: 2,000 lumens
Aspect Ratio: 16:10
Resize: 16:9, 4:3
Size - projected distance: 22" - 150" (Zoom: Wide and Zoom: Tele)
Keystone Correction: Vertical:     ±45 degrees
Horizontal: ±40 degrees
Color Processing: Full 10-bit
Color Reproduction: Full-color (up to 16.77 million colors)
Light Source Life: Normal Mode:    12,000 hours
Extended Mode: 20,000 hours
Illumination Technology: Laser Diode

General:

Operating Temperature: 41° to 86° F (5° to 30° C)
Security: Kensington Lock
Case Color: Black, Copper
Country of Origin: Philippines/China
Dimensions (WxDxH): 8.3" x 9.1" x 3.6" (211 x 231 x 91 mm) including feet
Weight: 6.0 lbs (2.7 kg)
Power Supply Voltage: 100 – 240 VAC ± 10%, 50/60 Hz
Power Consumption: ECO Mode:     118 W
Normal Mode: 178 W

Projection Lens:

Type: No Optical Zoom/Focus (Manual)
F-number: 1.58
Focal Length: 13.53 mm
Zoom Ratio: 1.0 – 1.35 (digital)
Throw Ratio Range: 1.04 – 1.40

Projector Details:

Color Modes: Dynamic, Bright Cinema, Natural, Cinema
Input Signal: HDMI® (HDCP 1.4)

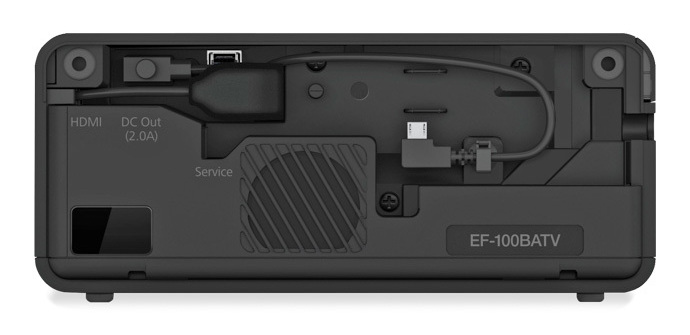

Interfaces:
  • 1 x USB Type A (2 Amp for AndroidTV power and firmware updates)
  • 1 x USB Mini-B (for service and firmware update)
  • Android TV Dongle: Wireless 2.4 GHz and 5 GHz; IEEE 802.11a, b, g, n, ac; Bluetooth 4.2 Class 2; Video Resolution up to 4k@ 60 HZ 4:4:4 color
Fan Noise: 26 – 29 dB

Remote Control:

Features: Front and rear directional
Operating Distance: 16.4 ft (5 m)
Operating Angle:
  • Front: Right/Left: ±30 degrees
  • Upper/Lower: ±15 degrees
  • Rear: Right/Left: ±30 degrees
  • Upper/Lower: 0 – +15 degrees

Warranty:

2 Years

What's In The Box:

  • EF-100B projector (black)
  • Android TV HDMI Dongle
  • Power Cable
  • 2 Remote Control with 2 AAA batteries
  • Quick Setup Guide
