Panasonic ET-D3LEW200
Short-Throw Zoom Lens for 3-DLP Projectors
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Key Features
- Minimizes Throw Distance, Increases Flexibility — Project in tight spaces from very short throw-distances. With zero offset capability, the ET-D3LEW200 (along with fixed lens ET-D3LEU100) widens the versatility of Panasonic’s 3-Chip DLP™ lineup. (See image below)
- Wide-Range Adjustment After Projector Installation — Powered vertical and horizontal lens-shift provides wide-range adjustment after projector installation, saving time and effort. The ET-D3LEW200 further enhances flexibility with powered optical zoom.

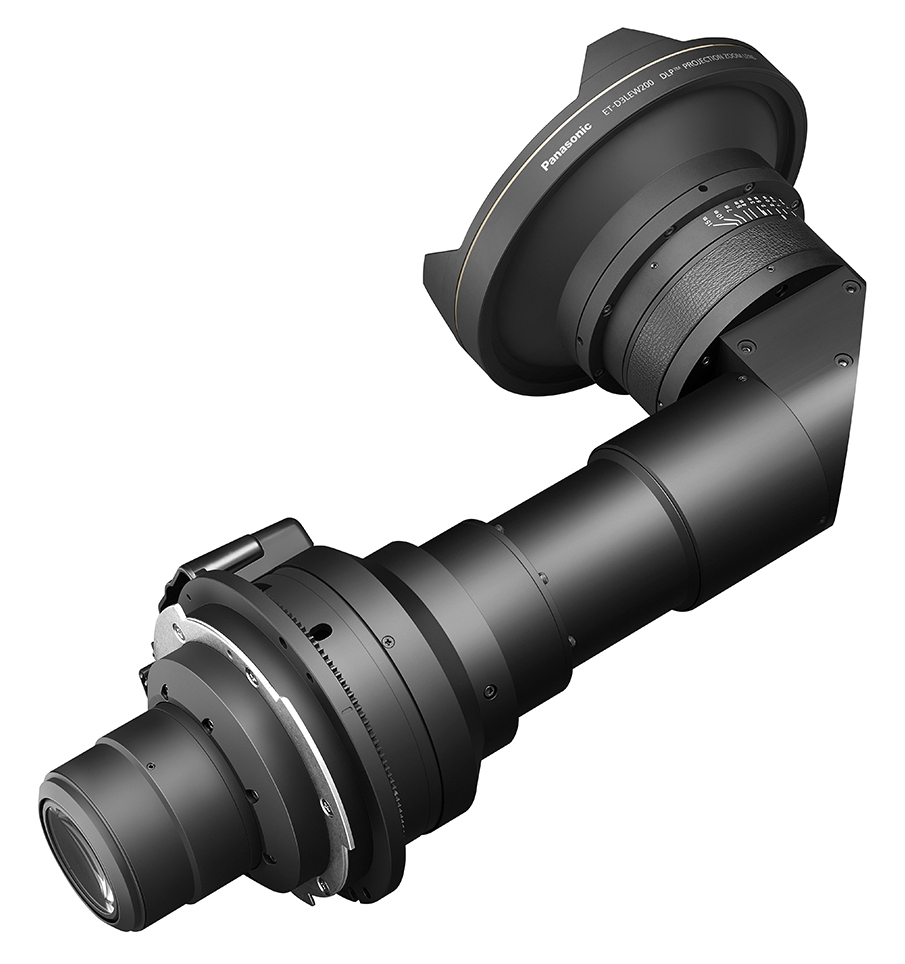

- Lens Design Delivers an Unobstructed View — L-shaped design gives the audience a clear and unobstructed view of the image even in low-ceiling installations.
- Supports AFO (Active Focus Optimizer) to maintain the optimum focus level regardless of content brightness.
- Sharp images immediately after start-up — Compatible projectors continuously monitor ambient temperature around the lens and maintain optimum focus for sharp images, even immediately after start-up.

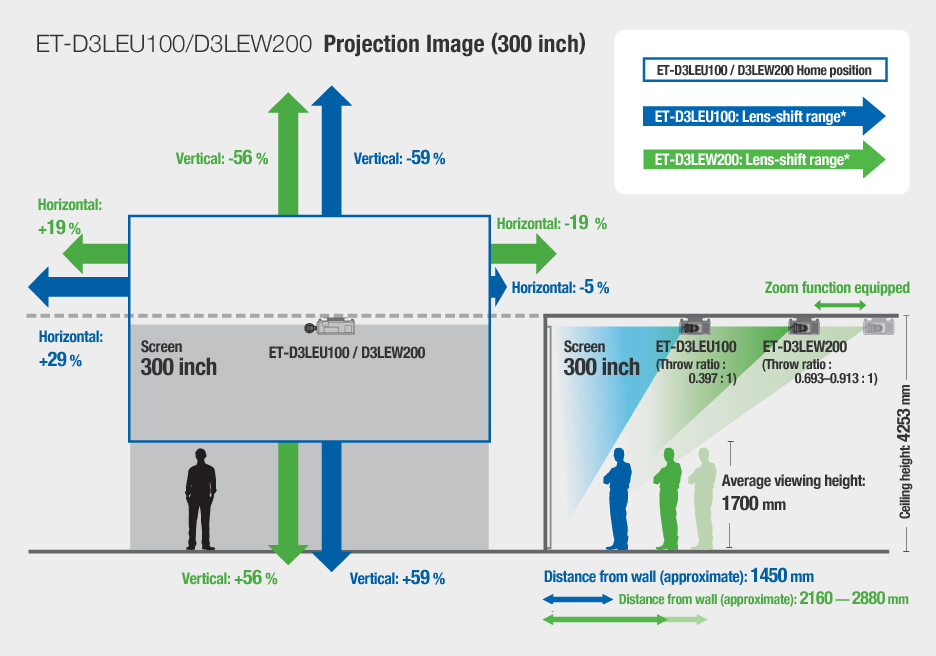

Example of a 300-inch projection image
* These lens shift values are for ceiling installations using the PT-RQ22K. Lens shift values will vary by model. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value.
Specifications
| Lens type | Short-Throw Zoom Lens |
|---|---|
| F value | 2.5 |
| Focal length (f) | 13.8–18.1 mm (17/32"–23/32") |
| Screen size | 200–600 inches |
| Throw ratio | |
| 4K+ | 0.693–0.913:1 |
| WUXGA | 0.645–0.850:1 |
| SXGA+ | 0.699–0.921:1 |
| Auto Lens Identification function – Compatible models |
PT-RQ32K/RZ31K/RS30K/RQ22K/RZ21K/RS20K |
| Lens shift* | |
| Vertical | ±56 % |
| Horizontal | ±19 % |
| Zoom | Yes |
| Dimensions (W x H x D) | 250 x 193 x 495 mm (9 27/32" x 7 19/32" x 19 1/2") |
| Weight | Approx. 9.0 kg (19.8 lbs) |
* Value is for ceiling installations using the PT-RQ22K. Lens-shift value will vary by model. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value.
Same Series Lenses
The D3 Series supports lens memory when used with a projector that also supports this feature. Lens identification is also supported, so that the projector can read the model lens that is installed on it.
| Model: | ET-D3LEF70* | ET-D3LEU100 | ET-D3LEW200 | ET-D3LEW50 | ET-D3LEW300 | ET-D3LEW60 | ET-D3LEW10 | ET-D3LES20 Std Lens |
ET-D3LET30 | ET-D3LET40 | ET-D3LET80 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA (0.80") |
— | 0.444:1 | 0.774–1.02:1 | 0.833:1 | 0.924–1.12:1 | 1.11–1.32:1 | 1.51–2.06:1 | 2.00–2.89:1 | 2.88–5.59:1 | 5.53–8.89:1 | 8.81–16.56:1 |
| D:W WUXGA (0.96") |
— | 0.370:1 | 0.645–0.850:1 | 0.694:1 | 0.770–0.933:1 | 0.924–1.10:1 | 1.26–1.72:1 | 1.67–2.41:1 | 2.40–4.66:1 | 4.61–7.41:1 | 7.34–13.8:1 |
| D:W 1080p |
— | 0.364:1 | 0.634–0.836:1 | 0.682:1 | 0.757–0.917:1 | 0.908–1.08:1 | 1.24–1.69:1 | 1.64–2.37:1 | 2.36–4.58:1 | 4.53–7.29:1 | 7.22–13.6:1 |
| D:W 1366x768 |
— | 0.407:1 | 0.709–0.934:1 | 0.763:1 | 0.846–1.03:1 | 1.02–1.21:1 | 1.38–1.89:1 | 1.83–2.65:1 | 2.64–5.12:1 | 5.07–8.14:1 | 8.06–15.2:1 |
| D:W SXGA+ |
— | 0.396:1 | 0.691–0.910:1 | 0.743:1 | 0.834–1.01:1 | 0.990–1.18:1 | 1.35–1.84:1 | 1.79–2.58:1 | 2.57–4.99:1 | 4.94–7.94:1 | 7.86–14.8:1 |
| D:W WQXGA/4K+ |
— | 0.395:1 | 0.688–0.907:1 | 0.740:1 | 0.825–1:00:1 | 0.986–1.17:1 | 1.34–1.83:1 | 1.78–2.57:1 | 2.56–4.97:1 | 4.92–7.90:1 | 7.83–14.7:1 |
| D:W 4K DCI |
— | 0.247:1 | 0.430–0.567:1 | 0.463:1 | 0.514–0.622:1 | 0.616–0.73:1 | 0.84–1.15:1 | 1.11–1.61:1 | 1.60–3.11:1 | 3.07–4.94:1 | 4.90–9.20:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 – 2.7 |
* Fish-eye lens
