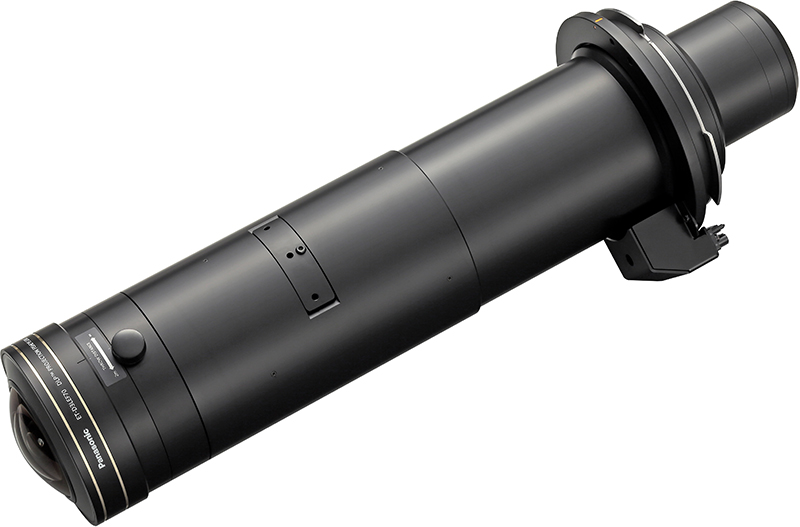

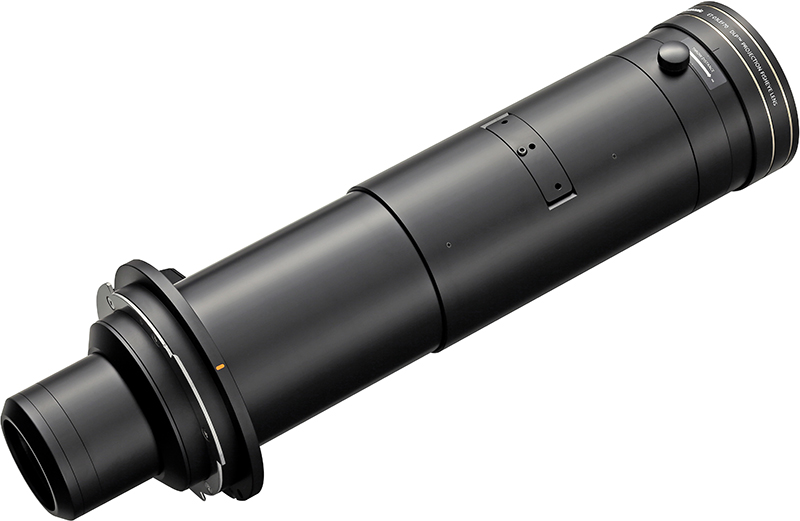

Panasonic ET-D3LEF70
Fisheye Lens for use with all 3-DLP Projectors
Item #0601-2700
Model #ETD3LEF70
Specifications
| Projected Angle: | H:61.3 V:38.4 D:72.3 (WQXGA) H:65.7 V:41.1 D:77.5 (WUXGA) H:66.0 V:66.0 D:75.7 (Full HD) H:60.7 V:45.5 D:75.9 (SXGA+) H:66.0 V:37.1 D:75.7 (WXGA) |
| Aperture (f-stop): | 2.5 |
| Zoom: | N/A |
| Focus: | Adjustable |
| Lens Shift | H:±17% V:±37% (WQXGA) H:±12% V:±27% (WUXGA) H:±13% V:±35% (Full HD) H:±15% V:±25% (SXGA+) H:±21% V:±54% (WXGA) |
| Focal Distance: | 9 mm |
| Dimensions: | 154 × 150 × 529 mm (6.06 × 5.91 × 20.81 inches) |
| Weight: | 7.1 kg (15.7 lb.) |
Same Series Lenses
The D3 Series supports lens memory when used with a projector that also supports this feature. Lens identification is also supported, so that the projector can read the model lens that is installed on it.
| Model: | ET-D3LEF70* | ET-D3LEU100 | ET-D3LEW200 | ET-D3LEW50 | ET-D3LEW300 | ET-D3LEW60 | ET-D3LEW10 | ET-D3LES20 Std Lens |
ET-D3LET30 | ET-D3LET40 | ET-D3LET80 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA (0.80") |
— | 0.444:1 | 0.774–1.02:1 | 0.833:1 | 0.924–1.12:1 | 1.11–1.32:1 | 1.51–2.06:1 | 2.00–2.89:1 | 2.88–5.59:1 | 5.53–8.89:1 | 8.81–16.56:1 |
| D:W WUXGA (0.96") |
— | 0.370:1 | 0.645–0.850:1 | 0.694:1 | 0.770–0.933:1 | 0.924–1.10:1 | 1.26–1.72:1 | 1.67–2.41:1 | 2.40–4.66:1 | 4.61–7.41:1 | 7.34–13.8:1 |
| D:W 1080p |
— | 0.364:1 | 0.634–0.836:1 | 0.682:1 | 0.757–0.917:1 | 0.908–1.08:1 | 1.24–1.69:1 | 1.64–2.37:1 | 2.36–4.58:1 | 4.53–7.29:1 | 7.22–13.6:1 |
| D:W 1366x768 |
— | 0.407:1 | 0.709–0.934:1 | 0.763:1 | 0.846–1.03:1 | 1.02–1.21:1 | 1.38–1.89:1 | 1.83–2.65:1 | 2.64–5.12:1 | 5.07–8.14:1 | 8.06–15.2:1 |
| D:W SXGA+ |
— | 0.396:1 | 0.691–0.910:1 | 0.743:1 | 0.834–1.01:1 | 0.990–1.18:1 | 1.35–1.84:1 | 1.79–2.58:1 | 2.57–4.99:1 | 4.94–7.94:1 | 7.86–14.8:1 |
| D:W WQXGA/4K+ |
— | 0.395:1 | 0.688–0.907:1 | 0.740:1 | 0.825–1:00:1 | 0.986–1.17:1 | 1.34–1.83:1 | 1.78–2.57:1 | 2.56–4.97:1 | 4.92–7.90:1 | 7.83–14.7:1 |
| D:W 4K DCI |
— | 0.247:1 | 0.430–0.567:1 | 0.463:1 | 0.514–0.622:1 | 0.616–0.73:1 | 0.84–1.15:1 | 1.11–1.61:1 | 1.60–3.11:1 | 3.07–4.94:1 | 4.90–9.20:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 – 2.7 |
* Fish-eye lens
