Panasonic ET-MDNDV10

Optional DVI-D Board
Item #0601-2661 Model #ETMDNDV10

Overview

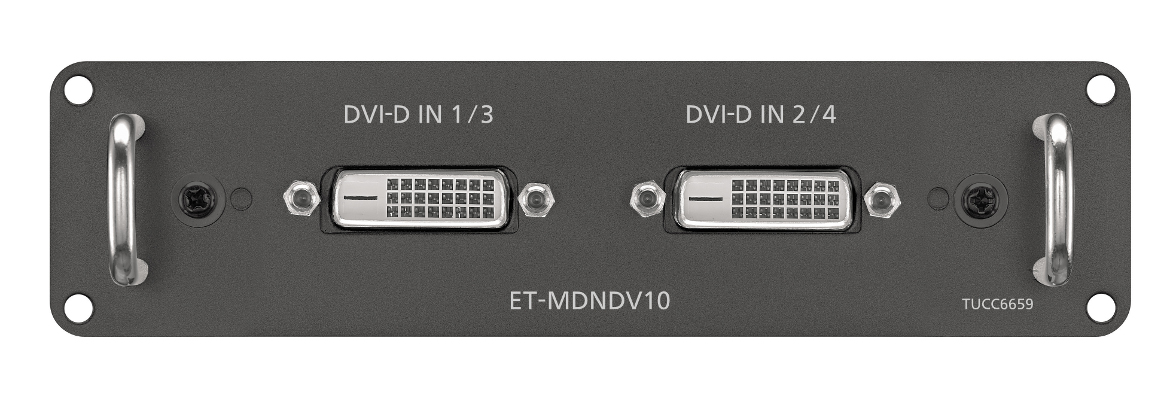

Panasonic ET-MDNDV10

Interface Board for DVI-D 2 input

This is an input board for mounting to select 3-chip DLP™ projectors, which allows input of two DVI-D signal systems.

*This unit does not operate as a stand-alone unit. Use it by mounting to a compatible 3-chip DLP™ projector (sold separately). Please check the Compatibility tab to determine if this accessory will work with your projector.

* It is recommended that installation and removal of the interface board for the main projector unit should be carried out by a qualified technician. Please contact the place of purchase.

Specifications

Compatible slot SLOT NX specification
Connecting terminal DVI-D 24p x 2
DVI 1.0 compliant (only single link supported), HDCP compatible
Compatible signal Resolution Moving image signal: 480i*/576i* to 2048 x 1080
Still image signal: 640 x 400 to 3840 x 2400 (non interlaced)
*Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
Dot clock frequency 25 MHz to 162 MHz
Dimensions (WxHxD) 5-15/16 x 1-17/32 x 5-19/32 in (151 x 38.5 x 142 mm)
Weight 12.3 oz (350 g)

Notes:

  • "SLOT NX" is a name of the slot unique to Panasonic supporting the signal input for the 4K image.
  • The video signal that can actually display will vary depending on the display device (projector or flat panel display) on which the Interface Board is installed. For details, refer to the Operating Instructions of your display device.
