Barco UDM-4K30-NL

Laser 3-DLP Projector, 4K UHD, 2560x1600 native, 25K ANSI Lumens, Gen2, No Lens, 3-Year Warranty
Item #0601-1448 Model #R9401001B1

Overview

Barco UDM-4K30-NL

25,000 ANSI lumens, 4K UHD, 3-chip DLP digital large venue projector

Weighing less than 110 lb (50 kg), the Barco UDM-4K30-NL is the lightest projector in its category. And while the compact and lightweight design of the UDM-4K30-NL saves you lots of installation time and reduces shipping and labor costs, this Barco projector never compromises on the quality or brightness of your projection.

The UDM-4K30-NL features 4K UHD resolution to deliver impactful 4K experiences with mind-blowing colors. This large venue projector offers the widest color spectrum for 30K laser phosphor projection on the market, outperforming the Rec. 709 color space.

Operational efficiency

Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of this 4K UHD projector in your setup. Barco’s unique FLEX feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.

Pulse Electronics

The UDM-4K30-NL is built on the unified Barco Pulse electronics platform. With its proprietary Single Step Processing technology, warping, scaling and 4K UHD processing are done in only one step. The result? A UDM projector with razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.

Connectivity

UDM projectors are the first Barco projectors to be fully connected. The Barco Insights Management Suite Dashboard and remote log file access enable faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated 3G connectivity.

Long lifetime

Thanks to its robustness and built-in dust and pollution filter, you can trust the Barco UDM-4K30-NL to withstand the challenges of life on the road. With the laser phosphor light source, lamp-related costs and maintenance as well as image flicker belong to the past. Barco's outstanding integrated laser cooling prevents overheating and the Constant Light Output functionality guarantees constant brightness and color over the projector's lifetime.

Features

  • Most compact and lightest laser projector in the 30K lumen category
  • Robust design made for the toughest conditions
  • Extremely flexible with widest lens shift and modular design
  • Best-in-class 4K UHD processing at lowest latency with Barco Pulse Single Step Processing
  • Remote fleet management and connectivity with Barco Insights Management Suite

Specifications

Projector type 4K UHD 3-chip DLP digital projector
Technology 0.9" DMDTM x3
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)
Brightness 25,000 ansi lumens / 25,500 center lumens / 27,000 ISO lumens*
Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1
Brightness uniformity 95%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lenses 9 optional TLD+ lenses with throw ratios from 0.43:1 to 11:1
(Lens not included. See Accessories tab for optional lenses.)
Optical lens shift Vertical between -100% to +130%, depending on lens
Horizontal up to ±40%, depending on lens
Motorized zoom and focus (with lens memory on TLD lenses)
Motorized lens shift (with position memory on all lenses)
Color correction P7
Light source Laser phosphor with inorganic phosphor wheel
Light source lifetime 20,000 hours (at 100% laser power, DynaBlack = off)
Optical dowser Digital
Picture-by-picture Two sources simultaneously
Sealed DLP™ core Standard
Orientation 360°
DMX 512 Standard
WARP Direct adjust OSD + toolset
Image processing Embedded warp & blend
Processing Pulse Electronics
Keystone correction Yes
Integrated web server Yes
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 2 flash up to 200 Hz; optional Dual Eye Point 240 Hz

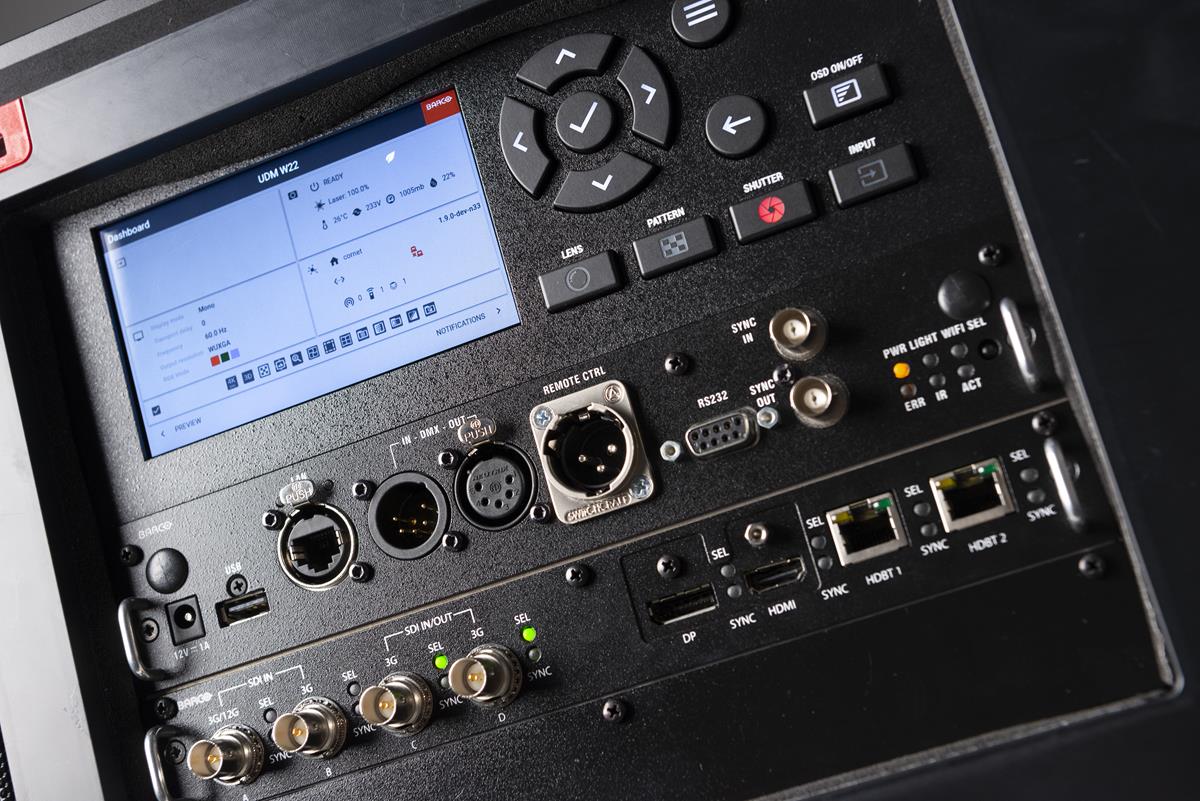

Inputs Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP1.3); Quad 3G/12G SDI/BarcoLink ULTRA
Optional Inputs Quad DP1.2, Fiber SFP
Input resolutions From NTSC up to 4K (4,096 x 2,160)
Refresh rates:
24 Hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240 Hz WQXGA (2560 x 1600)
Max. pixel clock 600 MHz
Software tools Projector Toolset + Android** app + iOS** app
Control XLR wired + IR, RS232, Wifi**, GSM**
Network connection 10/100 base-T, RJ-45 connection, Wifi**
Power requirements 120-160 V (max 70% brightness) 18.5 A / 200-240 V (±10%), 13.5 A, 50-60 Hz
Max. power consumption 1900 W nom/ 2200 W max @ 230 volts ECO STBY < 2W
1300 W nom/ 1530 W max @ 120 volts ECO STBY < 2W
Noise level (typical at 25°C/77°F)

49 dB(A)
Operational ambient temperature 0–40°C / 32°–104°F ***
Operational humidity 0–80% (non condens)
Dissipation BTU

TBD
Dimensions (WxLxH) 725 x 540 x 339 mm / 28.54 x 21.26 x 13.3 inches
Weight 105 lb (48 kg)
Standard accessories Power cord, wireless/XLR wired rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
Warranty 3 years

Notes:

* Brightness levels ±10%

** Wifi and GSM options are not available in all countries.

*** At higher altitude light output might be dimmed.
