Barco UDX-4K40

3-DLP Laser/Phosphor Projector, 4K UHD, 37,500 Center/36,500 ANSI Lumens, No Lens, 3 year warranty
Item #0601-1290 Model #R9008949B

Overview

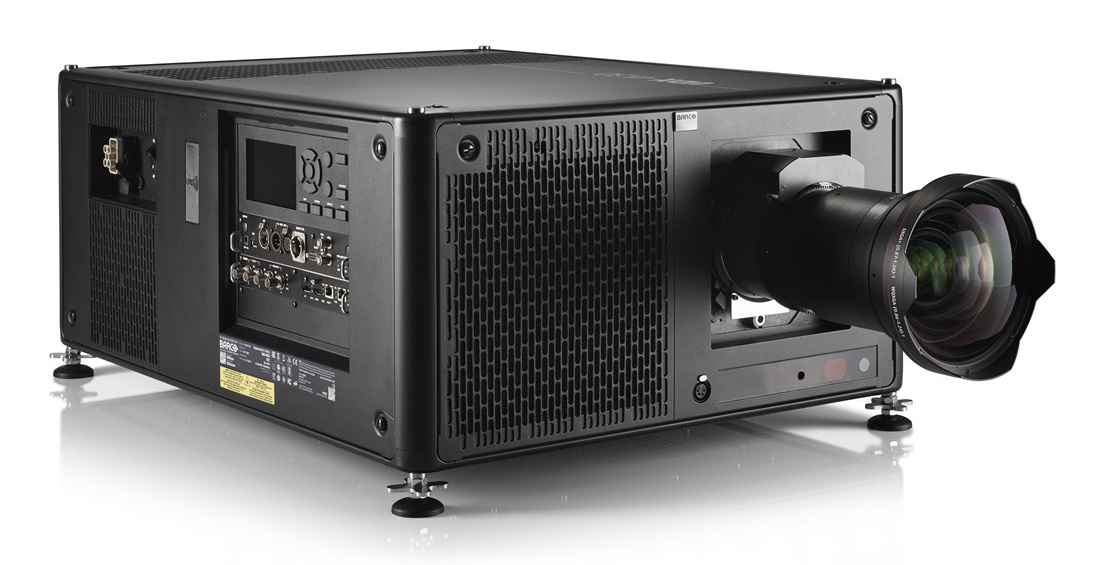

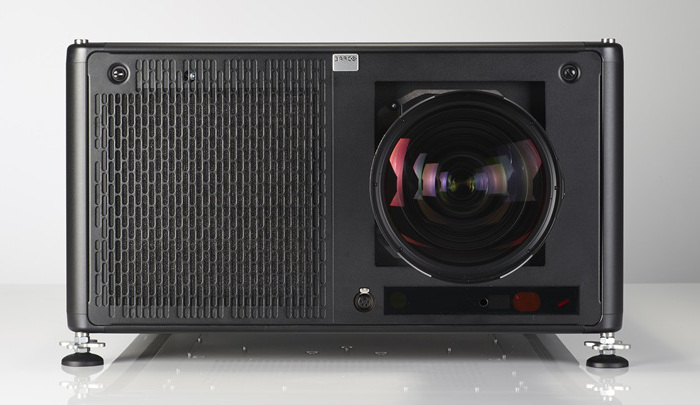

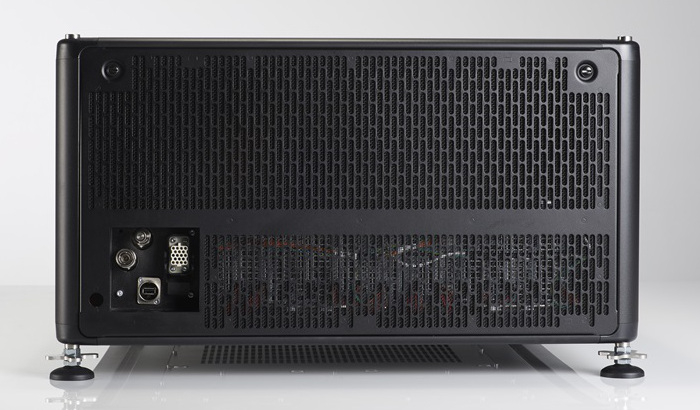

Barco UDX-4K40

37,500 center lumens, 4K UHD 3-chip DLP laser phosphor large venue projector

The Barco UDX-4K40 elevates the standard for projector technology, delivering spectacular 4K UHD visuals while offering remarkable savings on both installation and shipping costs. As part of the UDX range, this 3-chip DLP laser phosphor projector combines compactness and high brightness with integrated cooling, making it the go-to choice for producing razor-sharp 4K images across a variety of events and venues.

With 4K UHD resolution and an impressive 37,500 center lumens light output, the UDX-4K40 ensures that every show dazzles with flawless imagery and vibrant, accurate colors. It also features Constant Light Output (CLO) functionality, providing consistent brightness and color stability over time, offering peace of mind for event organizers and technicians alike.

The UDX platform offers the widest color spectrum in the industry, without compromising on brightness. The UDX-4K40's color quality not only matches the renowned Xenon quality but also outperforms the Rec. 709 color space, ensuring that audiences experience the most lifelike visuals possible.

Ideal for large venues, the Barco UDX-4K40 is not just any 3-chip DLP projector; it's a blend of cutting-edge technology and practical design to ensure top-tier performance, operational efficiency, and cost-effectiveness. Whether it's a concert, conference, or any large-scale event, the UDX-4K40 Barco projector promises an unmatched viewing experience that captivates and engages.

Key Features:

  • Stunning experiences thanks to high-brightness images
  • More lumens from the same format
  • Savings on installation and shipping time
  • Laser phosphor light source for reduced costs
  • 24/7 operation

Features

Cut costs with laser projection

Thanks to their laser phosphor light source, lamp-related costs and maintenance, as well as image flicker, belong to the past. The UDX series delivers a long lifetime and high reliability to ensure minimum downtime. The UDX's compact and rugged design allows you to reduce shipping and labor costs. The modular components can be removed quickly to limit servicing time. You can also reuse your TLD+ lenses.

Pick your brightness and resolution

The unique FLEX feature will allow you to tune and lock your brightness and resolution to a specific show. You'll now need less projectors to cover a wider range of brightness levels and resolutions.

Faster processing for sharper images

The Barco Pulse 4K electronics offer an intuitive interface and flexible user-friendly embedded control software. Its Single Step Processing (SSP) allows for sharper images and less latency.

Specifications

Projector type 4K UHD 3-chip DLP digital projector
Technology 0.9 DMD™ x3
Resolution

3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)
Brightness 37,500 (WQ)/36,500 (4K UHD) center lumens // 36,500 (WQ)/35,500 (4K UHD) ansi lumen // 40,000 ISO
Contrast ratio 2,000:1
Brightness uniformity 95%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1, 1.25-1.6:1, 1.5-2.0:1, 2.0-2.8:1, 2.8-4.5:1, 4.5-7.5:1, 7.5-11.5:1
Optical lens shift V: -100% to +130% / H: ±40% on zoom lenses (memorized)
Color correction P7
Light source laser phosphor with inorganic phosphor wheel
Light source lifetime 20,000 hrs
Optical dowser Digital
Picture-in-picture Two sources simultaneously
Orientation 360°
Sealed DLP™ core standard
DMX 512 standard
WARP Direct adjust OSD + toolset
Image processing Embedded warp & blend
Keystone correction Yes
Integrated web server Yes
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 2 flash up to 240 Hz*
Inputs Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP 1.3); Quad 3G/12G SDI / BarcoLink Ultra
Optional Inputs Quad DP1.2, Fiber SFP input
Input resolutions From NTSC up to 4K (4,096 x 2,160)
Max. pixel clock 600 MHz
Software tools Projector Toolset + Android** app + iOS** app
Control XLR wired + IR, RS232, Wifi** (opt), GSM** (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi** (optional)
Power requirements 120–160 V (reduced power) / 200–240V (±10%), 20A, 50–60 Hz
Max. power consumption 3750 W
Noise level (typical at 25°C/77°F) 58 dB(A)
Operational ambient temperature 0–40°C / 32°–104°F (reduce power >35°C)
Operational humidity 0–80% (non condensing)
Dissipation BTU Max. 12,795 BTU/h
Dimensions
(W x L x H)		 660 x 830 x 350 mm / 25.98 x 32.67 x 13.77 inches
Shipping Dimensions
(W x L x H)		 800 x 1,200 x 685 mm / 31.49 x 47.24 x 26.96 inches
Weight 92 kg (202 lbs) / shipping weight from factory: 110 kg (242 lbs)
Standard accessories Power cord, wireless/XLR wired, rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
Warranty 3 years
