Panasonic TY-WPS1
PressIT Wireless Presentation System
Item #0601-0250 Model #TYWPS1
Overview
Panasonic TY-WPS1
Wireless Presentation System PressIT
PressIT is a Wireless Presentation System that allows easy screen collaboration with the simple press of a button.
No need to install special software or driver. It's easy to use, with convenient and secure features, and supports various communication scenarios.
Increase work efficiency by eliminating troublesome setups and cable clutter.

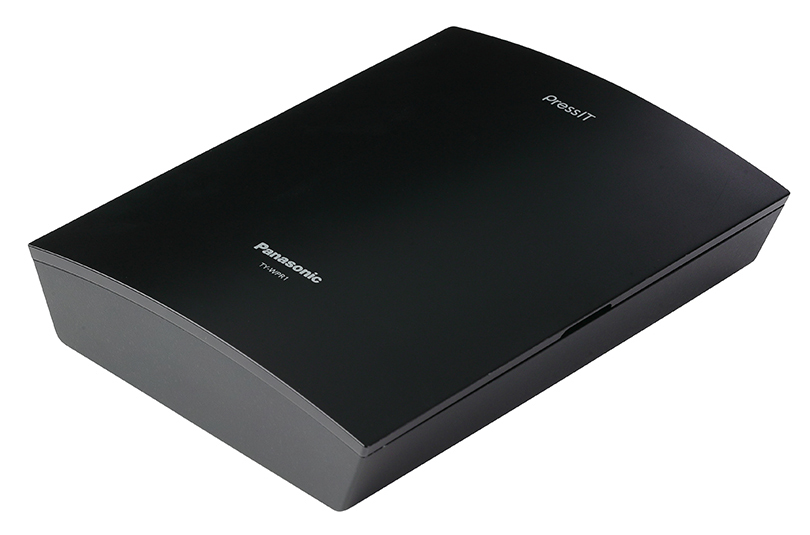

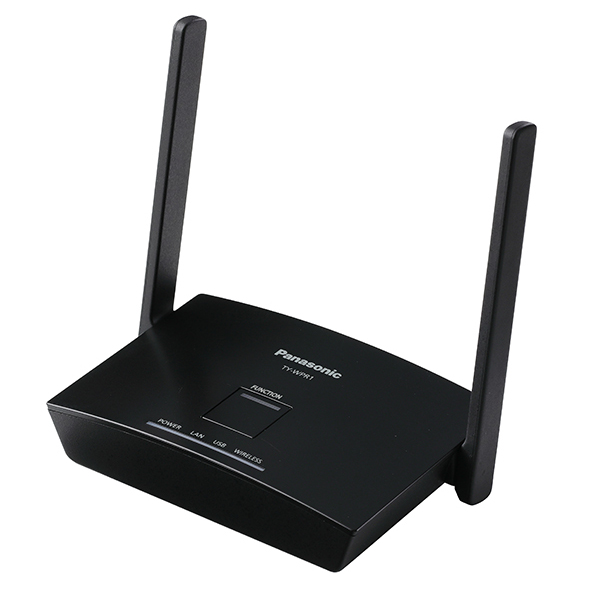

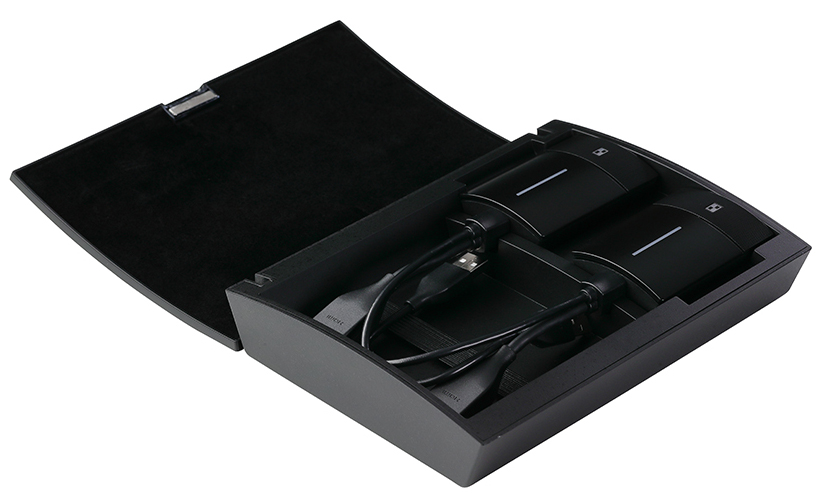

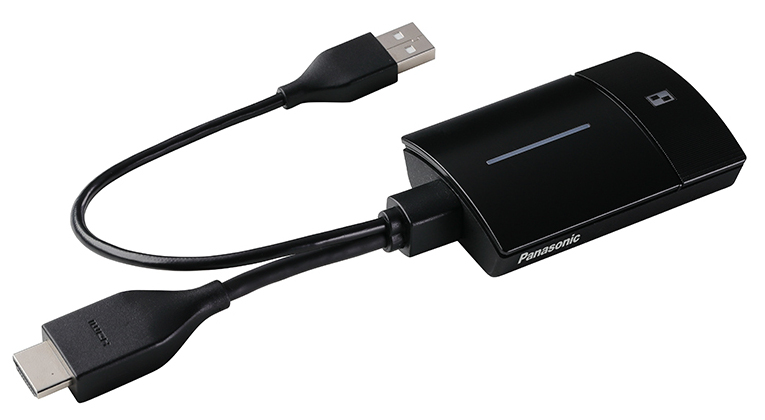

The TY-WPS1 kit includes one receiver (box), two transmitters (HDMI/USB), and one transmitter case.
Features
- Easy Setup: No need for software, driver installation, or network connection. Simply connect a receiver to your display or projector, connect a transmitter to each participant's device (PC, smartphone, tablet, etc.), then push the button on a transmitter to share the screen. You can change presenter with the press of a button.
- Easy Operation with Multi Mode or Lock Mode: Multi Mode lets you presents up to 4 screens in Full HD (supports 4K) to compare and share ideas in discussions and meetings.
- Connects up to 32 transmitters at once: for classrooms, seminars, and group collaborations
- Connects to mobile devices (iOS/iPadOS, Android device): Easy screen sharing with a dedicated app
- Easy Pairing of Receiver and Transmitter: either through direct USB connection, or through a USB memory stick

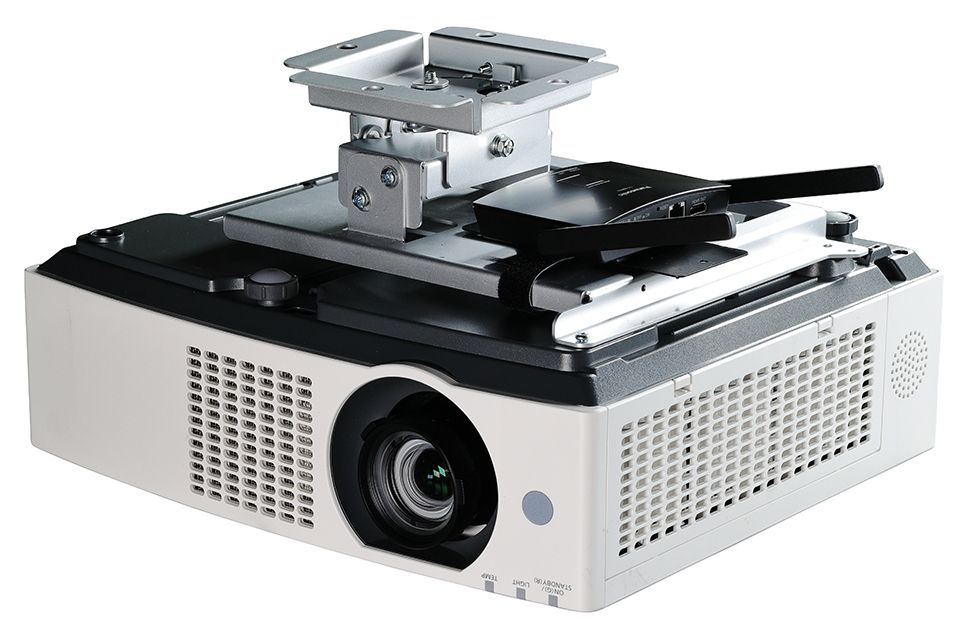

- Compact Design for Smart Installation: Install TY-WPS1 on video display equipment that's wall or ceiling-mounted.
- HDMI-CEC control commands compatible: Linked operation between PressIT and the display/projector provides ability to power the display ON/OFF and to change input signal automatically through the PressIT receiver and transmitter.
- 5V/2A USB power supply compatible: A stylish layout is achieved by securing power from a display or projector that supports 5V/2A USB power supply.
- High quality images: Delay and rattle-less images with Full HD/60 fps provide effective and stress-free presentations.
- Safe and secure standards: WPA2 standard compliant (encrypted data transmission) and 802.11ac 5 GHz (Max. 433 Mbps) compliant for wireless transmission
- Transmitter with antibacterial surface treatment and built-in magnet: A magnet is attached to the back of the transmitter for easy management.
Specifications
| Product | Receiver (Box) | Transmitter (HDMI/USB) | |
|---|---|---|---|
| Max. resolution/ Frame rate | 1920 x 1080/60p (max.), 3840 x 2160/30p (max.) |
1920 x 1080/60p (max.) | |
| Number of simultaneous connections | 32 | — | |
| Number of sources simultaneous on screen | 4 | — | |
| Data Rate | Wired | 10/100/1000 (Mbps) | — |
| Wireless | 867 Mbps (max.) | 433 Mbps (max.) | |
| Frequency band | 5 GHz band 5,150 MHz – 5,250 MHz 36 40 44 48 Channel |
||
| Wireless Communication Standard | IEEE802.11/a/n/ac | IEEE802.11ac | |
| Security | WPA/WPA2 | ||
| Reachable distance (Max distance between transmitter and receiver) |
30 m (When the line of sight/wave conditions are good) | ||

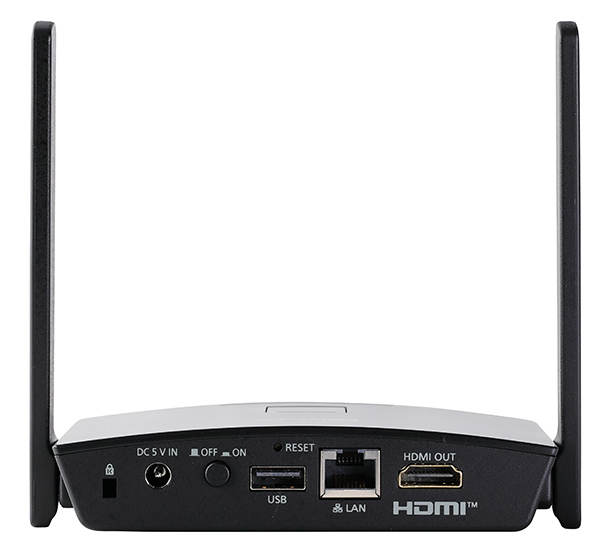

| Connection terminal | HDMI/USB-A (female)/RJ45 (LAN) | HDMI / USB-A (female) / USB-A (male) | |
| Power | DC 5 V/2 A | DC 5 V/0.9 A | |
| Power consumption (During image display) |
10 W | 4.5 W | |
| Environment | Operating | Temperature: 0 °C to 35 °C (32 °F to 95 °F) / Humidity: 20% to 80% (No condensation) | Temperature: 0 °C to 35 °C (32 °F to 95 °F) / Humidity: 20% to 80% (No condensation) |
| Storage | Temperature: -20 °C to 60 °C (-4 °F to 140 °F) / Humidity: 20% to 80% (No condensation) | ||
| Dimensions (W x H x D) | 4.71" x 1.03" x 3.19" (120 x 26 x 81 mm) excluding antenna | 2.0" x 0.8" x 2.86" (51 x 21 x 73 mm) excluding cable | |
| Weight | Approx. 0.4 lb / 181 g | Approx. 0.3 lb / 110 g / | |
Video Tutorials
1. How to setup PressIT
2. How to connect PressIT
3. How to use PressIT
