Epson L1075U
Laser LCD Projector, 1920x1200 WUXGA, 7000 Lumens, Standard Lens, Black, 3 Year 20,000 Hr Warranty
Item #0600-6149 Model #V11H940120
Overview

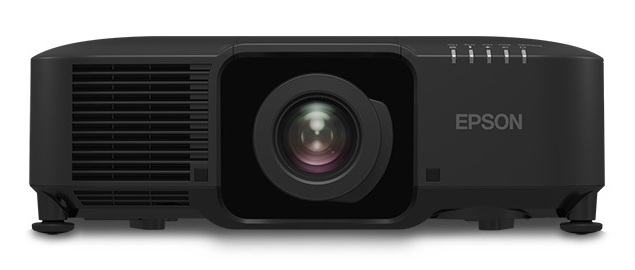

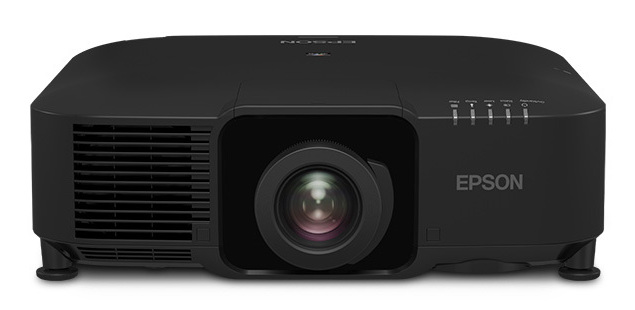

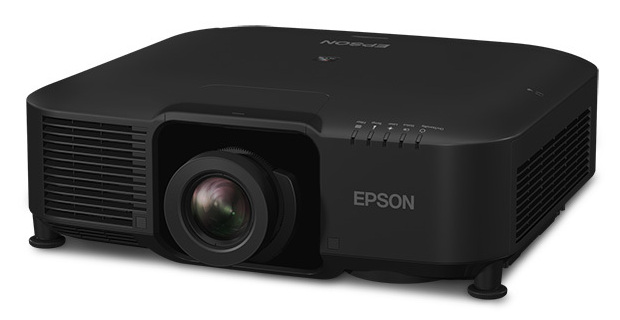

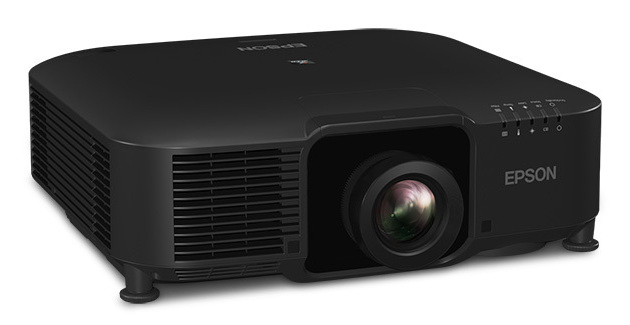

Epson Pro L1075U
Compact WUXGA 3LCD Laser Phosphor Projector with 4K Enhancement
The powerful Pro L1075U, part of Epson’s most compact interchangeable lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology (1920 x 1200 x 2).
The L1075U delivers 7,000 lumens of color and white brightness. With a high contrast ratio and BT.709 color space, this Epson® 3LCD projector produces brilliant, sharp, true-to-life images. The L1075U’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours. It also features 11 optional interchangeable lenses and includes the ELPLM08 standard lens.
Features
Key Features:
- Ultra bright — 7,000 lumens color/white brightness2 from a compact large-venue laser projector
- Exceptional widescreen display — native WUXGA with 4K Enhancement Technology1 (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen
- Vibrant, true-to-life images — with Epson 3-chip 3LCD technology
- Worry-free operation — solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours3
- 11 optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens with zero offset (standard lens included: ELPLM08)
- Lifelike images — high contrast ratio and BT.709 color space for exceptional clarity and detail
Other Features:
- Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
- Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
- Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
- Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
- Web- or network-based remote management — control and monitor projector status
Eco Features
- RoHS compliant
- Recyclable product4
- Epson America, Inc. is a SmartWay™ Transport Partner5
Notes:
1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications Projector:
| Projection System: | High-aperture Epson® 3LCD, 3-chip technology |
| Projection Method: | Front / rear / ceiling mount |
| Driving Method: | Poly-silicon TFT Active Matrix |
| Pixel Number: | 2,304,000 pixels (1920 x 1200) x 3 chips |
| Color Brightness - Color Light Output: | 7,000 lumens2 |
| White Brightness - White Light Output: | 7,000 lumens2 |
| Aspect Ratio: | Supports 4:3, 16:9, 16:10 |
| Resolution: | WUXGA with 4K Enhancement1 (1920 x 1200 x 2) |
| Brightness Uniformity: | 85% |
| Pixel Arrangement: | Cross stripe |
| Contrast Ratio: | 2,500,000:1 (Dynamic Contrast: On) |
| Color Reproduction: | Up to 1.07 billion colors |
| Light Source Life: | 20,000 hours (Normal)3 |
| Laser Type: | Laser Diode |
General:
| Operating Temperature: | 32° to 113° F (0° to 45° C) |
| Power Supply Voltage: | 100–240 V ±10%, 50/60 Hz AC. Requires 200–240 V for full spec. operation |
| Power Consumption: | 439 W (Normal Mode) 313 W (Extended Mode) 2.0 W (Network Standby) 0.5 W (Energy Saving) |
| Dimensions (WxDxH): | 21.5" x 19.1" x 7.4" (545 x 484 x 189 mm) (including feet, with standard ELPLM08 lens) |
| Weight: | 34.4 lb without lens |
| Security: | Security cable hole, Kensington lock provision |
Projection Lens:
| Type: | Powered shift/focus/zoom (ELPLM08 Lens) |
| F-number: | 1.7 – 2.3 (ELPLM08 Lens) |
| Focal Length: | 24.0 mm – 38.2 mm (ELPLM08 Lens) |
| Zoom Ratio: | Optical zoom 1 – 1.6x (ELPLM08 Lens) |
| Throw Ratio Range: | 1.44 – 2.33 (ELPLM08 Lens) |
| Lens Shift: | Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens) |
Projector Details:
| Input Signal: | Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160 |
| Interfaces: |
|
| Fan Noise: | 36 dB (Normal Mode); 32 dB (Medium Mode); 30 dB (Quiet Mode) |
Remote Control:
| Features: | Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functions |
| Operating Distance: | 98 ft |
| Operating Angle: | Right/left: front: ±60 degrees; rear: ±30 degrees Upper/lower: front: +30 to -20 degrees; rear: +50 to +10 degrees |
What's In The Box:
- Pro L1075U projector
- ELPLM08 lens
- power cable
- cable cover
- projector remote control with batteries
- Quick Setup Sheet
Notes:
1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
Accessories
Optional Lenses
| Model: | ELPLX01 ELPLX01S |
ELPLU03 ELPLU03S |
ELPLU04 | ELPLW05 | ELPLW08 | ELPLM08 Std Lens |
ELPLW06 |
ELPLM09 |
ELPLM10 | ELPLM11 | ELPLL08 |
| Price: |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA 0.76" chip |
0.35:1 | 0.65–0.78:1 | 0.87–1.05:1 | 1.04–1.46:1 | 1.18–1.66:1 | 1.44–2.32:1 | 1.62–2.22:1 | 2.16–3.48:1 | 3.32–5.06:1 | 4.85–7.38:1 | 7.21–10.11:1 |
| F/stop | 1.9 | 2.0–2.26 | 2.0–2.1 | 2.0–2.2 | 2.0–2.2 | 1.7–2.3 | 1.8–2.3 | 1.8–2.35 | 1.8–2.4 | 1.8–2.4 | 1.8–2.5 |
| Max Lumens | 8,500 | U03 12,000 U03S 20,000 |
20,000 | 10,500 | 20,000 | 8,500 | 20,000 | M09 12,000 M15 20,000 |
20,000 | 20,000 | 20,000 |
| Notes | ELPLX01 is discontinued. ELPLX01S has a mounting point for the ELPEC01 external camera |
ELPLU03 is discontinued. |
ELPLW05 & ELPLM08 are more cost effective if within light output limits. |
ELPLM09 is discontinued. |
Other Accessories
 |
Ceiling mounts | |
 |
Replacement air filter (ELPAF46) |
Add to Cart |
 |
HDBaseT transmitter (ELPHD01) |
|
