Epson PowerLite 725W

Laser LCD Projector, WXGA, 4000 Lumens, D:W 0.28:1 UST
Item #0600-4273 Model #V11H999520

Overview

Epson BrightLink 725W

WXGA 3LCD Ultra-Short Throw Laser Display

Enhance engagement in today’s classrooms with eye-catching, easy-to-read images using the ultra bright Epson PowerLite 725W WXGA 3LCD ultra-short throw laser projector. Designed to maximize classroom collaboration and productivity, this dynamic 4,000-lumen projector displays captivating 16:10 resolution images up to 120" diagonal with virtually no shadowing from nearly anywhere in the room.

Offering exceptional image quality at a remarkably low cost, the PowerLite 725W classroom projector provides 120" displays—over 2.5 times larger than 75" panels.  A flexible, easy-to-use solution, the Epson PowerLite 725W makes classroom projection more convenient than ever with built-in wireless, Instant On activation and a virtually maintenance-free, 20,000-hour laser light source with no lamps to replace.

Key Features:
  • 4,000 lumens of color and white brightness
  • WXGA 16:10; projects up to 120" diagonal
  • 20,000-hour laser light source with no lamps
  • At 120", over 2.5 times the display size of 75" panels
  • Instant On laser light source

(Model: V11H999520)

Features

  • Ultra bright: 4,000 lumens of color and white brightness1
  • Large, easy-to-read images: WXGA 16:10 resolution for true to life images up to 120" diagonal
  • Large display size: Provides displays over 2.5 times larger than 75" panels when projecting at 120"
  • Laser light source life: Virtually maintenance-free 20,000-hour laser light source with no lamps2
  • Time-saving operation: Displays in seconds with Instant On laser light source
  • Convenient ultra short-throw design: Virtually eliminates shadowing
  • Easy replacement of PowerLite 585W/685W series: Using existing wall mount
  • Built-in 5 GHz wireless: supports Miracast® and wireless displays via Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices3
  • Built-in split screen4 : Allows simultaneous display of up to four connected devices
  • Powerful 16 W speaker: Fills your classrooms with rich sound

Eco Features

  • Recyclable product5
  • RoHS compliant
  • Epson America, Inc. is a SmartWaySM Transport Partner6

What's In The Box:

  • PowerLite 725W ultra short-throw laser projector
  • Quick Start Guide
  • 6' power cable
  • Projector remote control
  • Two (2) AA batteries (for remote)
  • Feet
  • Password protect sticker
Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

4 Split Screen feature requires remote control. Consult your user manual for input combinations.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.



Specifications

Specifications:

Projection System: Epson® 3LCD, 3-chip technology
Projection Method: Front/rear/wall mount/table mount
Driving Method: Epson Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Color Brightness1 - Color Light Output: 4,000 lumens
White Brightness1 - White Light Output: 4,000 lumens
Aspect Ratio: 16:10 (WXGA)
Native Resolution: 1280 x 800
Light Source: Laser
Light Source Life2:  Up to 20,000 hours
Size (Projected) (16:10)  65 – 120"
Keystone Correction (Manual): Vertical:     ± 3 degrees
Horizontal: ± 3 degrees
USB Plug ’n Play Mac OS® 10.8/10.9/10.10/10.11/10.12/ 10.13/10.14/macOS 10.15.x
USB Plug ’n Play for Windows® Windows 7/Windows 8/ Windows 10
Contrast Ratio: Over 2,500,000:1
Color Reproduction: Up to 1.07 billion colors

Wireless Specifications:

Supported Security Mode: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Supported Speeds: IEEE 802.11b: 11 Mbps* (2.4 GHz)
IEEE 802.11g: 54 Mbps* (2.4 GHz)
IEEE 802.11n: 72.2 Mbps* (2.4 GHz)
IEEE 802.11a: 54 Mbps* (5 GHz)
IEEE 802.11n: 150 Mbps* (5 GHz)
IEEE 802.11ac: 325 Mbps* (5 GHz)
*Maximum speed and range is achievable when used with the same Enhanced Mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

Projection Lens:

Type: Manual focus
F-number: 1.6
Focal Length: 3.7 mm
Throw Ratio: 0.28:1 (16:10)
Zoom Ratio: Digital zoom 1.0 – 1.35x

Other Features:

Speaker: 16 W monaural
Operating Temperature: 41° to 104°F (5° to 40°C)
Power Supply Voltage: 100 – 240 V AC ± 10%, 50/60 Hz
Power Consumption: Normal Mode:          267 W
Quiet Mode:             206 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W
Fan Noise: Normal Mode: 36 dB
Quiet Mode:    26 dB
Security: Kensington lock provision, security anchor bar, password-protection function

Dimensions:

W x D x H: 14.1" x 15.6" x 5.25" (358 x 396 x 133 mm) excluding feet
Weight: 12.5 lb (5.7 kg)

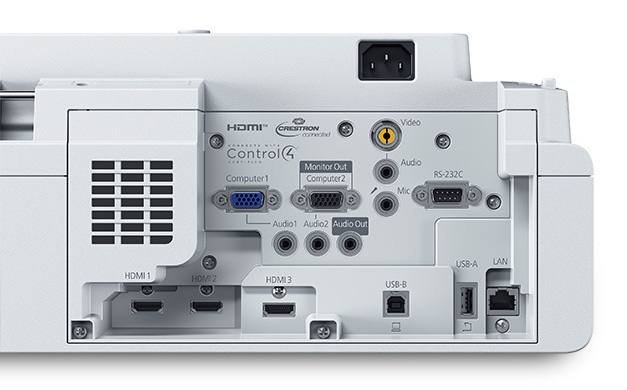

Interfaces:

Input/Output HDMI®: 3x
DS 1 Computer/Component Video: 2x D-sub 15 pin
Composite Video: 1x RCA (Yellow)
Audio In: 3x Mini stereo
Audio Out: 1x Mini stereo
Microphone in: 1x Mini stereo
USB Connector: 2x Type A ( (1x USB memory/document camera; 1x supports wireless LAN module ELPAP11)
USB Connector: 1x Type B (USB display, audio and mouse)
Wired LAN: 1x RJ-45
Serial: 1x RS-232c
Monitor Out/Computer: 1x D-sub 15 pin
Integrated Wireless LAN: Wireless 802.11b/g/n (2.4GHz), 802.11a/n/ac (5GHz)

Remote Control:

Features: Computer, HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, ESC, ID, User, Default, Home, Split
Operating Distance: 19.7 ft (6 m)
Operating Angle: Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

Warranty

3-year projector limited warranty

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
