Barco's compact and powerful HDX-W18 WUXGA 3-Chip DLP digital projector combines full source flexibility with ImagePRO scaling capabilities. Thanks to its Xenon illumination and high contrast optical engine, this WUXGA resolution 3-chip DLP projector reproduces rich colors, presenting audiences with crisp and vivid images on every occasion, with 18,000 lumens of brightness. What's more, the simple user interface allows you to set up the projector in no time. Finally, the Barco HDX-W18 offers easy control through smartphones and tablet computers.

Quick preview

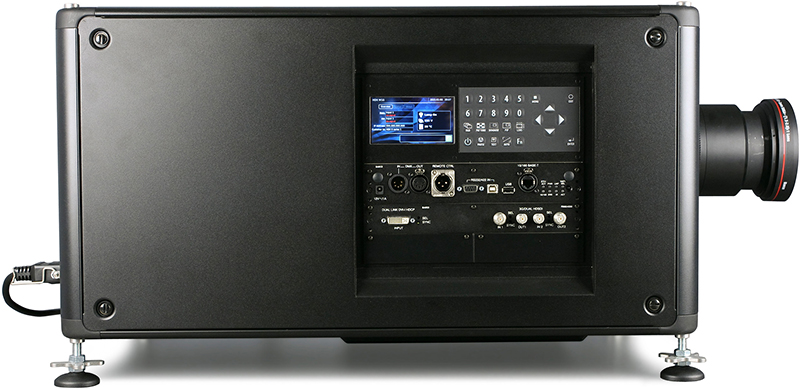

The HDX-W18's built-in color LCD screen provides you with all the information you need on your projector's status and allows you to preview your connected sources.

3G-compatibility
The HDX-W18 has a native 3G HD-SDI/SDI input, which makes it compatible with progressive sources over a single BNC cable. This also means that the Barco HDX-W18 allows for digital inputs that don't come through fragile DVI fiber cables.

Wireless control
Barco's HDX platform is designed for wireless control. Whether from one central PC or with a smartphone or tablet computer, you remain connected to the HDX at all times.

Only five building blocks
Designed with efficiency and quick setup in mind, the HDX-W18 features just five building blocks that can be removed and replaced quickly. Thanks to its compact design, the HDX-W18 Barco DLP projector can easily be boxed, shipped and fit into standard flight cases.

Fast signal distribution
Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Choose your brightness with HDX Flex
The HDX-W18 Barco projector is also available with light-on-demand option. Thanks to this technology, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 10,000 lumens up to 20,000 lumens in 2,000 incremental steps. In this way, rental companies have more flexibility to offer their customers the light output they want.

Projector type: WUXGA 3-Chip DLP digital projector
Technology: 0.96" DMD x 3
Resolution: 1,920 x 1,200 (WUXGA)
Brightness: 18,000 Center lumens / 16,500 ANSI lumens
Contrast ratio: 1,850:1 (standard) - 2,400:1 (high contrast mode)
Brightness uniformity: 90%
Aspect Ratio: 16:10
ScenergiX: Horizontal and vertical edge blending
Lens type: TLD +
Lenses: 0.73:1 ; 1.2:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift: Vertical: -10% to + 110% / Horizontal: +/-30% on zoom lenses (memorized)
Color correction: P7
Lamps: 2.5 kW xenon
Lamp lifetime: 1,000 hours
Transport with lamp: Yes
Lamp house, quick replace: Yes
Customer bulb replace: Yes
Lamp warranty (field replace/ factory replace): 90 days, 500 hours/pro rata 750 hours
Sealed DLP™ core: Standard
Optical dowser: Standard
Picture-in-picture: Two sources simultaneously
Orientation: table - ceiling - side (portrait)* - vertical * lamp door down/bottom
DMX 512: standard
WARP: direct adjust OSD + toolset
Integrated web server: yes
CLO (constant light output): Standard
3D: active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz
Inputs: DVI- I (HDCP including analog RGB YUV), SDI/HDSDI/dual HDSDI/3G/BarcoLink
Optional Inputs: 5-BNC RGBHV ( RGBS/RGsB, YUV CS/SOY, Composite video, S-Video); DVI - I (HDCP including analog RGB YUV) + BarcoLink/SDI/HDSDI/dual HDSDI/3G; 3D active input (HDMI/ DisplayPort) feat. SENSIO 3D
Input Resolutions: From NTSC up to QXGA (2,048 x 1,536)
Max. pixel clock: 200 MHz
Software tools: Projector Toolset + Android app
Control: XLR wired, IR, RS-232, DMX512 in/out, integrated web browser, Projection Toolset, optional control over WiFi and GSM/mobile
Network connection: 10/100 Mb/s Ethernet (on RJ45), WiFi
Power requirements: 200-240 V / 50-60 Hz
Power consumption: 2,850 W / STBY<8W
Noise level (typical at 25°C/77°F): 53 dB (A)
Operating temperature: 0 ~ 40°C / 32 ~ 104°F
Operational humidity: 0-80% (non condens)
Dissipation BTU: Max. 9725 BTU/h
Dimensions (WxLxH): 18.70" x 28.54" x 14.96"
Weight: 110lbs
Shipping Dimensions: 35.43" x 25.59" x 22.04"
Standard accessories: Power cord; wireless/XLR wired rugged remote control
Certifications: Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

Lenses

• TLD+ (0.38:1 WUXGA) (0.40:1 SXGA+) R9801661
• TLD+ (0.65-0.85:1 WUXGA) (0.71-0.92 SXGA+) R9862001
• TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+) R9862000
• TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+) R9840775
• TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+) R9862005
• TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+) R9862010
• TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+) R9862020
• TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+) R9862030
• TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+) R9862040
• TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+) R9829997

Input modules

• R9864140 3D input module feat. SENSIO® 3D technologies
• R9864010 HDX five-cable input
• R9864000 HDX input 3G+DVI+RGBHV

Accessories

• R9871022 3rd-party TLD lens adapter
• R5001170 Service kit for HDX projectors
• R5001173 Service kit for Barco's HD projectors
• R9864070 HDX carry handle bottom
• R9864060 HDX carry handle top
• R9864090 HDX flight case
• R98010085 HDX HD hepa filter
• R9864230 HDX Infitec 3D kit
• R9864080 HDX touring kit (This option combines R9864070 and R9864060 in one bundle)
• R9864110 HDX wi-fi module
• R9864130 HDX-W14 spare lamp house
• R852012K IR remote control XLR
• R9854425 Lamp replacement tools and safety kit (includes training)
• R9864050 Projector adapter plate
• R9850559 All-in-one remote projector management software
• R9801079 Safety cable for TLD+ lenses

Others

• R9801148 Front and rear lens cover for all TLD+ lenses (excl. 0.73 and 4.5-7.5 lenses)
• R9801149 Front and rear lens cover for TLD + 4.5 -7.5 lens
• R9801147 Front and rear lens cover for TLD +0.73 lens
• R9864030 HDX cell phone module
• R9864300 Choose your projector brightness

Lamps

• R9801007 Ushio 2500W PXL-25BA3

Options

• R9827341 CM-100 Ceiling mount with pulley
• R9898359 FLM Ceiling Mount CM-100 Adapter Plate



• Specs
• Quick Start Guide
• HDX Installation Manual

Barco HDX-W18 3-DLP Projector, 1920x1200, 18K Lumens, No Lens, B Stock, 3 Year Warranty

S/N (Last Digits)	Usage Hours	Condition Notes	Price
48228	671 Runtime, 746 Xenon Lamp	Good; Top area scratched, paint missing, dent on top / side frame	$17,500.00	Add to Cart
48227	665 Runtime, 741 Xenon Lamp	Excellent; Few marks / scratches	$17,900.00	Add to Cart
46079	561 Runtime, 567 Xenon Lamp	Excellent; Slight paint missing on edge	$18,000.00	Add to Cart
TBD (1 item)		TBD	TBD	Add to Quote
