Cmax FN120HUST
120" UST ALR Wall Screen
Item #0400-9601 Model #FN120HUST
Specifications
Cmax FN120HUST
120" UST ALR Wall Screen

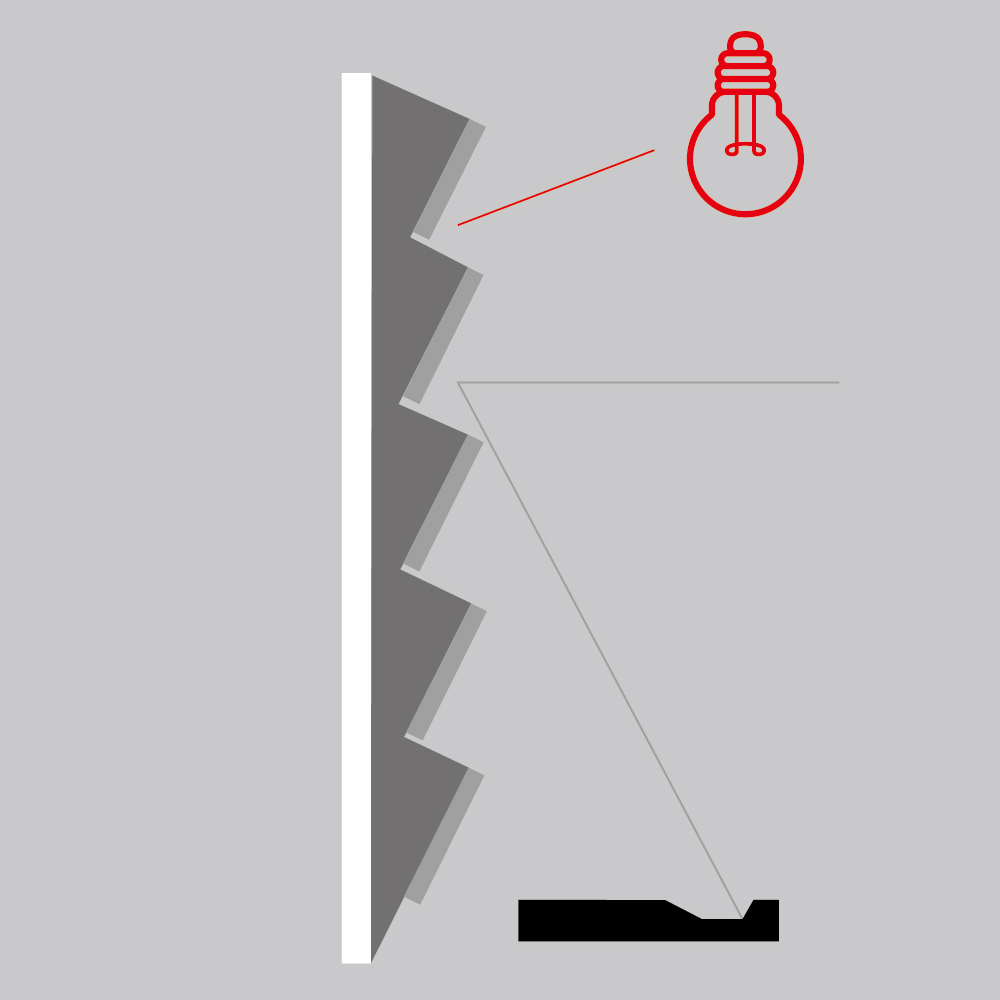

The FN120HUST is a fixed-frame wall screen with ambient light rejecting (ALR) surface designed for use with ultra-short throw projectors. The ALR structural design of the screen's material allows viewing with the lights on, while also enhancing image contrast. The screen is fabricated in an ISO-9001 certified factory.

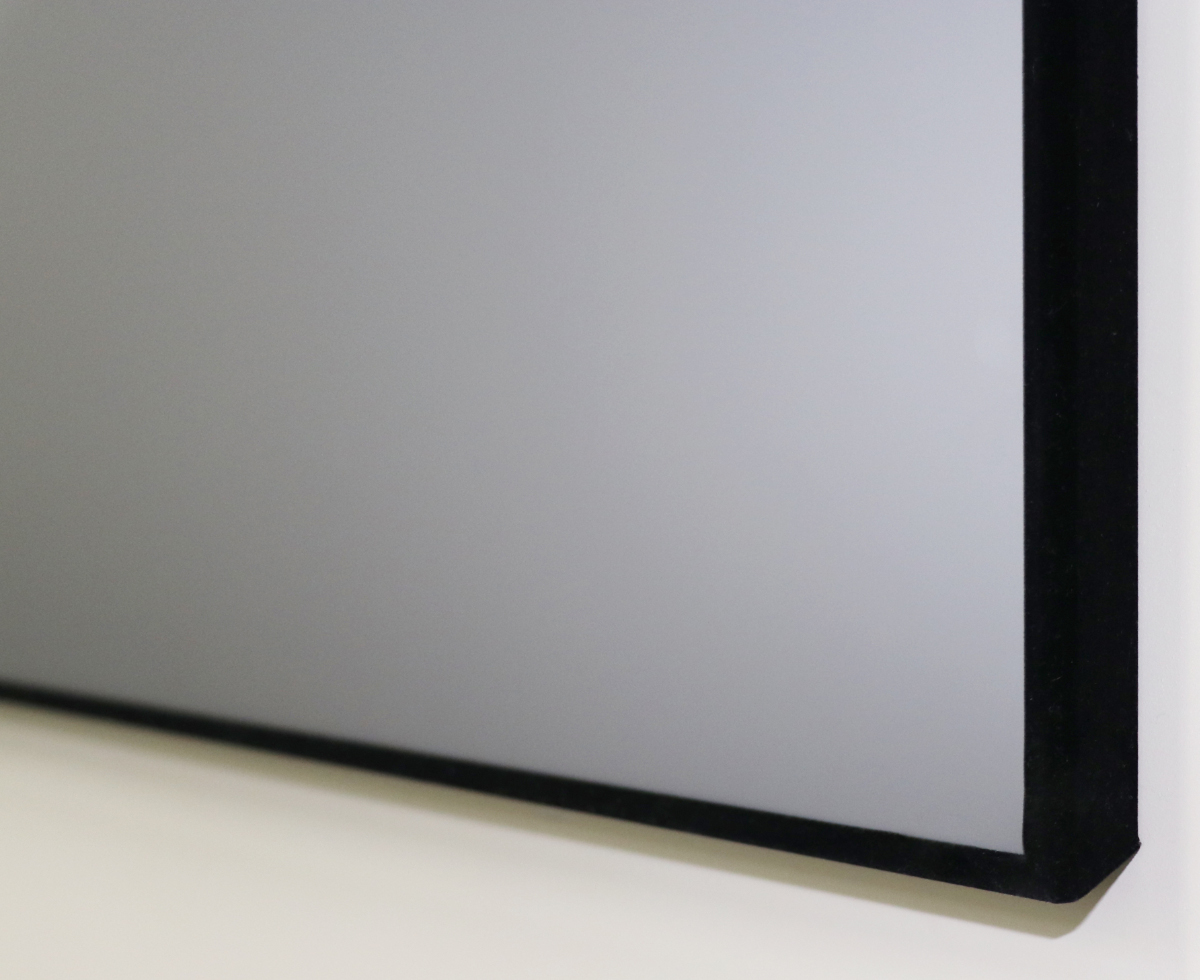

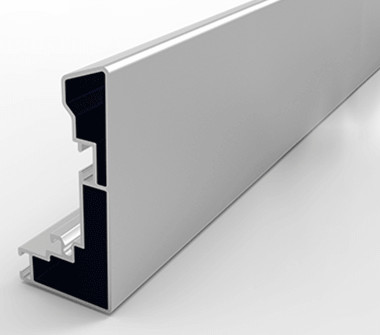

An ultra-thin aluminum frame and unique spring tension system ensure that the screen is as flat as a mirror. The frame is wrapped in black velvet for an added touch of elegance.
Suggested projector brightness: 4,000 lumens
Specifications
| Size | 120" diagonal |
| Format | 16:9 |
| Viewing Area (HxW) | 58.8" x 104.6" (1494 x 2656 mm) |
| Black Border |
0.28" (7 mm)
|
| Thickness |
28 mm
|
| Gain Value |
0.35 ± 0.05
|
|
Contrast (lights-on environment)
|
> 10
|
|
Ambient Light Rejecting Rate
|
> 95%
|
| Horizontal Viewing Angle |
140 degrees
|
| Environmental Limits |
High temperature storage: 60°C x 72 hr
Low temperature storage: -20°C x 72 hr
High temperature/high humidity: 60°C x 95%RH X 72 hr
Thermal shock: -20°C x 3 hr/60°C x 3 hr @ 6 cycles
|
