Factor HD-4x4
Factor Electronics HDMI distribution accessories are professional tools used in homes, restaurants, schools, houses of worship, retail stores, and anywhere high definition audio and video signals are needed. Factor Electronics HDMI accessories overcome the maximum distance limitation of HDMI cables and provide true 1080p video and 7.1 audio at distances up to 130 feet. All Factor Electronics HDMI distribution accessories are HDCP compliant plus they're easy to install and operate.

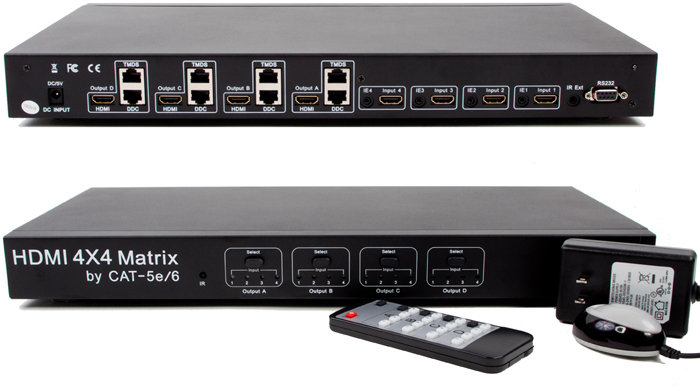

HD-4x4
Features:
  • Distribute four high-definition HDMI signals to four HDMI enabled displays
  • Any source to any display simultaneously
  • HD-4x4 matrix kit includes:
    • (1) HD-4x4 matrix
    • (4) HDMI receiver baluns with power supplies
    • (5) remote controls
    • (5) infrared receivers
  • Provides infrared control of the matrix, baluns, and source equipment
  • Provides complete RS232 control for integration with master control systems
  • Outputs are provided on HDMI connectors or two RJ45 connectors
  • Maximum output distance using HDMI outputs is 15 meters or 50 feet per zone
  • Maximum output distance using Cat5e or Cat6 cables is 40 or 130' meters per zone
  • True 1080p video and 7.1 high-definition audio (supports 480i, 576i, 1080i, 480p, 576p, 720p, 1080p)
  • Supports uncompressed audio (LPCM)
  • Supports compressed audio including DTS Digital, DTS-HD, and Dolby Digital, including Dolby True-HD
  • 12Bit deep color (per channel) 36Bit deep color (all channels)
  • HDMI 1.3b compliant
  • HDCP compliant (high bandwidth digital content protection)
  • 24 Karat gold plated contacts
  • 17.36" x 1.77" x 7.95" (W x H x D)

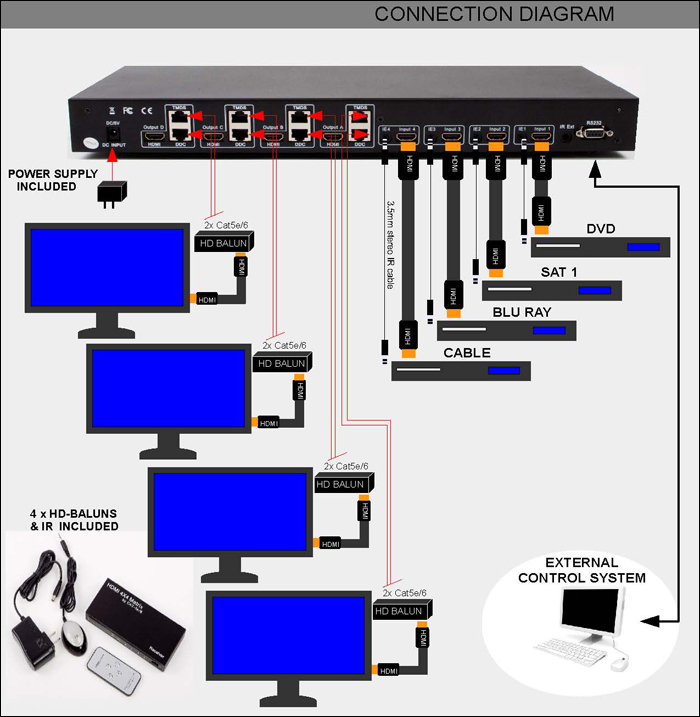

Connection Diagram
Factor Electronics

We can provide expert advice on the products we sell and we also offer free technical support to our customers.



View Larger Images

HD-4x4 Owner's Manual PDF Document		 Call or Email for Price
