Adjustable
VCR Mount for Jumbo 2000
|
|
 |
Adjustable
in both height and width, this Jumbo 2000 accessory holds most front-loading
VCRs. Available in a standard or security (features tamper resistant adjustment
screws) version. Attachment is easily. TV removal is not required.
|
| Features: | |
"Clamp style" adjustable height and width |
Heavy gage steel construction |
|
Foam pads to protect VCR |
Black fused epoxy finish |
|
Theft resistant screws (SVPM models) |
Mounting hardware included |
|

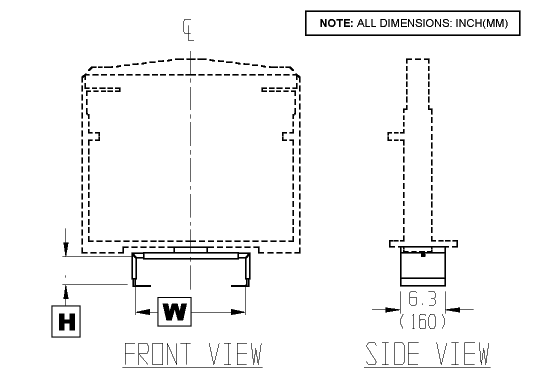

TECHNICAL DATA
|
 |
|
MODEL# |
INSIDE DIMENSIONS | WEIGHT | SHIP. WEIGHT |
MAX. LOAD |
|||||
| WIDTH (W) | HEIGHT (H) | ||||||||
| min. | max. | min. | max. | ||||||
| VPM 40-J | 13.25 (337) |
17.25 (438) |
3 (76) |
4.5 (114) |
5.2 (2.4) |
6 (2.7) |
50 (23) |
||
| SVPM 40-J | 13.25 (337) |
17.25 (438) |
3 (76) |
4.5 (114) |
5.2 (2.4) |
6 (2.7) |
50 (23) |
||
NOTES: ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) MATERIAL: COLD ROLLED STEEL FINISH: BLACK FUSED EPOXY SECURITY: VPM MODELS FEATURE PHILLIPS HEAD ADJUSTMENT SCREWS. SVPM MODELS FEATURE SPECIAL THEFT-RESISTANT ADJUSTMENT SCREWS |
|||||||||
| ARCHITECT
SPECIFICATIONS The VCR Mount shall be a Peerless model ____ Adjustable VCR Mount for Jumbo 2000. It shall be designed to surround and clamp the VCR. It shall include all mounting hardware for attachment to a Peerless Jumbo 2000 TV mounting bracket. It shall be constructed of heavy gage cold rolled steel and finished in scratch resistant black fused epoxy. It shall feature theft-resistant security screws (SVPM models only). Assembly and installation shall be done according to the instructions provided by the manufacturer. |
| COMPONENTS included with an Adjustable VCR Mount for Jumbo 2000 |
|
 |
|
 |
UL
Listed
