Jumbo
2000™ Bracket You may wish to purchase the Jumbo 2000 bracket only (as opposed to a complete Jumbo 2000 ceiling or wall kit) to be attached to an existing fixture or combined with one of several fixtures that can be ordered separately. |
| Features: | |
Models available for 13" to 42" standard TVs and monitors |
360° swivel action |
|
Easy assembly and quick connect
installation |
Top and front roll out protection |
|
Adjustable tilt (0° to 30°) for optimal viewing |
Black fused epoxy finish |

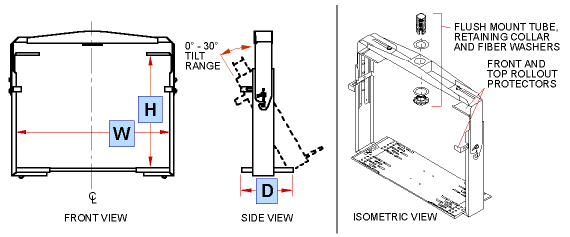

| TECHNICAL DATA: | COMPONENTS: |
 |
| JUMBO 2000 BRACKETS FOR STANDARD MONITORS | ||||||||
| MODEL# | MONITOR **SIZE |
W | H | D | WEIGHT | SHIPPING WEIGHT |
||
| JM 2630 | 13"-17" | 13.5-21 (343-533) |
11.4-17.7 (290-450) |
10 (254) |
20 (9) |
27 (12) |
||
| JM 2640 | 19"-21" | 18-26 (457-660) |
14.2-20.4 (361-518) |
10 (254) |
22 (10) |
30 (13.6) |
||
| JM 2650 | 25"-27" | 24-31 (610-787) |
19.2-25.4 (488-645) |
10 (254) |
24 (10.9) |
35 (16) |
||
| JM 2660 | 30"-36" | 29-36 (737-914) |
24.2-30.4 (614-772) |
14 (356) |
37 (16.8) |
42 (19) |
||
| JM 2670 | 37"-42" | 34-41.3 (864-1050) |
29.2-35.4 (742-900) |
14 (356) |
40 (18) |
49 (22.2) |
||
| NOTES: | |
| ALL DIMENSIONS: IN. (MM), ALL WEIGHTS: LB. (KG.) | |
| MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY | |
| DEPTH OF MONITOR WILL EXCEED DEPTH OF SUPPORT TRAY [D] AND WILL OVERHANG THE BACK EDGE. | |
| ** | MONITOR SIZE USED AS A GENERAL GUIDE. TO DETERMINE CORRECT MODEL TO ORDER MEASURE YOUR SET. |
| FOR A COMPLETE ASSEMBLY THE JUMBO 2000 BRACKET MUST BE COMBINED WITH AN EXISTING (ON SITE) MOUNTING FIXTURE OR A PEERLESS MOUNTING FIXTURE. | |
| MAXIMUM LOAD WILL VARY DEPENDING ON THE MOUNTING FIXTURE USED AND THE MOUNTING SURFACE TO WHICH THE ASSEMBLY IS ATTACHED. |
