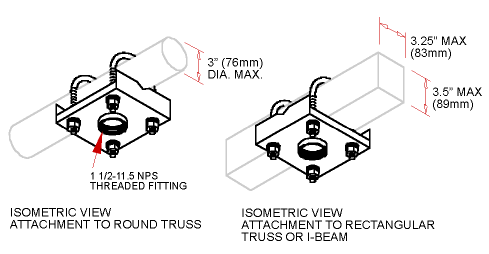

Combine this ceiling fixture with a mount
when a truss interface is required. Attaches to a rectangular I-beam or
cylindrical ceiling truss. Extension Column and flush mount tube compatible.
|
||
LISTED| TECHNICAL DATA: |
 |
| MODEL# | WEIGHT | SHIPPING WEIGHT | MAXIMUM LOAD | |
| ACC 557 | N/A | N/A | 1200 LB. (544 KG.) |
| NOTES: MATERIAL: COLD ROLLED STEEL, FINISH: BLACK FUSED EPOXY MAXIMUM LOAD IS THE COMBINED WEIGHT OF ALL ATTACHED HARDWARE AND COMPONENTS *LIST PRICE SHOWN, SUBJECT TO CHANGE WITHOUT NOTICE |
| ARCHITECT SPECIFICATIONS: The ceiling fixture shall be an ACC 557 Truss Ceiling Adapter, or equivalent, and shall be mounted where indicated on the plans. It shall be used in combination with a equipment specified as compatible by the manufacturer. It shall be constructed of heavy gage cold rolled steel and finished in black fused epoxy. It shall be UL Listed. Assembly and installation shall be done according to the instructions provided by the manufacturer. |

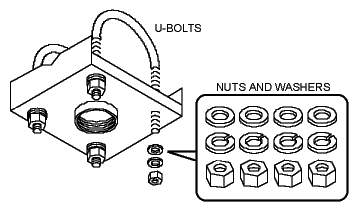

| COMPONENTS: |
 |
 |
